Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour NEX
-
Groupset Acera -
Suspension Hardtail -
Motor Bosch 600W 40Nm mid-drive -
Battery BOSCH POWERPACK 400 WH -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al 6061 T6 Polished welding
Suspension Fork
SUNTOUR NEX-E25, LO, 63 MM, POSTMOUNT
Drivetrain
Rear Derailleur
SHIMANO ACERA RD-M360 SGS
Shift Levers
SHIMANO ACERA SL-M360 8V
Cassette
SHIMANO HG31 11 X 32 8V
Crank
Aluminium, 170 mm, 38 teeth
Chain Guide
SKS CHAINBLADE
Wheels

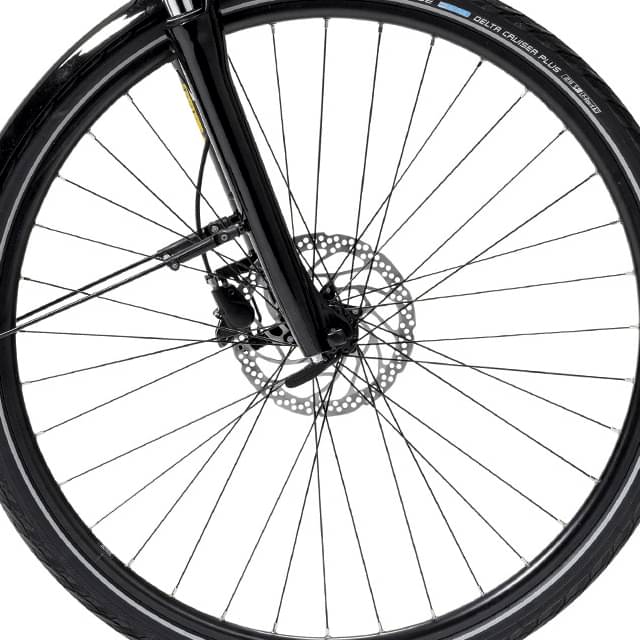

Front Hub
SHIMANO TX505 CENTERLOCK 36T
Rear Hub
SHIMANO TX505 CENTERLOCK 36T

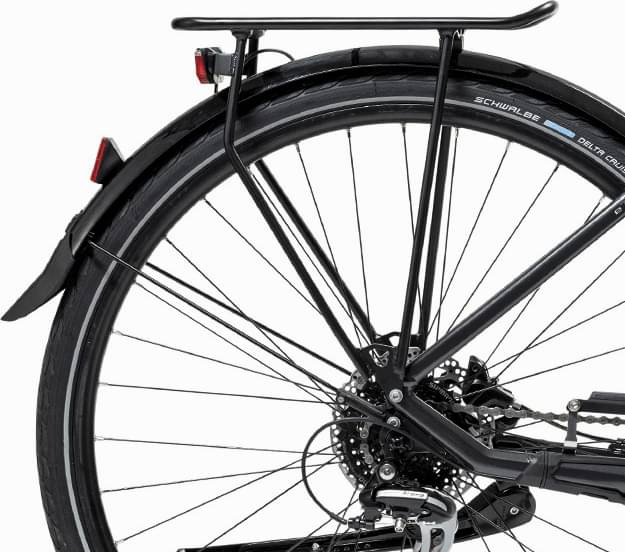

Tires
SCHWALBE DELTA CRUISER PLUS 40-622
Brakes
Brakes
SHIMANO MT201, 180 / 160 MM
Cockpit
Stem
Aluminium 90 x 31,8 adjustable 0°-90°
Handlebar
ALUMINIUM 620 X 79 X 31,8 X 38°
Seat
Saddle
Royal Essenza
Seatpost
Tec Obvius 27,2 x 350 mm
Motor & Battery
Motor
Bosch Active
Battery
BOSCH POWERPACK 400 WH
Charger
2AH (100-240V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 558 mm | 575 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 355 mm | 355 mm | 355 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Front Travel | 40 mm | 40 mm | 40 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
