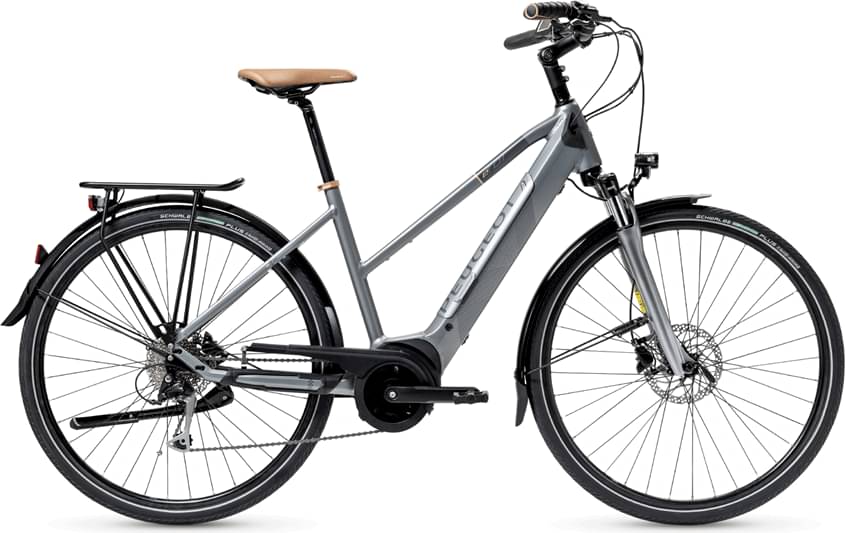

peugeot eT01 D9 Mixt PowerTube 2024
2024 E-bike
Weight | 24.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerTube 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Al 6061 T6 Hydroformed, belt compatible
Suspension Fork
Suntour NEX-E25, hydraulique, 63 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-T4000-SGS
Shift Levers
Shimano Alivio, SL-M4000, 9V
Cassette
Shimano CS-HG400-9, 11-32T
Crank
Aluminium, 170 mm, 38 teeth
Chain Guide
SKS Chainblade
Wheels
Front Hub
Shimano TX505 Centerlock 36T
Rear Hub
Shimano TX505 Centerlock 36T
Rims
Mach 1 Aluminium - 622 x 19C
Tires
Schwalbe Energizer Plus, PunctureGuard
Brakes
Brakes
Shimano MT201 180 x 160 mm
Cockpit
Stem
Aluminium 90 x 31,8 adjustable 0°-90°
Seat
Saddle
Royal Essenza
Seatpost
Aluminium 27,2 x 350 mm
Motor & Battery
Motor
Bosch Active Line Plus
Battery
Bosch PowerTube 400 Wh
Charger
2A (100-240V)
