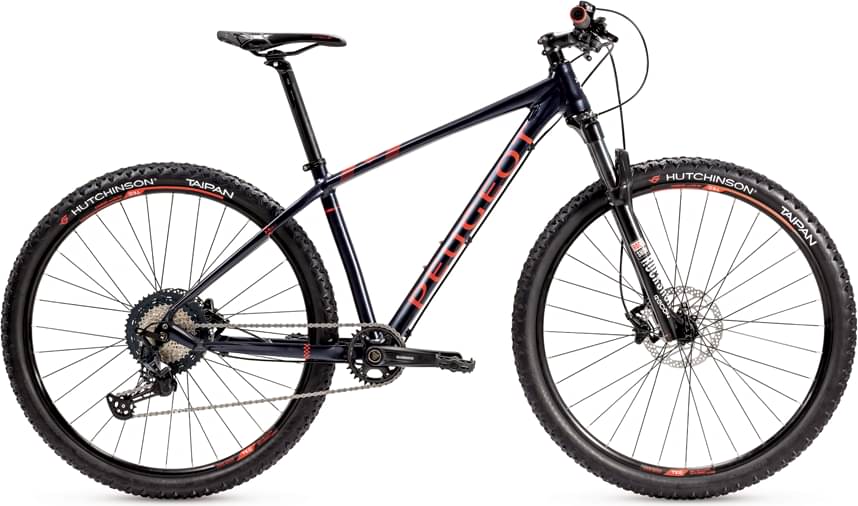

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 47mm -
Fork RockShox Recon Silver RL
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6, 29", Rigide, Tapered, Double butted
Suspension Fork
RockShox Recon RL, Remote, Solo air, Boost, 100 mm
Drivetrain
Rear Derailleur
Shimano SLX, RD-M7100 SGS, Shadow Plus Design
Shift Levers
Shimano SLX, SL-M7100, 12V
Cassette
Shimano SLX, CS-M7100, 10-51, 12V
Crank
Shimano MT610-1 32T, 12V 170 mm (40/43) 175 mm (48/52)
Wheels
Front Hub
Aluminium, disque, 32T, 100 / 135 mm
Rear Hub
Aluminium, disque, 32T, 100 / 135 mm
Rims
Tec SSP225, aluminium 29 ", disque, Tubeless Ready
Tires
Hutchinson Taipan, 29 x 2,10
Brakes
Brakes
Shimano Deore, MT-400 hydrauliques, 180 / 160 mm
Cockpit
Stem
Tec Obvius 60/70/80/90 mm x 31,8 x 7°
Handlebar
Tec Cursus Flatbar 720 x 31,8 x 9°
Seat
Saddle
Tec Unicus
Seatpost
Tec Obvius alu 6061 T6, 31,6 x 350 mm, 15 mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Top Tube Length | 577 mm | 601 mm | 630 mm | 656 mm |
| Seat Tube Angle | 67.1 ° | 67.1 ° | 66.6 ° | 66.6 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Travel | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
