Bike details
Overview
Key information split into simple groups.

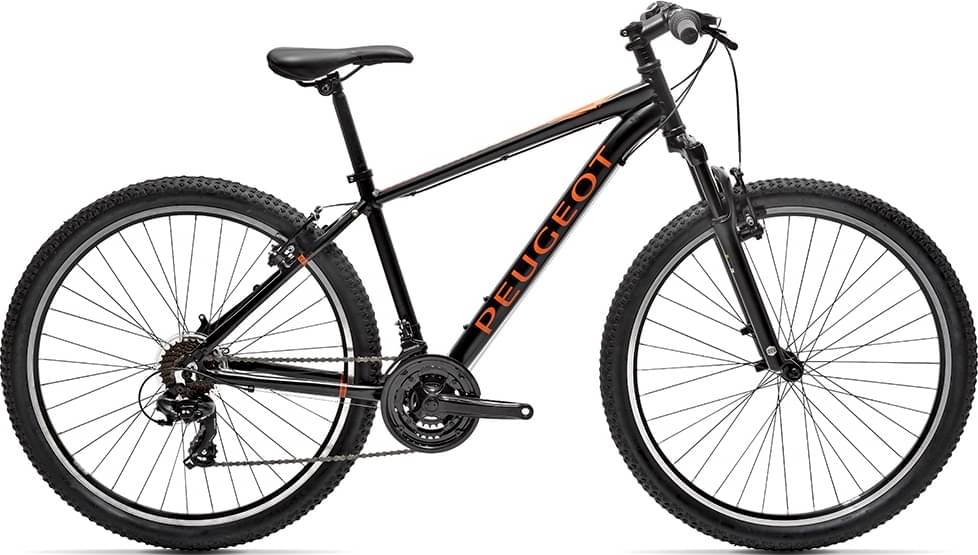

Bike summary
-
Category -
Frame Aluminum -
Travel Front 42mm -
Groupset Tourney -
Suspension Hardtail -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061
Suspension Fork
Clearance of 100 mm and full suspension
Drivetrain

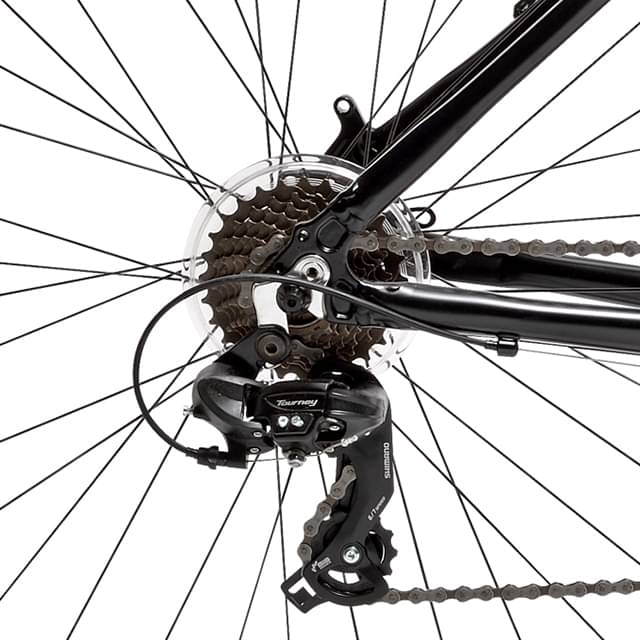

Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano TZ
Shift Levers
Shimano Tourney 21 speeds
Crank
170 mm
Pedals
Resin - steel
Wheels
Front Hub
Steel
Rear Hub
Steel
Rims
Aluminum with double sidewall
Brakes

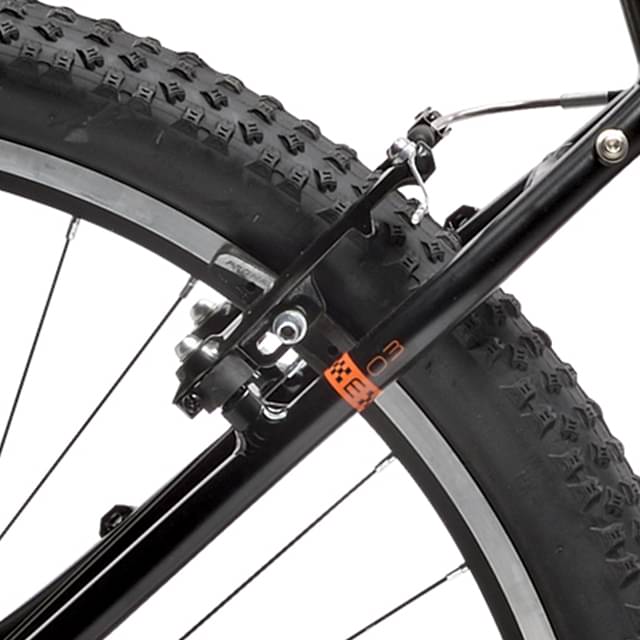

Brakes
V-brakes aluminum
Cockpit
Stem
Aluminum 75 x 31,8 mm
Handlebar
Steel 640 x 31.8 mm
Seat
Saddle
Comfort
Seatpost
Aluminum 27.2 x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Top Tube Length | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Front Travel | 42 mm | 42 mm | 42 mm | 42 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
