Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum with double stop and passage for internal cable
Suspension Fork
Carbon
Drivetrain
Rear Derailleur
Shimano Tiagra
Front Derailleur
Shimano Tiagra
Shift Levers
Shimano Tiagra 20 speeds
Cassette
Shimano Tiagra
Crank
Shimano Tiagra
Pedals
VP-399T
Wheels
Front Hub
Formula Center Lock 100 / 135 mm
Rear Hub
Formula Center Lock 100 / 135 mm
Rims
Tec aluminum with double sidewall
Tires

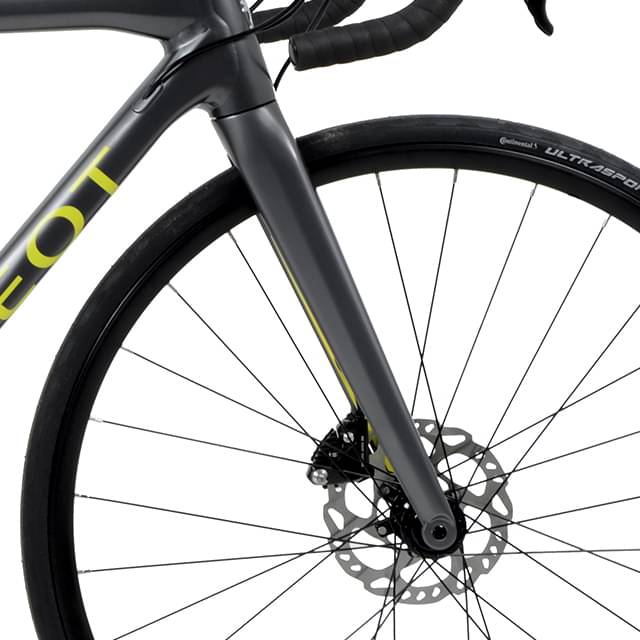

Continental Ultra Sport II
Brakes
Brakes

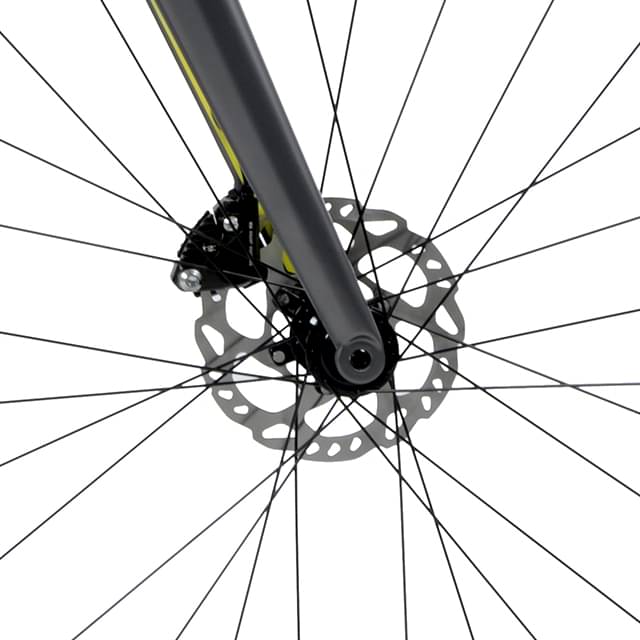

Shimano RS-405 160 / 160 mm hydraulic discs
Cockpit
Stem
3T ARX 31.8 mm
Handlebar
3T Tornova 31.8 x 139 mm
Seat
Saddle
Tec Unicus Cromo
Seatpost
3T Stilo Pro 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 269 mm | 269 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74.5 ° | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72.2 ° | 73 ° | 73 ° | 73.5 ° | 74 ° |
| Head Tube Length | 115 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 418 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
