Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Groupset Alivio, Acera -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6 Hydroformed, belt compatible
Suspension Fork
Fourche rigide aluminium, tapered
Drivetrain
Rear Derailleur
Shimano Alivio, RD-T4000
Front Derailleur
Shimano Alivio, FD-T4000
Shift Levers
Shimano Acera, M3000, 24V
Cassette
Shimano CS-HG200-9, 11-34T
Crank
Aluminium, 39T, 170 mm

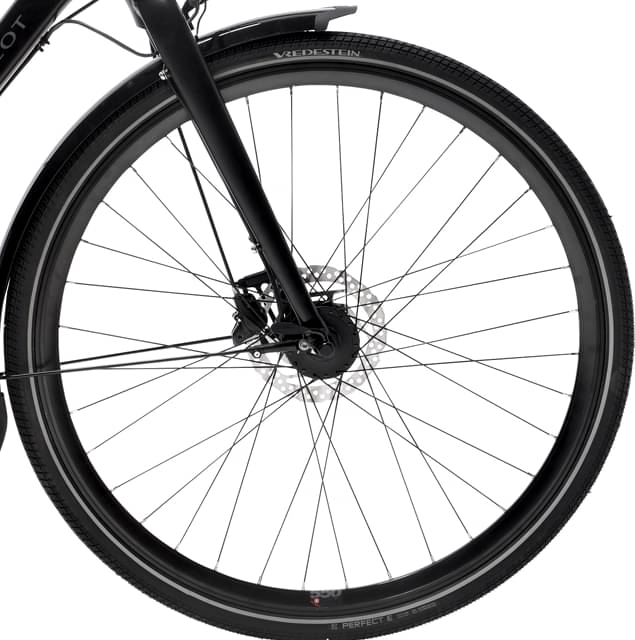

Wheels
Front Hub
Shimano Dynamo 3V6W / Aluminium disc 36T
Rear Hub
Shimano Dynamo 3V6W / Aluminium disc 36T
Rims
Mach 1 disc, alu, double sidewall, profiled
Tires
Vredestein Active Tour 700 x 35C
Brakes
Brakes
Shimano BR-MT201
Cockpit
Stem
Aluminium 70 x 31,8 x 7°
Handlebar
Aluminium 720 x 31,8 x 20 x 15°
Seat
Seatpost
Aluminium 31,6 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 558 mm | 575 mm | 595 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 348 mm | 348 mm | 348 mm | 348 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Front Travel | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
