Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour
-
Groupset Tourney, Altus -
Suspension Hardtail -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum 6061

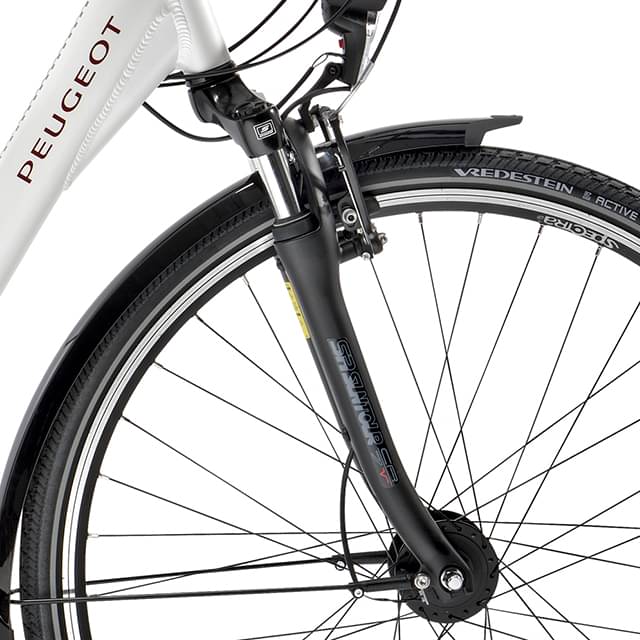

Suspension Fork
SR SUNTOUR CR7V with a clearance of 40 mm
Drivetrain
Rear Derailleur
Shimano Altus
Front Derailleur
Shimano Tourney
Shift Levers
Shimano TX 21 speeds
Cassette
Shimano Tourney
Crank
Shimano TY 170 mm
Pedals
VP-821 composite with spikes against slip
Wheels
Front Hub
Shimano Dynamo / Aluminum
Rear Hub
Shimano Dynamo / Aluminum
Rims
Spectra aluminum with double sidewall
Tires
Reflective Vredestein Active Tour
Brakes
Brakes
V-brake aluminum
Cockpit
Stem
Aluminum 80 x 25.4 mm
Handlebar
Steel 590 x 25.4 mm
Seat
Saddle
Selle Royal One City
Seatpost
Aluminum 27.2 x 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 550 mm | 550 mm | 566 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 360 mm | 360 mm | 360 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm |
| Front Travel | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
