Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB
Suspension Fork
Bolide TR Onda Fork with ForkFlap™, tapered head tube
Drivetrain
Bottom Bracket
Italian, 70mm, threaded
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

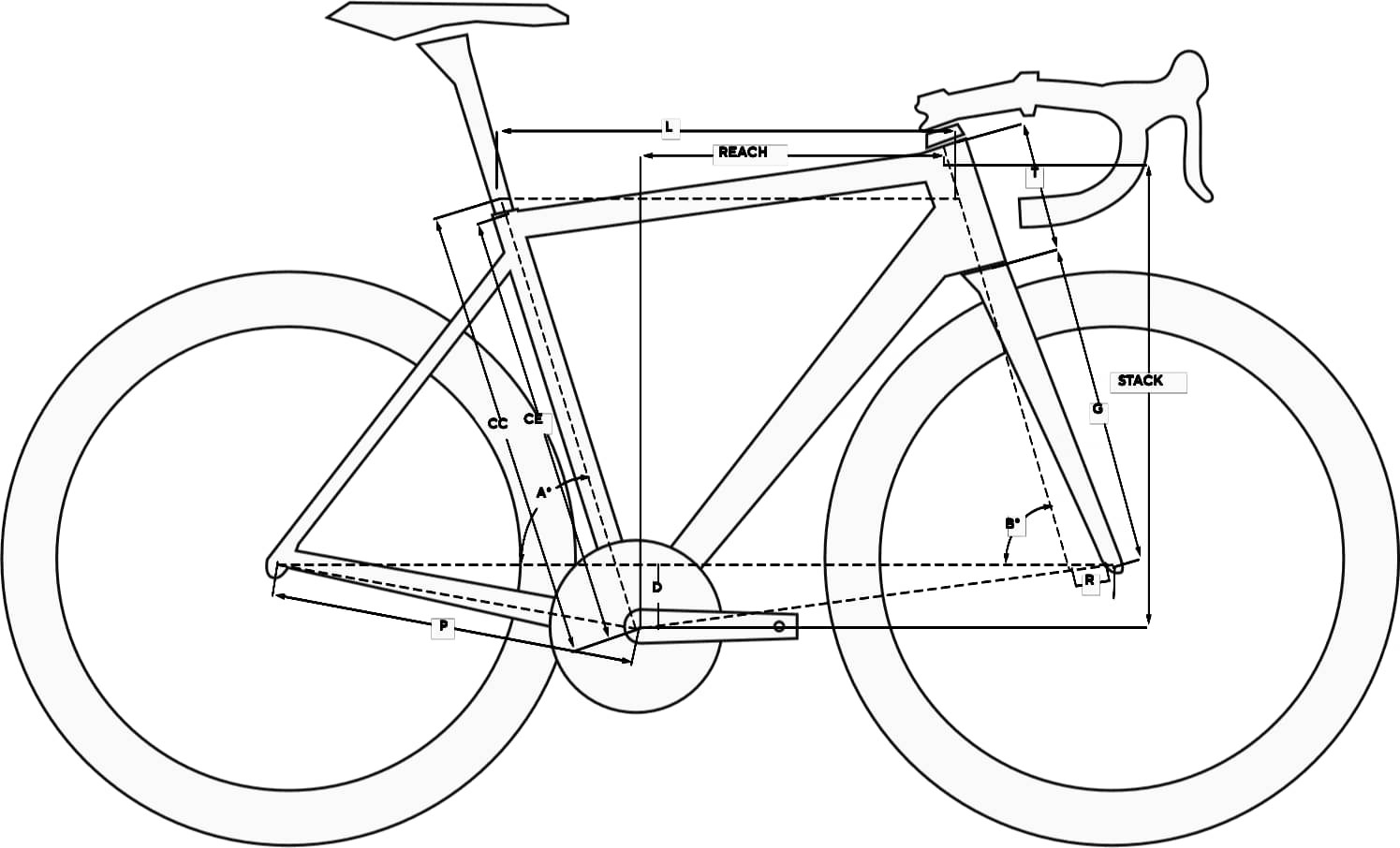

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48.5cm | 52cm | 55cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.333 mm | 1.334 mm | 1.309 mm | 1.281 mm |
| Bottom Bracket Height | 271 mm | 266 mm | 266 mm | 266 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 492 mm | 515 mm | 530 mm | 543 mm |
| Reach | 369 mm | 386 mm | 405 mm | 424 mm |
| Top Tube Length | 480 mm | 500 mm | 520 mm | 540 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 472 mm | 492 mm | 507 mm | 537 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 106 mm | 120 mm | 134 mm |
| Chainstay Length | 395 mm | 395 mm | 395 mm | 395 mm |
| Bottom Bracket Drop | 65 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
