Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, Italian BB, UCI Approved
Suspension Fork
Bolide HR Onda Fork with tapered head tube
Drivetrain
Cassette
singlespeed freehub
Crank
carbon custom
Bottom Bracket
custom italian
Chain
singlespeed chain
Brakes
Brakes
Rim
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

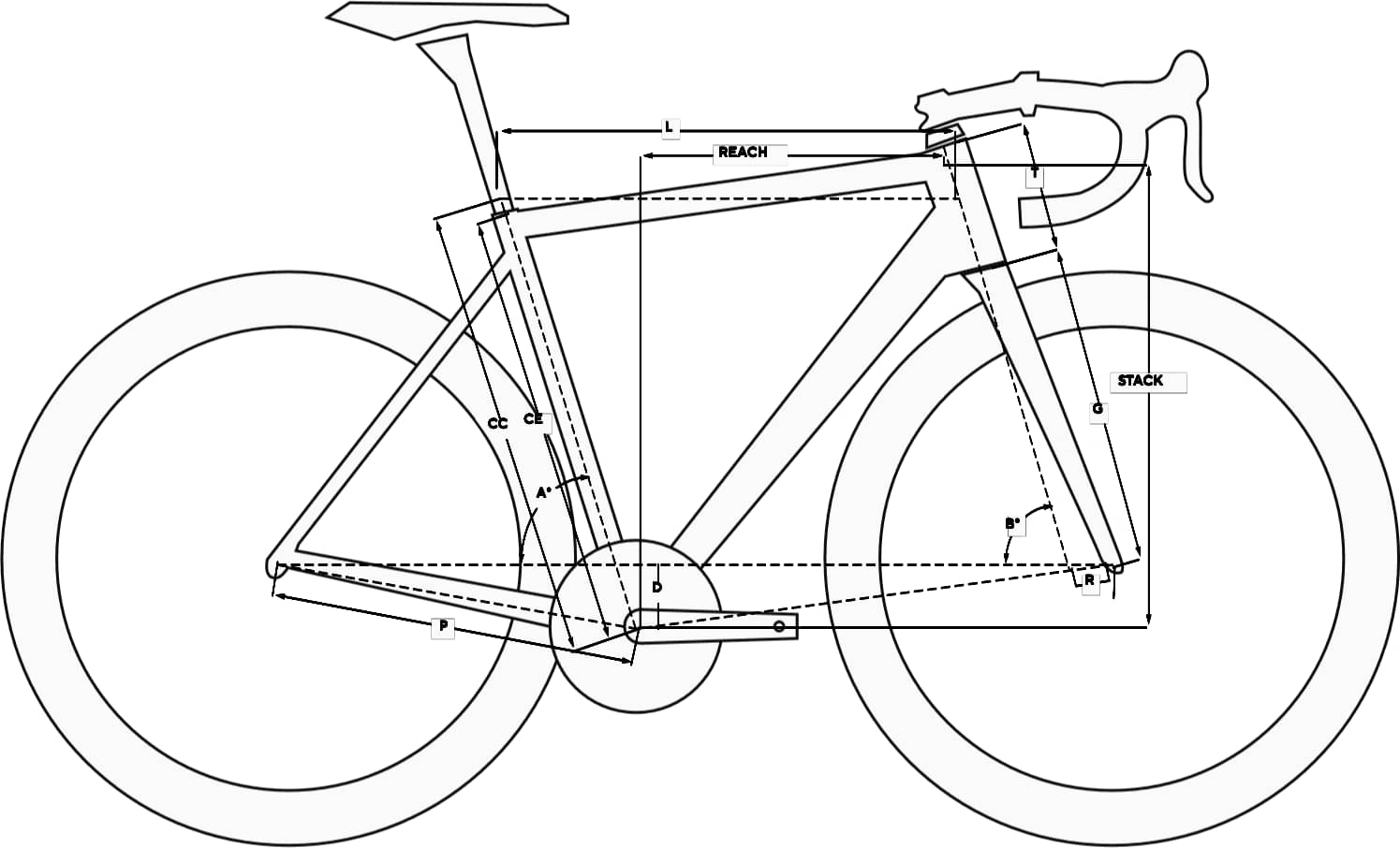

Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 52.5cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.244 mm | 1.224 mm | 1.181 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Stack | 469 mm | 492 mm | 508 mm |
| Reach | 377 mm | 402 mm | 430 mm |
| Top Tube Length | 488 mm | 514 mm | 545 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 514 mm | 539 mm | 554 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 74 mm | 94 mm | 110 mm |
| Chainstay Length | 385 mm | 385 mm | 385 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 |
