Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.37 mm | 1.43 mm | 1.43 mm |
| Front Center | 569 mm | 590 mm | 591 mm | 601 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 66 mm | 60 mm | 53 mm |
| Stack | 502 mm | 521 mm | 548 mm | 568 mm |
| Reach | 366 mm | 380 mm | 382 mm | 396 mm |
| Top Tube Length | 515 mm | 534 mm | 552 mm | 572 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 74 ° |
| Head Tube Length | 105 mm | 125 mm | 150 mm | 168 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 960 mm | 981 mm | 982 mm | 992 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

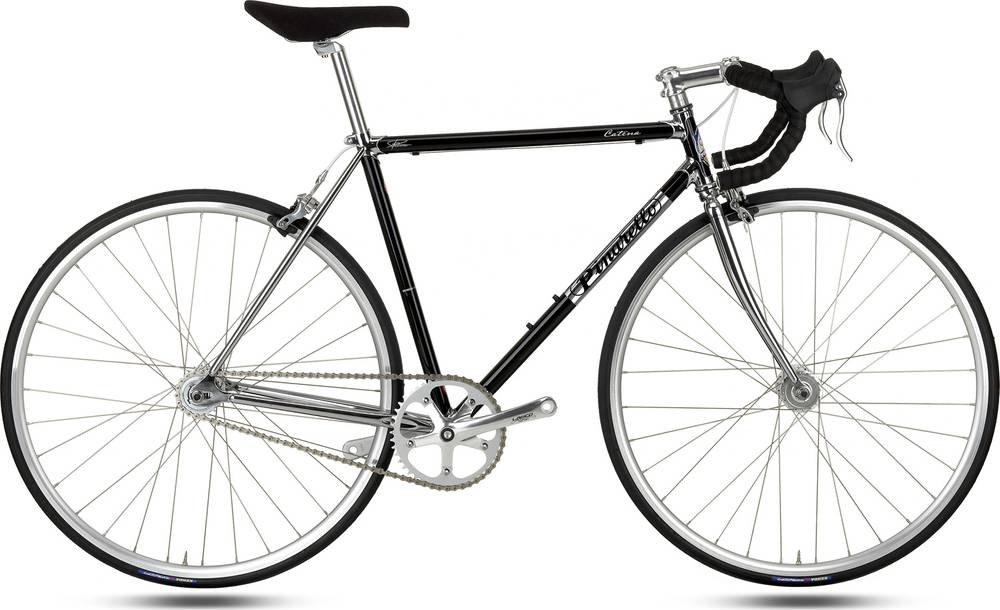

Catena completes the Pinarello Catena model. Pinarello released 1 frame variation of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hipster frames average price
If you want to purchase a solid Hipster frame, it is important to know that the average cost is 540$. However, even though the average price of a Hipster frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
