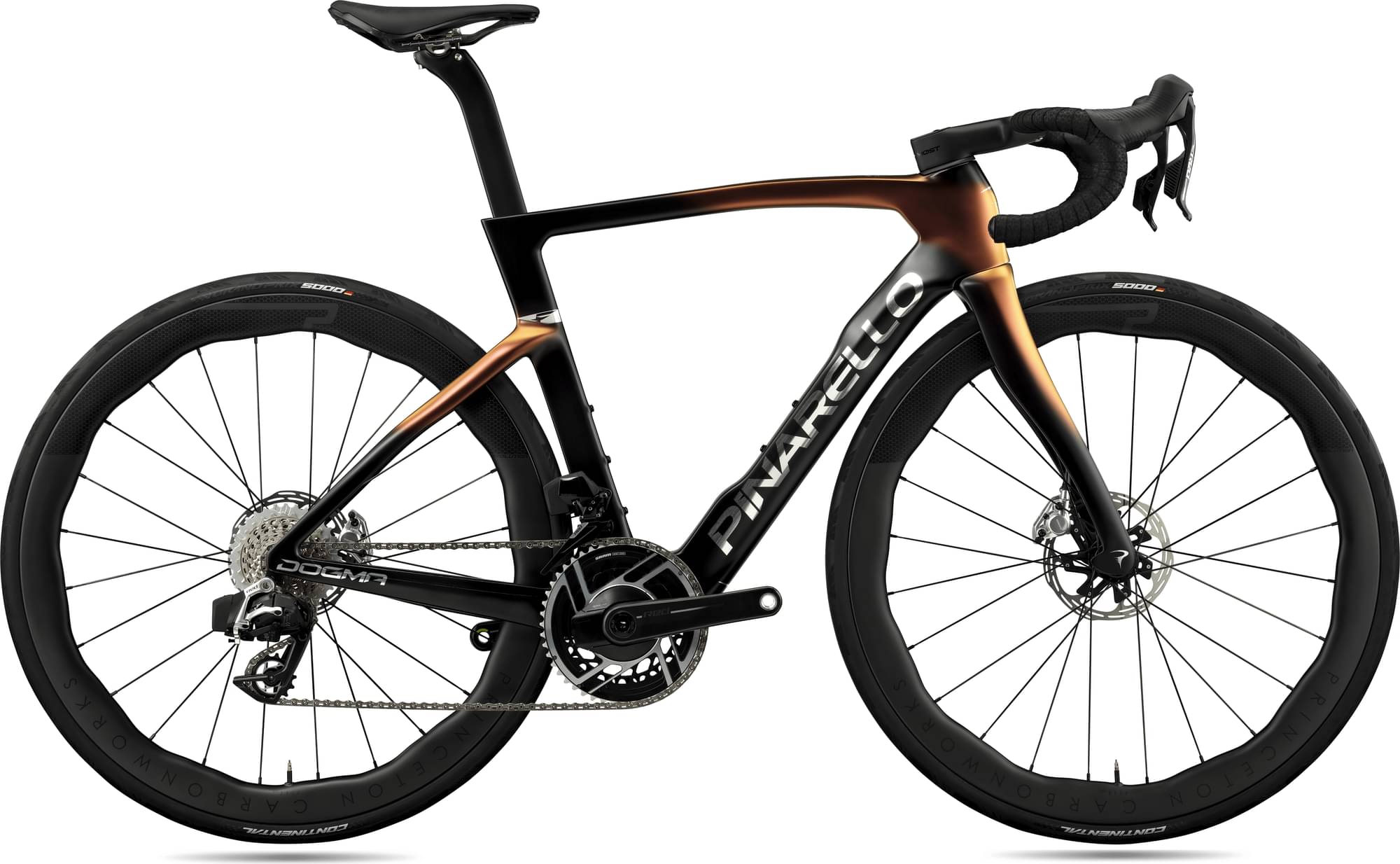

Pinarello DOGMA F SRAM RED ETAP AXS 2025
2025 Road
Weight | 6.63 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes SRAM RED Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa M40X, TiCR™ Cable Routing, Italian BB
Suspension Fork
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
Drivetrain
Rear Derailleur
SRAM Red ETAP AXS 12S
Front Derailleur
SRAM Red ETAP AXS 12S
Cassette
SRAM Red XG-1290
Crank
SRAM Red ETAP AXS 12S
Bottom Bracket
SRAM Red
Wheels
Rims
PRINCETON PEAK 4550 DB*
Tires
Continental Gran Prix 5000S TR28-622
Brakes
Brakes
Front: SRAM Red 2 pistons caliper, 160mm rotor, Rear: SRAM Red 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
Fit data

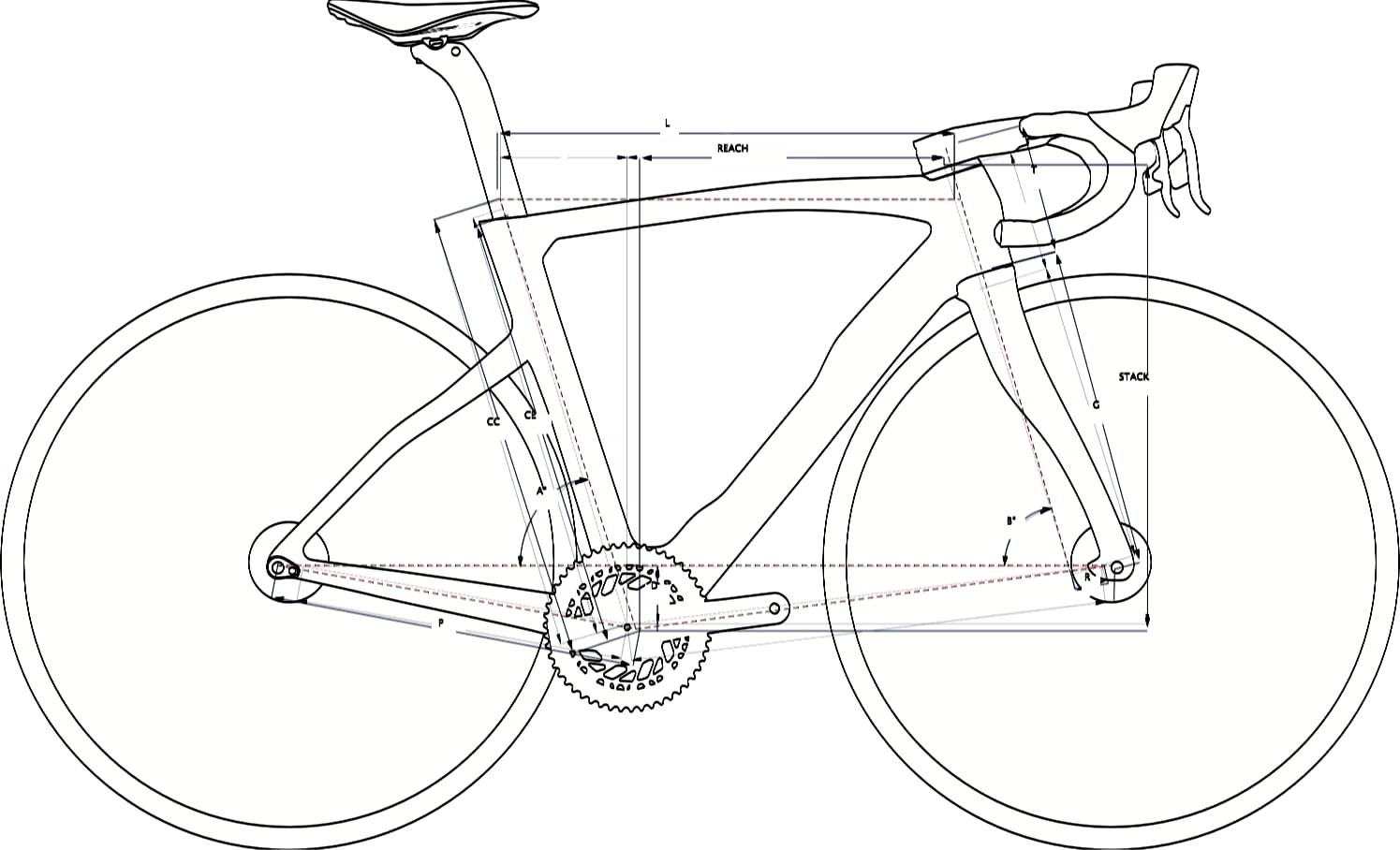

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.416 mm | 1.411 mm | 1.407 mm | 1.415 mm | 1.43 mm | 1.443 mm | 1.459 mm | 1.474 mm | 1.559 mm | 1.589 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 502 mm | 517.3 mm | 525.2 mm | 532.1 mm | 542.4 mm | 551 mm | 561.5 mm | 570.1 mm | 584.8 mm | 613.2 mm | 651.6 mm |
| Reach | 351.5 mm | 365.4 mm | 372.2 mm | 378.2 mm | 383.3 mm | 385.3 mm | 389.2 mm | 390.8 mm | 396.7 mm | 393.4 mm | 410 mm |
| Top Tube Length | 500 mm | 515 mm | 525 mm | 535 mm | 545 mm | 550 mm | 557 mm | 565 mm | 575 mm | 587 mm | 620 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 102 mm | 109 mm | 114 mm | 119 mm | 128 mm | 136 mm | 147 mm | 154.5 mm | 168 mm | 204 mm | 244 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 408 mm | 408 mm | 409 mm | 409 mm | 409 mm | 411 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
