Bike details
Overview
Key information split into simple groups.

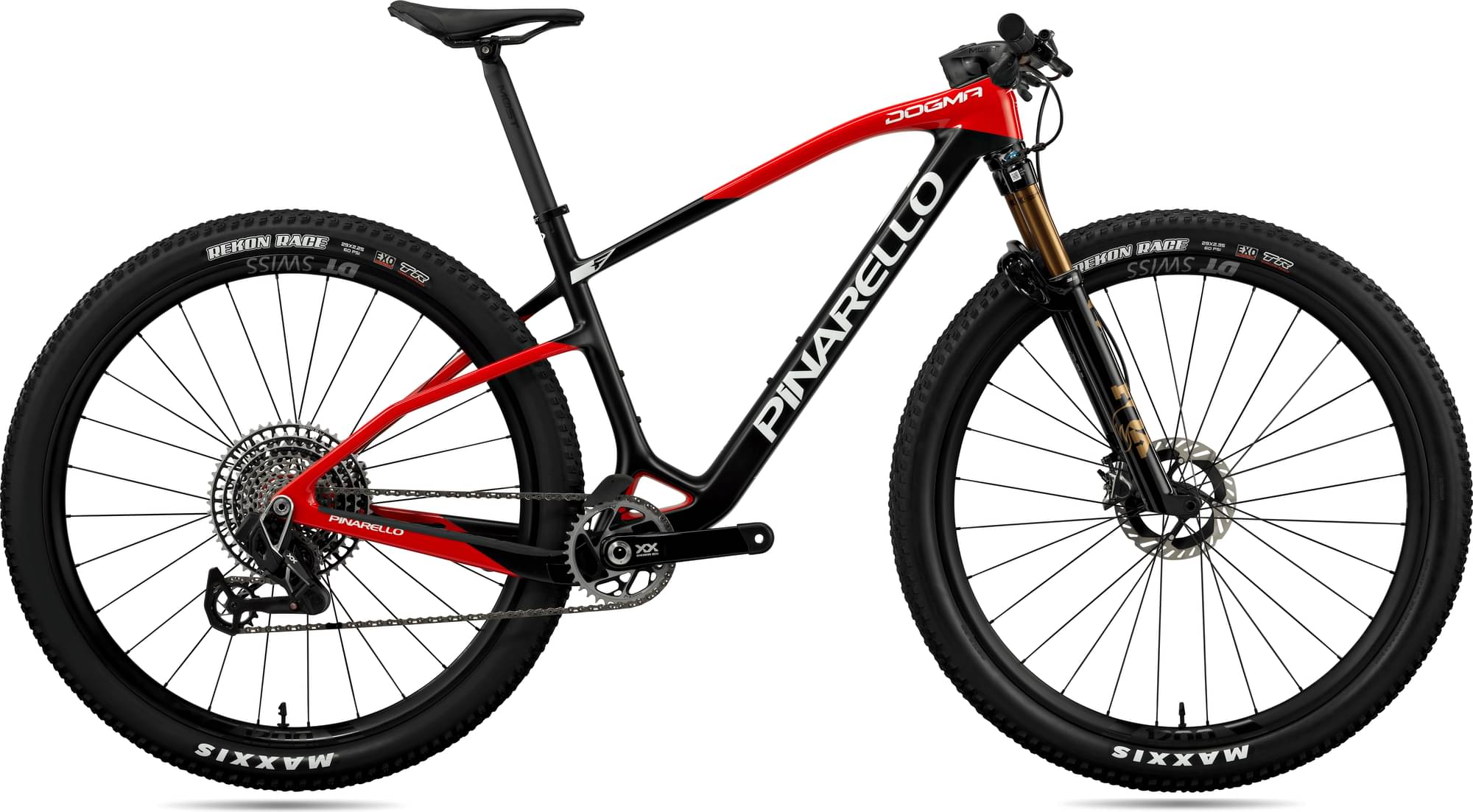

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX -
Suspension Hardtail -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TORAY M40J
Suspension Fork
FOX 32 FACTORY SC KASHIMA 100MM
Drivetrain
Rear Derailleur
SRAM XX SL EAGLE
Cassette
SRAM XX SL EAGLE
Crank
SRAM XX SL EAGLE
Bottom Bracket
SRAM XX SL EAGLE
Chain
SRAM XX SL EAGLE
Wheels
Rims
DT XRC 1200 SPLINE
Tires
MAXXIS TIRE REKON RACE 29.5X2.25 EXO TR 120TPI
Brakes
Brakes
Front: SHIMANO XTR, Rear: SHIMANO XTR
Seat
Saddle
LYNX 2.0 XC
Fit data

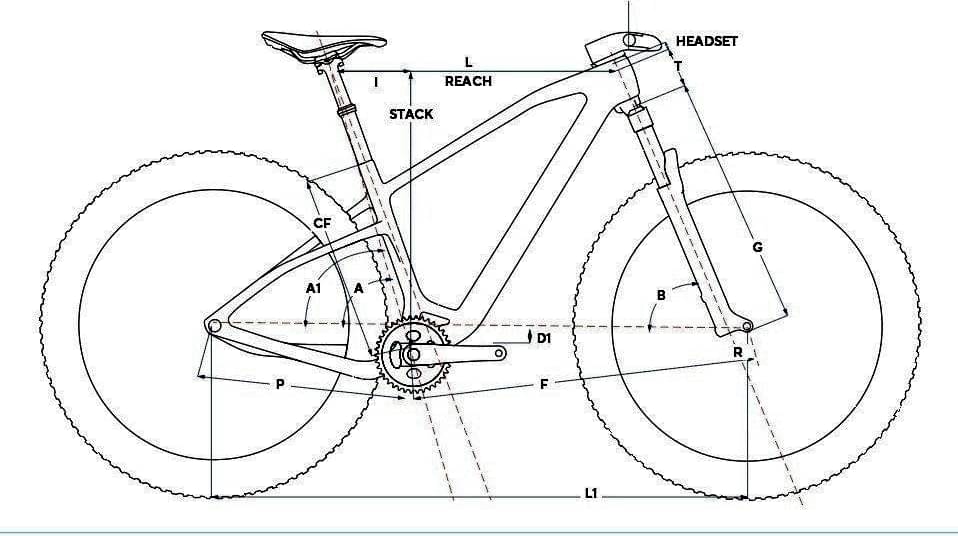

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.416 mm | 1.339 mm | 1.31 mm | 1.293 mm |
| Bottom Bracket Height | 314 mm | 316 mm | 318 mm | 318 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 598.9 mm | 602.7 mm | 615.8 mm | 630.9 mm |
| Reach | 423.1 mm | 450 mm | 470 mm | 488 mm |
| Top Tube Length | 588.2 mm | 611.5 mm | 635 mm | 657 mm |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 422 mm | 425 mm | 428 mm | 430 mm |
| Bottom Bracket Drop | 60 mm | 58 mm | 56 mm | 56 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
