Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR Di2 -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TORAY M40J
Suspension Fork
FOX 32 FACTORY SC KASHIMA 100MM
Drivetrain
Rear Derailleur
SHIMANO XTR DI2 1X12
Cassette
SHIMANO XTR DI2 1X12
Crank
SHIMANO XTR DI2 1X12
Bottom Bracket
SHIMANO XTR DI2 1X12
Chain
SHIMANO XTR DI2 1X12
Wheels
Rims
DT XRC 1200 SPLINE
Tires
MAXXIS TIRE REKON RACE 29.5X2.25 EXO TR 120TPI
Brakes
Brakes
Front: SHIMANO XTR DI2 1X12, Rear: SHIMANO XTR DI2 1X12
Seat
Saddle
LYNX 2.0 XC
Seatpost
FOX TRANSFER SL KASHIMA D30.9MM DROP 100MM
Fit data

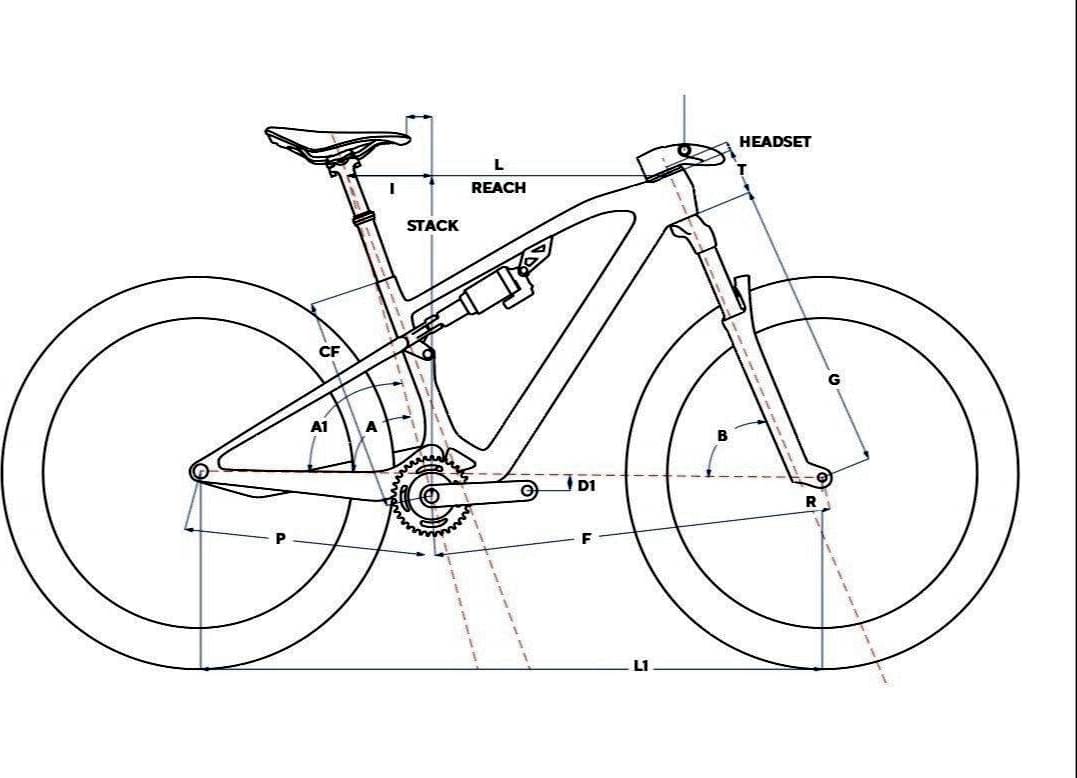

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.296 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm | 328 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Stack | 584.9 mm | 589.5 mm | 605.8 mm | 619.7 mm |
| Reach | 426.5 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 578 mm | 608 mm | 634 mm | 659.1 mm |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
