Bike details
Overview
Key information split into simple groups.

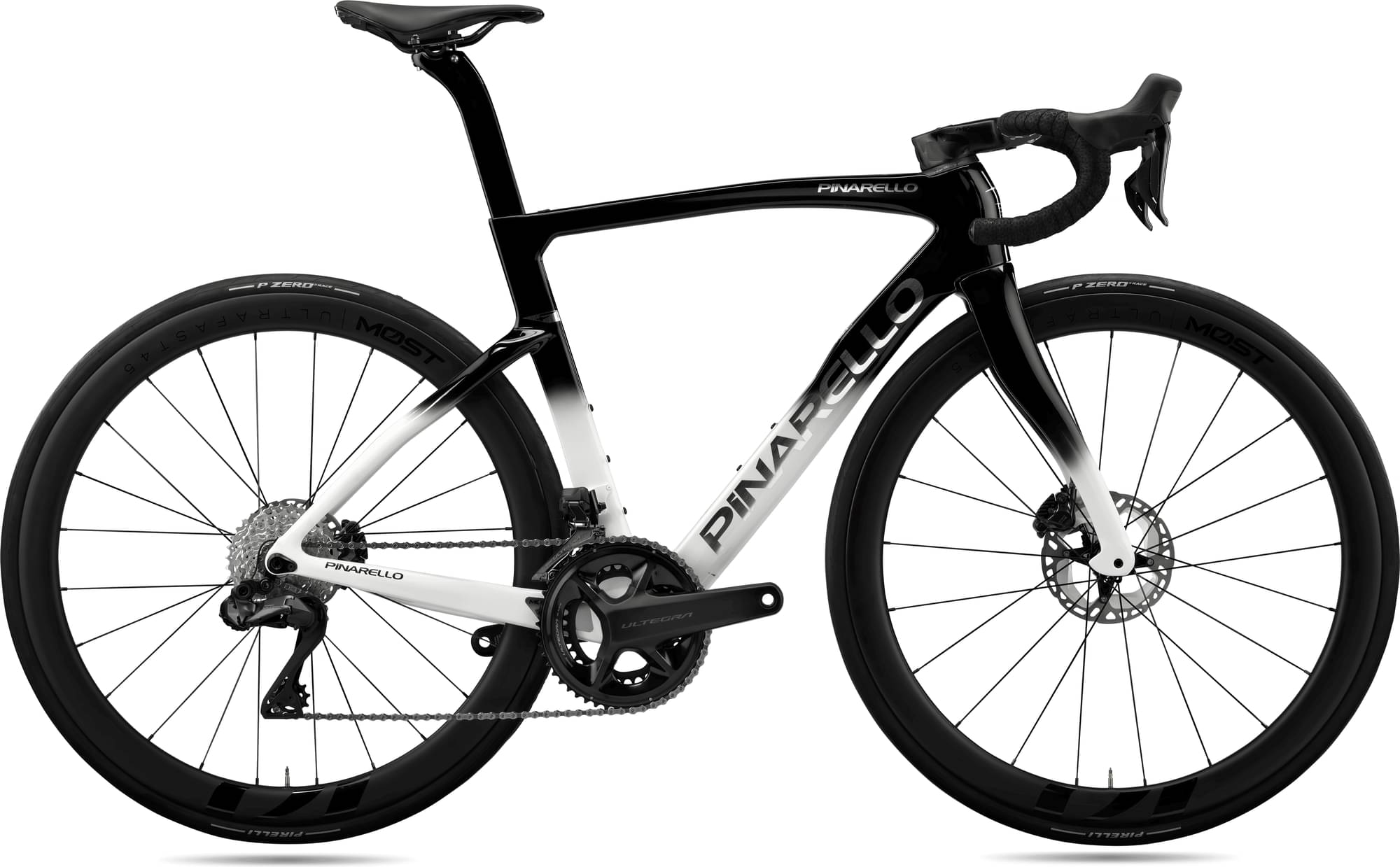

Bike summary
-
-
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
Drivetrain
Front Derailleur
Shimano Ultegra Di2 FD R8150 12S
Cassette
Shimano Ultegra Di2 FD R8150 12S
Crank
Shimano Ultegra Di2 FD R8150 12S
Bottom Bracket
Italian, 70mm, threaded
Chain
Shimano Ultegra Di2 FD R8150 12S
Wheels
Rims
MOST Ultrafast 40*
Brakes
Brakes
Front: Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor, Rear: Shimano Ultegra R8150, 2 pistons caliper, 140mm rotor
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

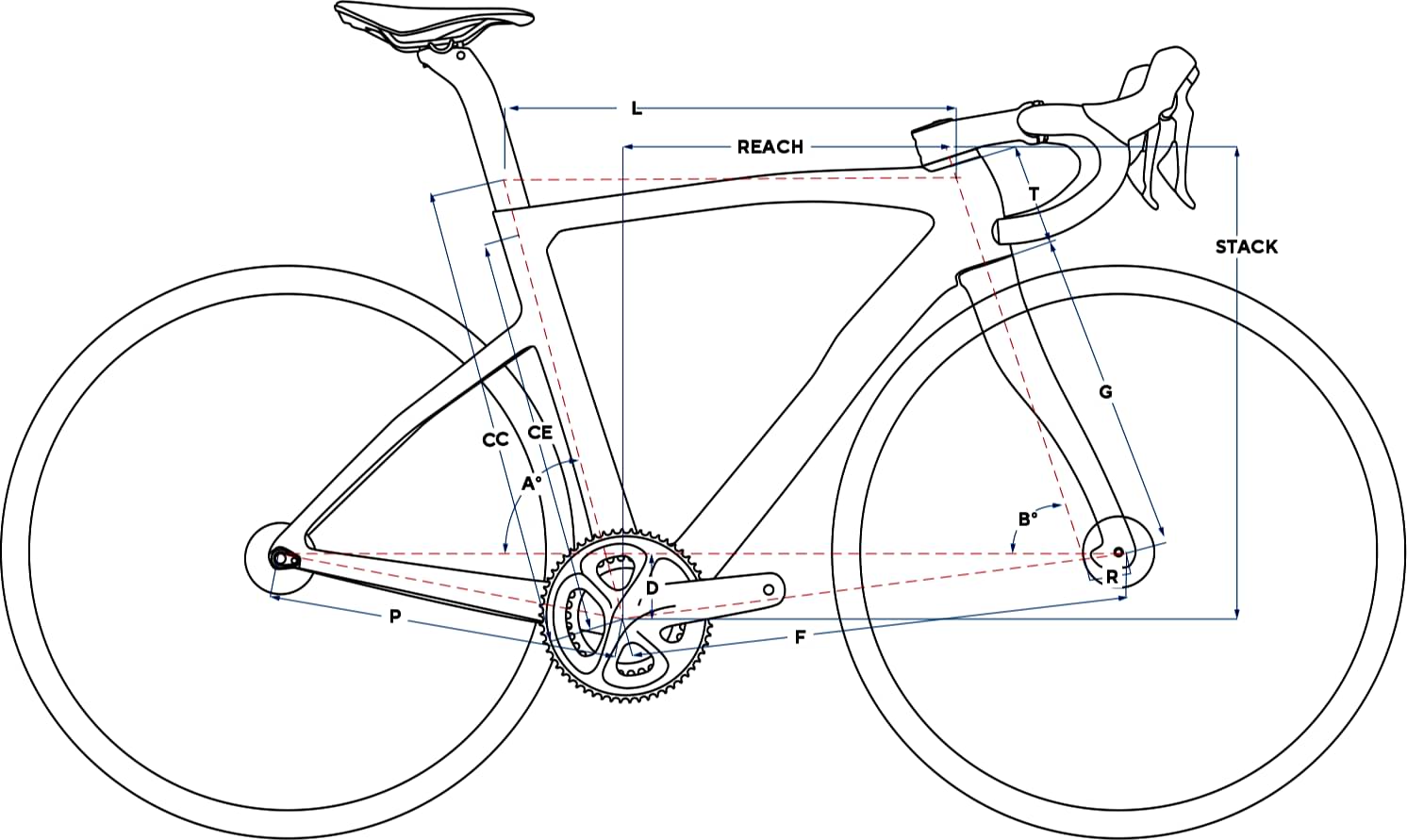

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54.5cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.418 mm | 1.412 mm | 1.408 mm | 1.407 mm | 1.437 mm | 1.459 mm | 1.516 mm | 1.583 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Stack | 502.5 mm | 517.7 mm | 525.5 mm | 532.3 mm | 542.6 mm | 557.9 mm | 570.3 mm | 599.3 mm | 633.5 mm |
| Reach | 351.3 mm | 365.2 mm | 372.1 mm | 378.1 mm | 385.6 mm | 388.3 mm | 390.8 mm | 395.4 mm | 400.3 mm |
| Top Tube Length | 500 mm | 515 mm | 525 mm | 535 mm | 545 mm | 555 mm | 565 mm | 578 mm | 600 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 515 mm | 525 mm | 560 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° |
| Head Tube Length | 97 mm | 104 mm | 109 mm | 114 mm | 123 mm | 138 mm | 149.5 mm | 178 mm | 220 mm |
| Chainstay Length | 406 mm | 406 mm | 408 mm | 408 mm | 408 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
