Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 51cm | 53cm | 55cm | 57.5cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.25 mm | 1.25 mm | 1.23 mm | 1.24 mm | 1.24 mm | 1.27 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 557 mm | 567 mm | 582 mm | 598 mm | 614 mm | 630 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm |
| Stack | 468 mm | 485 mm | 495 mm | 509 mm | 524 mm | 548 mm |
| Reach | 375 mm | 388 mm | 401 mm | 412 mm | 424 mm | 432 mm |
| Top Tube Length | 499 mm | 514 mm | 529 mm | 544 mm | 559 mm | 574 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 510 mm | 530 mm | 550 mm | 575 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 75 mm | 90 mm | 100 mm | 115 mm | 130 mm | 155 mm |
| Chainstay Length | 384 mm | 384 mm | 384 mm | 384 mm | 384 mm | 384 mm |
| Wheelbase | 933 mm | 943 mm | 958 mm | 974 mm | 990 mm | 1006 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

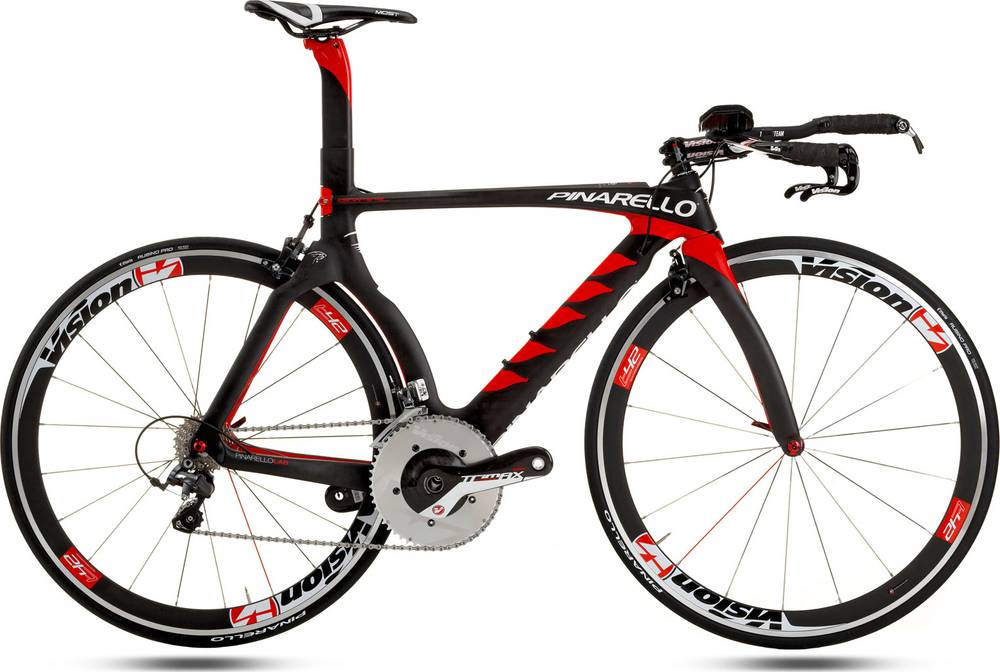

GRAAL Triathlon is a Pinarello Graal model. 10 frames variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Triathlon frames average price
If you want to purchase a solid Triathlon frame, it is important to know that the average cost is 3089$. However, you could also get a good Triathlon frame even if you pay a lower amount than the average price. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
GRAAL Triathlon components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
