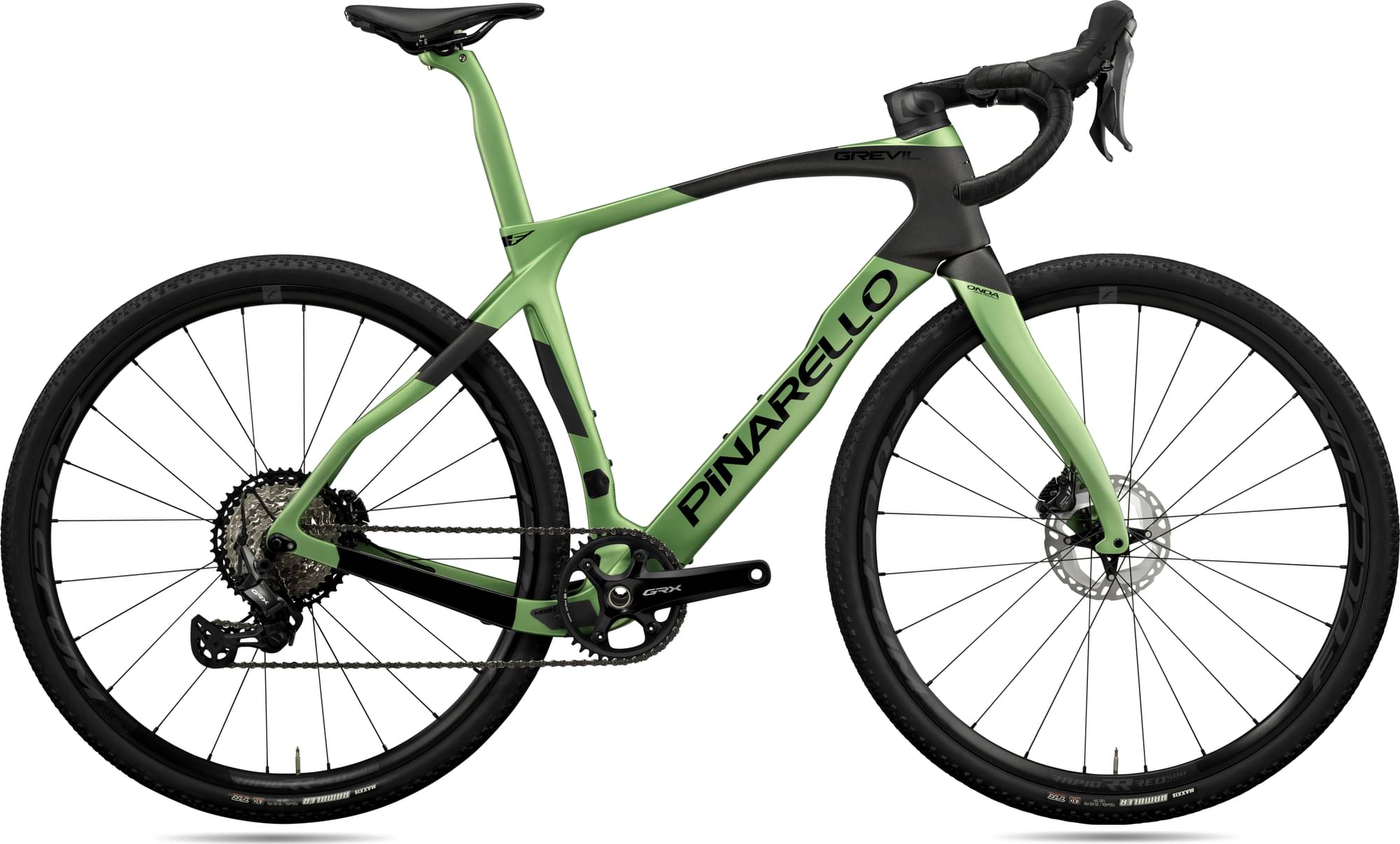

Pinarello GREVIL F7 – SHIMANO GRX 820 2025

2025 Road

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Road
- |
- Gravel
Suspension Rigid

Fit data

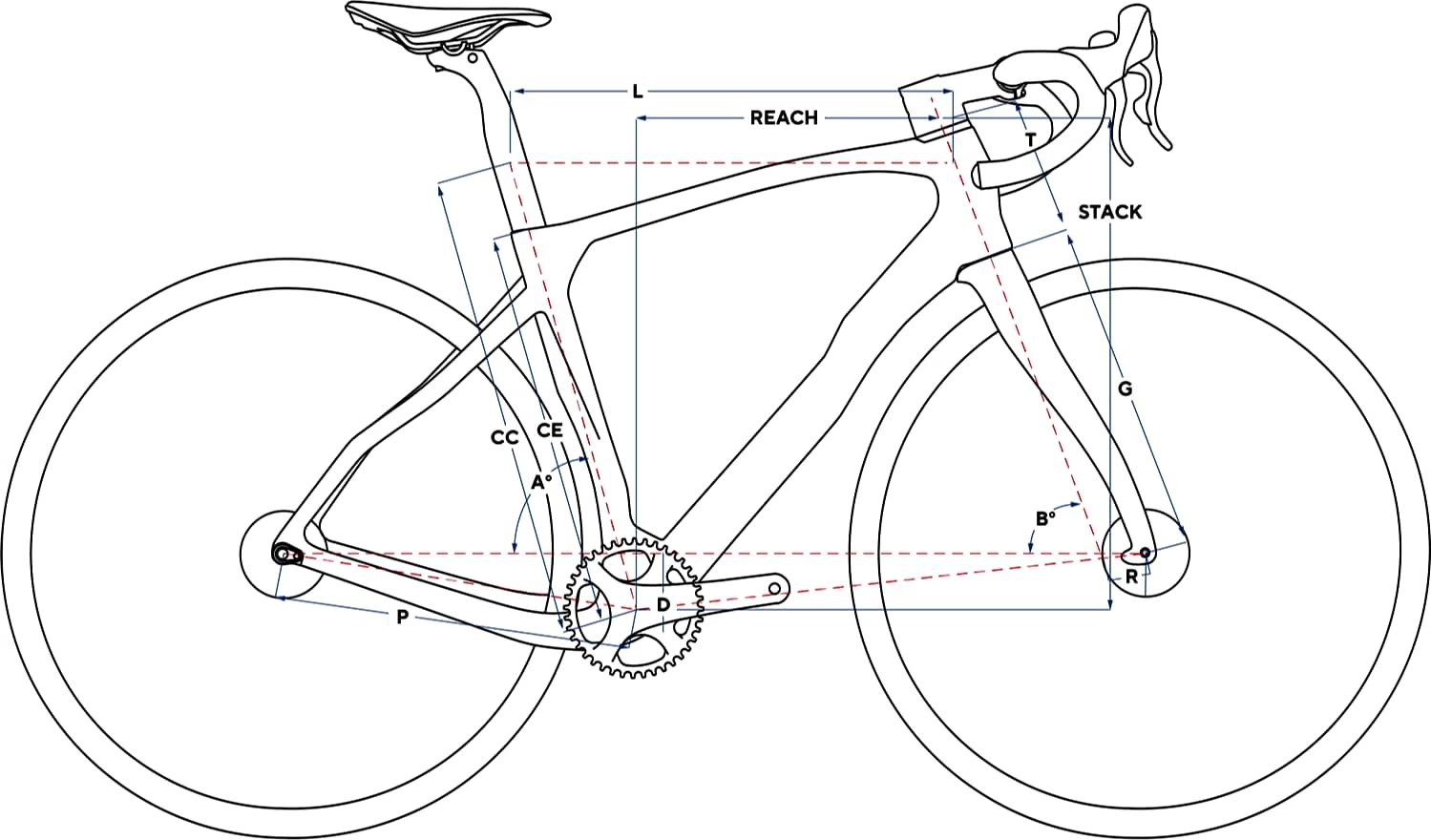

Geometry

Numbers for sizing and ride feel.

Size	47cm	50cm	53cm	55cm	57.5cm	60cm
Stack Reach Ratio	1.523 mm	1.532 mm	1.545 mm	1.554 mm	1.562 mm	1.578 mm
Bottom Bracket Height	277 mm	277 mm	282 mm	282 mm	282 mm	282 mm
Rake	55 mm	55 mm	55 mm	50 mm	50 mm	50 mm
Stack	548.4 mm	563.5 mm	578.4 mm	593.5 mm	608.8 mm	628.8 mm
Reach	360.1 mm	367.8 mm	374.4 mm	382 mm	389.7 mm	398.5 mm
Top Tube Length	520 mm	535 mm	547 mm	560 mm	577 mm	597 mm
Seat Tube Angle	74.5 °	74 °	73.75 °	73.5 °	73 °	72.5 °
Seat Tube Length	410 mm	445 mm	475 mm	500 mm	520 mm	550 mm
Head Tube Angle	70.25 °	70.5 °	70.75 °	71.75 °	72 °	72.25 °
Head Tube Length	120 mm	135 mm	155 mm	165 mm	180 mm	200 mm
Chainstay Length	422 mm	422 mm	422 mm	425 mm	425 mm	425 mm
Bottom Bracket Drop	72 mm	72 mm	67 mm	67 mm	67 mm	67 mm
Wheels	700	700	700	700	700	700
