Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Wheels 700c -
Suspension Rigid
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 52.5cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.22 mm | 1.18 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm |
| Front Center | 557 mm | 582 mm | 614 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 64 mm | 57 mm | 58 mm |
| Stack | 468 mm | 491 mm | 507 mm |
| Reach | 376 mm | 401 mm | 429 mm |
| Top Tube Length | 487 mm | 513 mm | 544 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 450 mm | 525 mm | 550 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 74 mm | 94 mm | 110 mm |
| Chainstay Length | 384 mm | 384 mm | 384 mm |
| Wheelbase | 933 mm | 958 mm | 990 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Wheels | 700 | 700 | 700 |
About this model

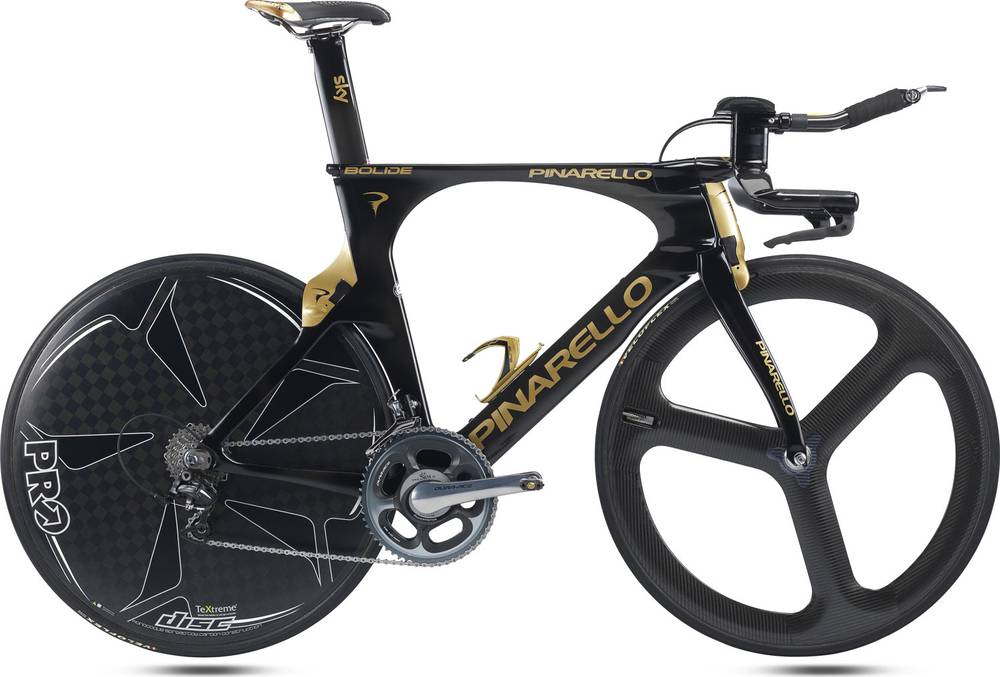

IL BOLIDE is part of the Pinarello Il model. 2 frames variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon frames
According to our math, the average price for a trustworthy Triathlon frame is 3089$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
IL BOLIDE components
Fork material
IL BOLIDE has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
