Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Trail | 90.4 mm | 88.1 mm | 88.1 mm | 88.1 mm |
| Top Tube Length | 566 mm | 585 mm | 610 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 430 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 440 mm | 444 mm |
| Wheelbase | 1073 mm | 1086 mm | 1107 mm | 1124 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

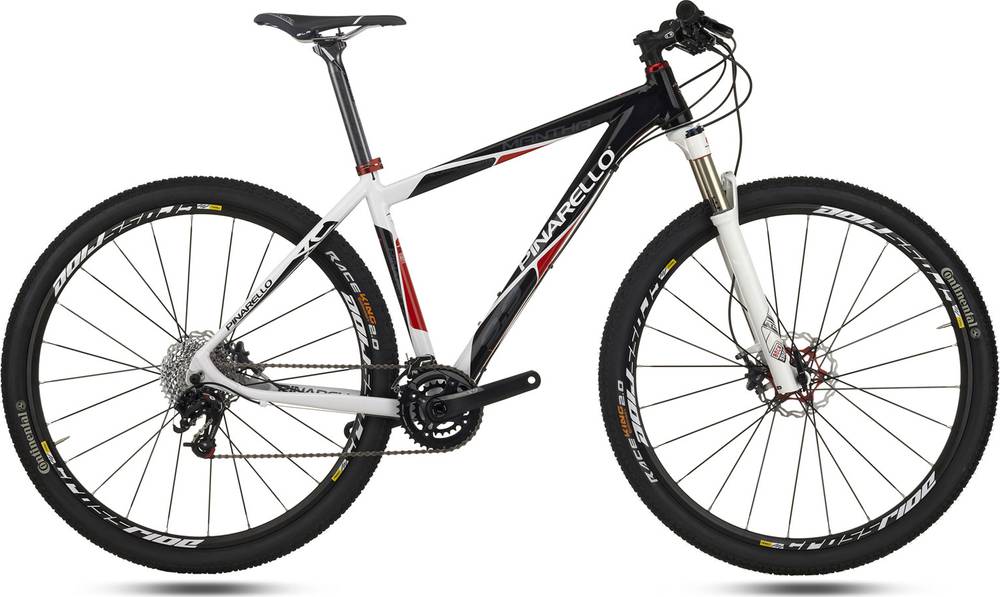

Model Overview
MANTHA is part of the Pinarello Mantha model. Pinarello released 1 frame variation of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Overview of components
Sizes
This frame is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
