Bike details
Overview
Key information split into simple groups.

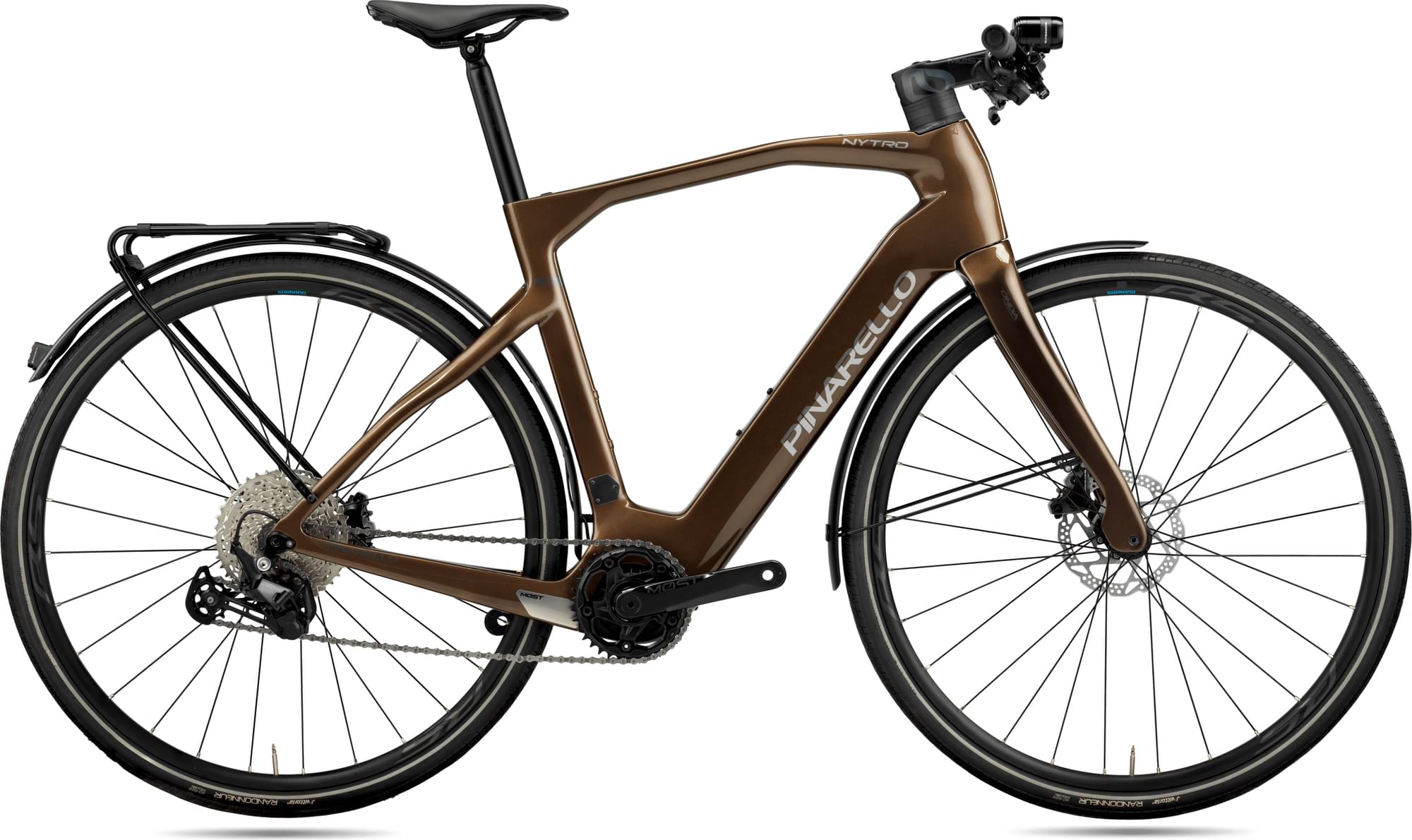

Bike summary
-
-
Frame Carbon -
Groupset Deore -
Suspension Rigid -
Motor TQ hub-drive -
Battery 360 Wh Integrated Battery -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
torayca t700 ud, with integrated battery and cable routing, 12x142 tru-axle
Suspension Fork
nytro onda carbon fork with forkflap™, tapered head tube
Drivetrain
Rear Derailleur
Shimano Deore 11s 1X
Cassette
Shimano Deore 11s 1X
Crank
most custom chainrings
Bottom Bracket
Fazua Bottom Bracked
Chain
Shimano Deore 11s 1X
Wheels
Rims
Shimano RS
Tires
Randonneur 40-622 Rigid D Reflective
Brakes
Brakes
Front: Shimano Deore 2 pistons caliper, 160mm rotor, Rear: Shimano Deore 2 pistons caliper, 160mm rotor
Cockpit
Stem
most stem
Handlebar
most flat handlebar
Grips
manopole most comfort
Motor & Battery
Motor
TQ-HPR50 Drive Unit
Battery
360 Wh Integrated Battery
Charger
compliant with UL certification UL 1012, UL 1310, UL/IEC 60335-2- 29, UL/IEC 60950-1, UL/IEC 62368-1
Fit data

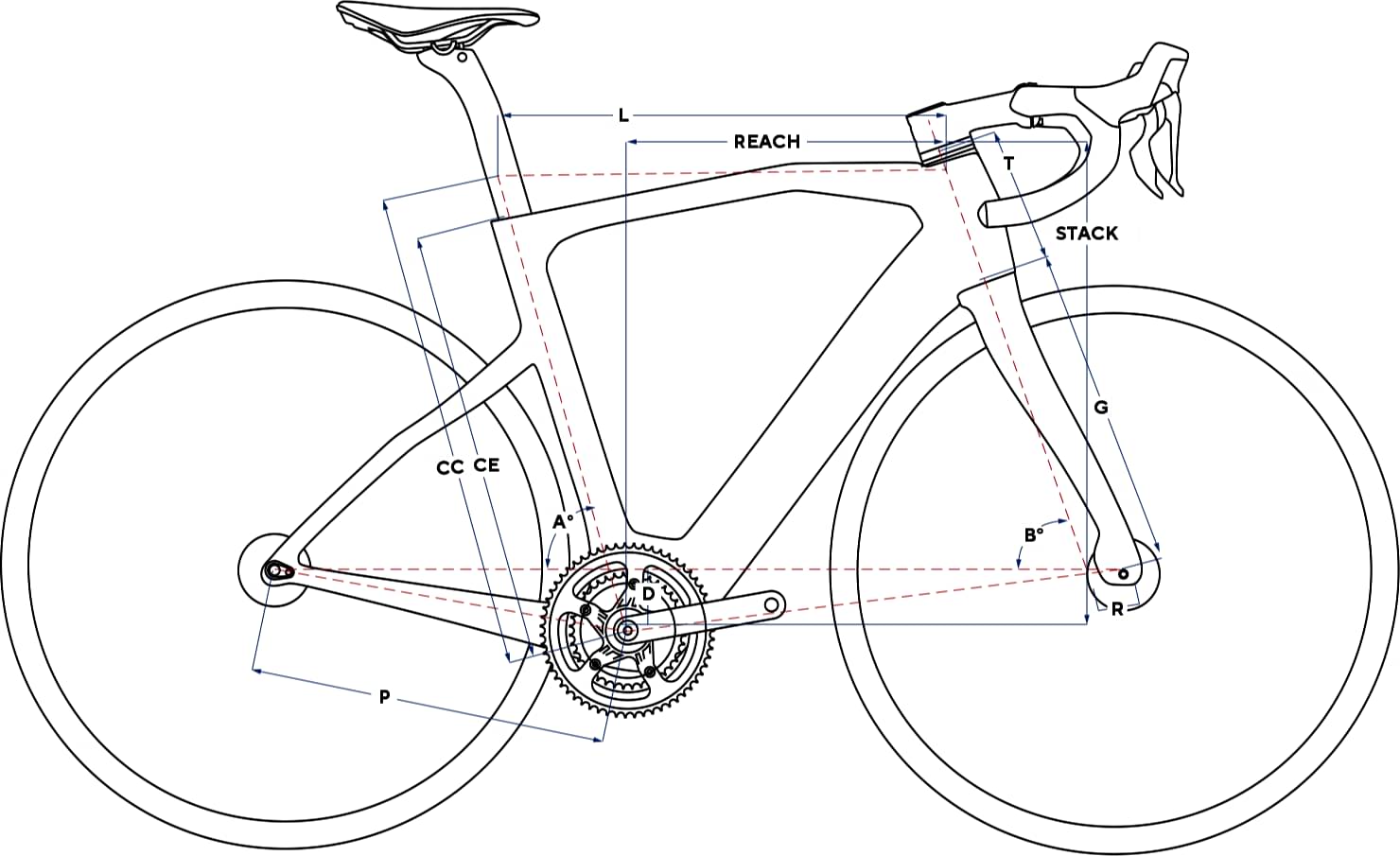

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57.5cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.568 mm | 1.58 mm | 1.593 mm | 1.603 mm |
| Bottom Bracket Height | 258 mm | 258 mm | 258 mm | 262 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 571.2 mm | 589.1 mm | 606.3 mm | 622.3 mm |
| Reach | 364.2 mm | 372.9 mm | 380.6 mm | 388.3 mm |
| Top Tube Length | 535 mm | 550 mm | 564 mm | 581 mm |
| Seat Tube Angle | 74 ° | 73.75 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 530 mm | 565 mm |
| Head Tube Angle | 70 ° | 70.25 ° | 71 ° | 71.25 ° |
| Head Tube Length | 137 mm | 155 mm | 170 mm | 190 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 74 mm |
| Wheels | 700 | 700 | 700 | 700 |
