Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Suspension Hardtail
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm | 308 mm |
| Top Tube Length | 555 mm | 578 mm | 597 mm | 616 mm | 629 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72 ° |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 95 mm | 98 mm | 105 mm | 115 mm |
| Chainstay Length | 439 mm | 439 mm | 443 mm | 443 mm | 444 mm |
| Wheelbase | 1070 mm | 1087 mm | 1105 mm | 1113 mm | 1122 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 66 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

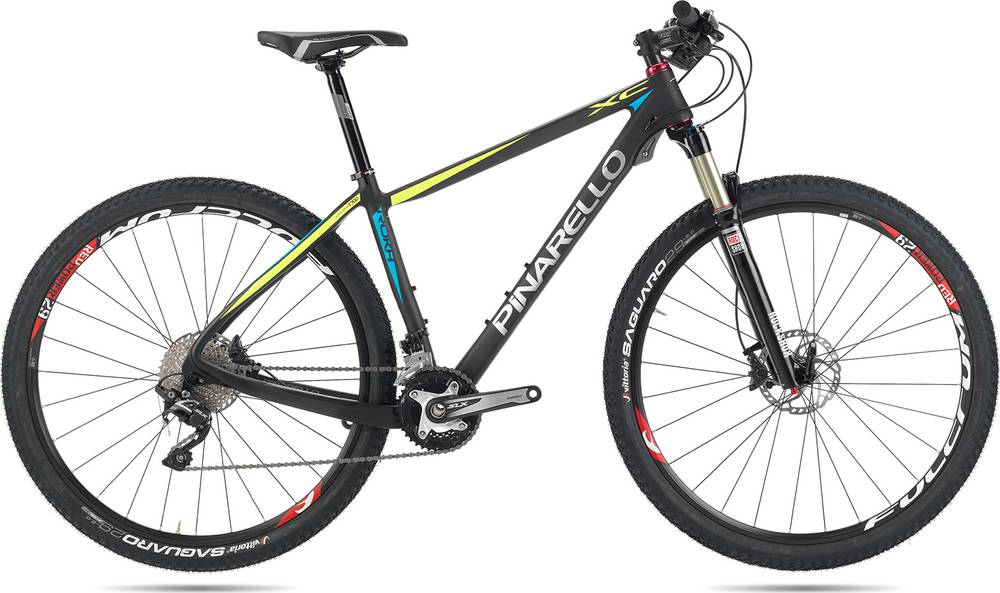

ROKH XC 9.9 completes the Pinarello Rokh model. Pinarello launched 8 frames of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry frames average price
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, even though the average price of a Crosscountry frame is lower, you might still be able to get a top-quality frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Overview of components
Sizes
This frame is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
