Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T600 UD, internal cable routing, Italian BB, UCI approved
Drivetrain
Cassette
SRAM Rival ETAP AXS 12S
Crank
SRAM Rival ETAP AXS 12S
Bottom Bracket
SRAM Rival ETAP AXS 12S
Chain
SRAM Rival ETAP AXS 12S
Wheels
Rims
FULCRUM Racing 800DB*
Brakes
Brakes
Front: SRAM Rival 2 pistons, 160mm rotor, Rear: SRAM Rival 2 pistons, 140mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
Jaguar XA Aero TiCR
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

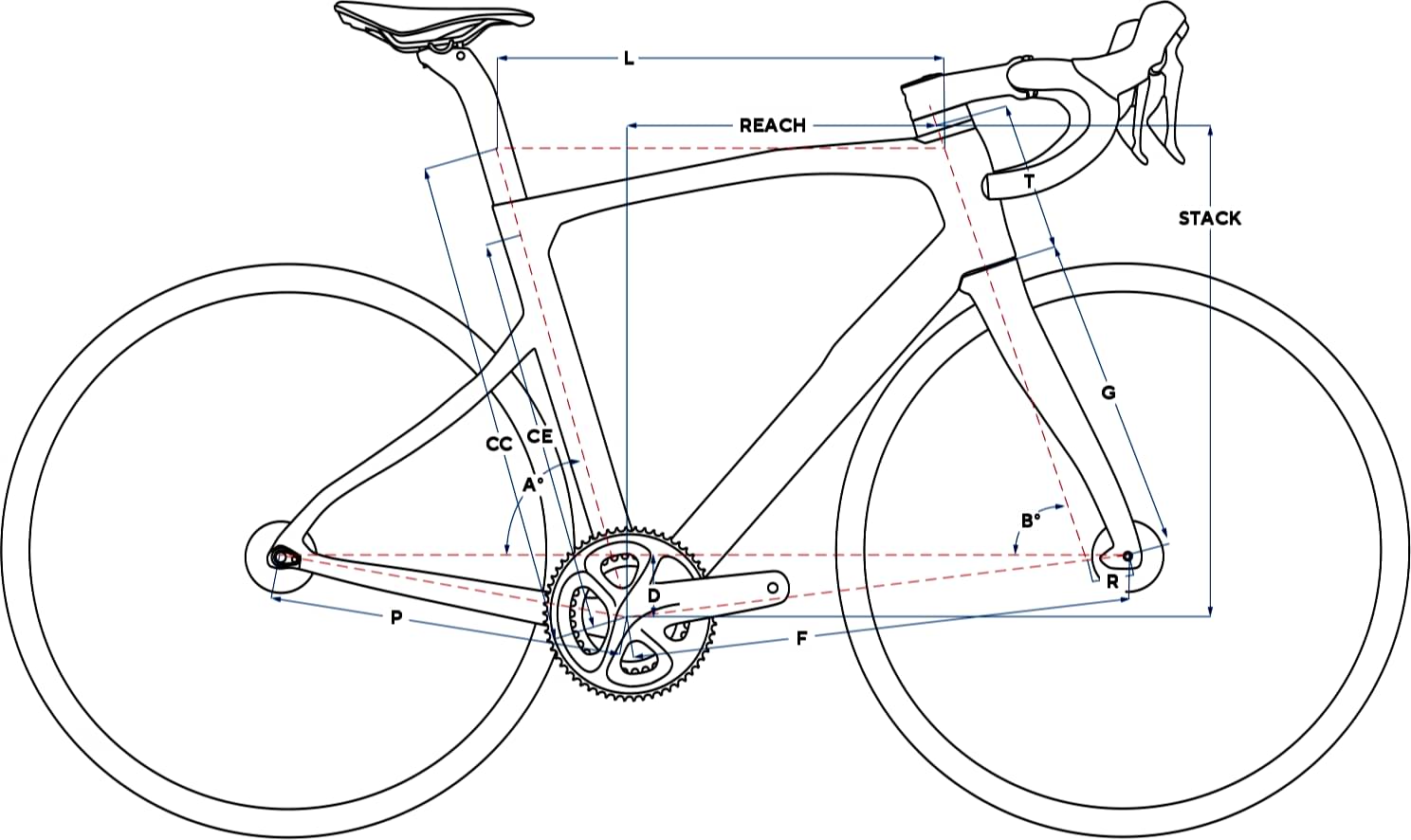

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.543 mm | 1.531 mm | 1.526 mm | 1.532 mm | 1.546 mm | 1.561 mm | 1.584 mm | 1.615 mm | 1.65 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 527.5 mm | 539.2 mm | 552.4 mm | 564.4 mm | 575.8 mm | 588.2 mm | 602.4 mm | 620.3 mm | 640.4 mm |
| Reach | 341.9 mm | 352.1 mm | 361.9 mm | 368.5 mm | 372.5 mm | 376.7 mm | 380.2 mm | 384.1 mm | 388.1 mm |
| Top Tube Length | 492 mm | 509 mm | 525 mm | 536 mm | 545 mm | 555 mm | 565 mm | 577 mm | 590 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 125 mm | 130 mm | 142 mm | 151 mm | 161 mm | 173 mm | 187 mm | 211 mm | 232 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
