Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Drivetrain
Rear Derailleur
Shimano 105 Di2 12S
Front Derailleur
Shimano 105 Di2 12S
Cassette
Shimano 105 Di2 12S
Crank
Shimano 105 Di2 12S
Bottom Bracket
shimano 105
Chain
Shimano 105 Di2 12S
Wheels
Rims
FULCRUM Racing 800DB*
Tires
Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
Brakes
Brakes
Front: Shimano 105 2 pistons caliper, 160mm rotor, Rear: Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
MOST Jaguar XA TiCR
Fit data

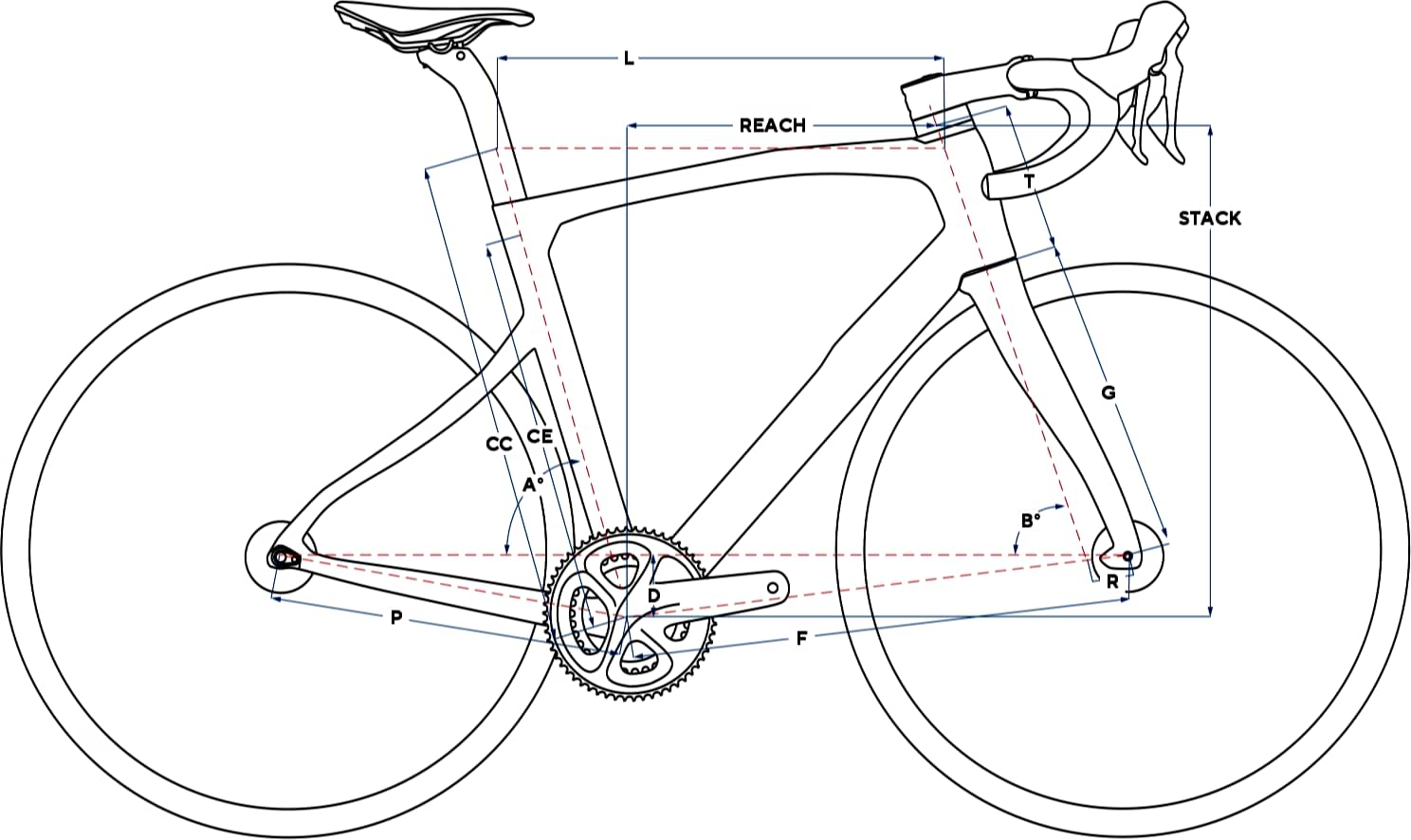

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.54 mm | 1.54 mm | 1.56 mm | 1.58 mm | 1.6 mm | 1.63 mm | 1.67 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 518.5 mm | 530.2 mm | 543.4 mm | 555.4 mm | 566.8 mm | 579.2 mm | 593.4 mm | 611.3 mm | 631.4 mm |
| Reach | 332.9 mm | 343.1 mm | 352.9 mm | 359.5 mm | 363.5 mm | 367.7 mm | 371.2 mm | 375.1 mm | 379.1 mm |
| Top Tube Length | 483 mm | 500 mm | 516 mm | 527 mm | 536 mm | 546 mm | 556 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 123 mm | 128 mm | 140 mm | 149 mm | 159 mm | 171 mm | 185 mm | 209 mm | 230 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

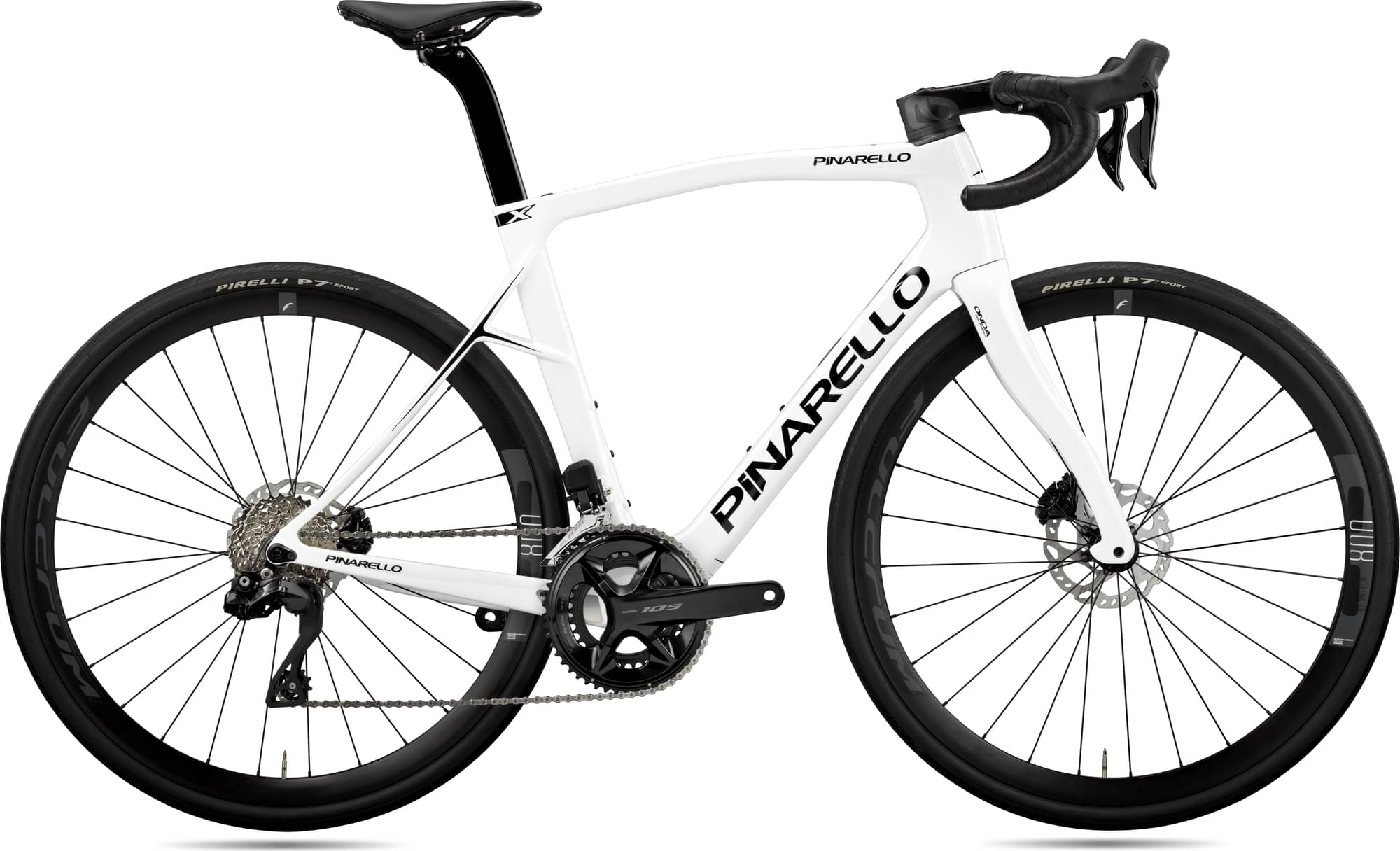

X5 SHIMANO 105 Di2 belongs to the Pinarello X5 model. Pinarello launched 2 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the X5 SHIMANO 105 Di2 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello X5 SHIMANO 105 Di2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
