Bike details
Overview
Key information split into simple groups.

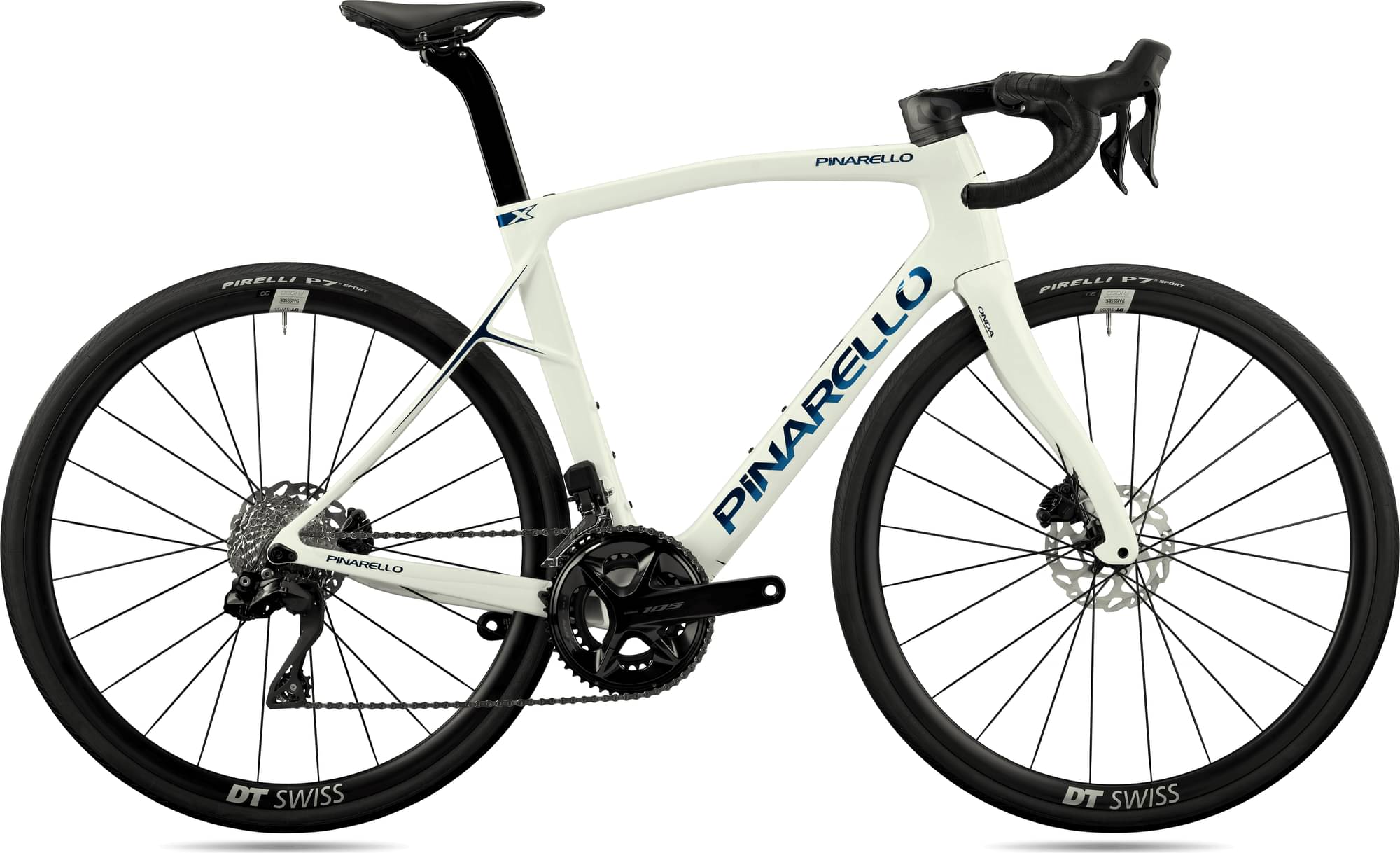

Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved
Drivetrain
Rear Derailleur
Shimano 105 Di2 12S
Front Derailleur
Shimano 105 Di2 12S
Cassette
Shimano 105 Di2 12S
Crank
Shimano 105 Di2 12S
Bottom Bracket
shimano 105
Chain
Shimano 105 Di2 12S
Wheels
Rims
FULCRUM Racing 800DB*
Tires
Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
Brakes
Brakes
Front: Shimano 105 2 pistons caliper, 160mm rotor, Rear: Shimano 105 2 pistons caliper, 160mm rotor
Cockpit
Stem
Tiger Aero Alu TiCR
Handlebar
MOST Jaguar XA TiCR
Fit data

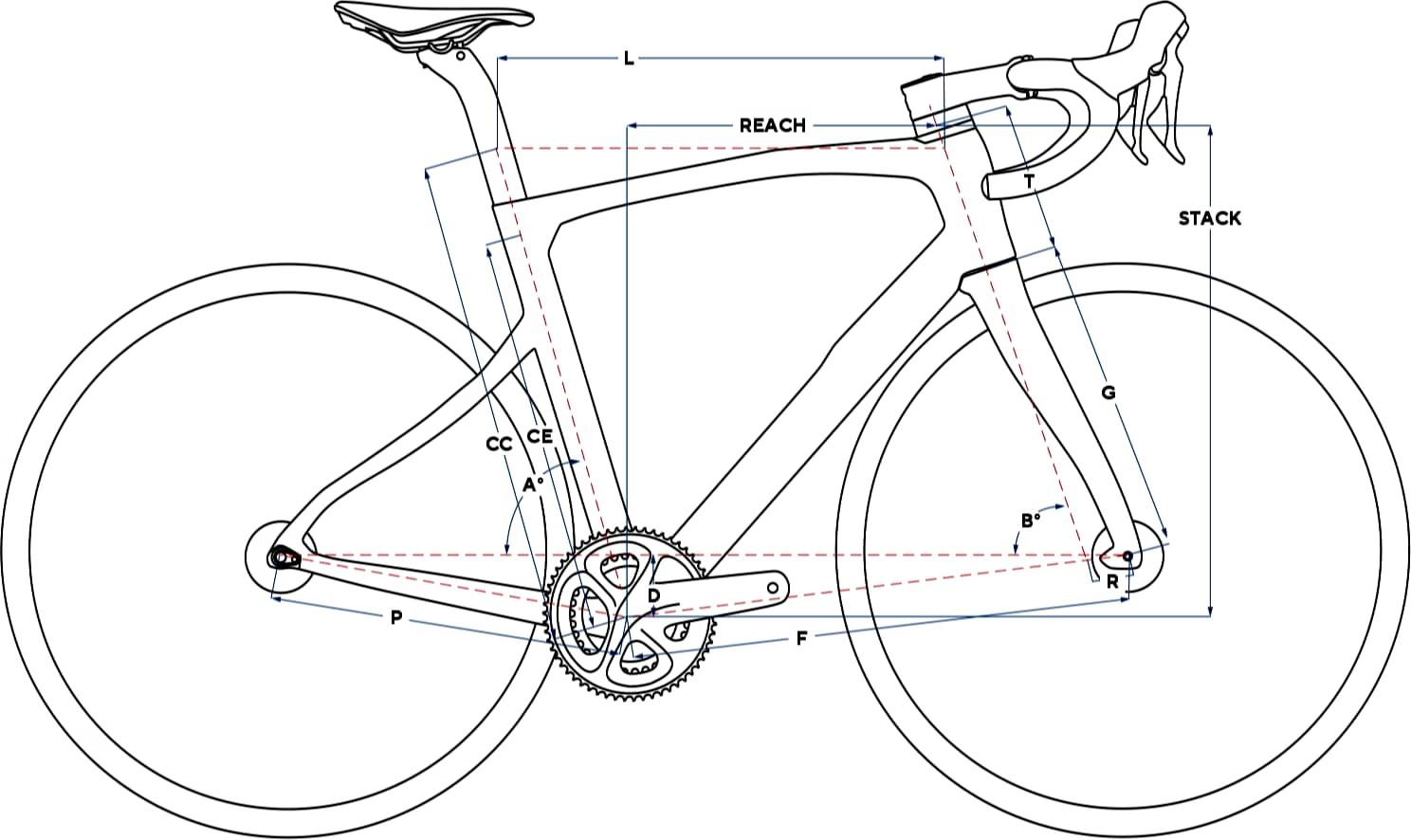

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.543 mm | 1.531 mm | 1.526 mm | 1.532 mm | 1.546 mm | 1.561 mm | 1.584 mm | 1.615 mm | 1.65 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 527.5 mm | 539.2 mm | 552.4 mm | 564.4 mm | 575.8 mm | 588.2 mm | 602.4 mm | 620.3 mm | 640.4 mm |
| Reach | 341.9 mm | 352.1 mm | 361.9 mm | 368.5 mm | 372.5 mm | 376.7 mm | 380.2 mm | 384.1 mm | 388.1 mm |
| Top Tube Length | 492 mm | 509 mm | 525 mm | 536 mm | 545 mm | 555 mm | 565 mm | 577 mm | 590 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 123 mm | 128 mm | 140 mm | 149 mm | 159 mm | 171 mm | 185 mm | 209 mm | 230 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
