Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
Drivetrain
Front Derailleur
Shimano Ultegra Di2 FD R8150 12S
Cassette
Shimano Ultegra Di2 FD R8150 12S
Crank
Shimano Ultegra Di2 FD R8150 12S
Bottom Bracket
shimano ultegra
Chain
Shimano Ultegra Di2 FD R8150 12S
Wheels
Rims
MOST Ultrafast 40*
Tires
Pirelli P7 Sport 35-622 black 60 tpi Nylon breaker
Brakes
Brakes
Front: Shimano Ultegra R8150, 2 pistons caliper, 160mm rotor, Rear: Shimano Ultegra R8150, 2 pistons caliper, 140mm rotor
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

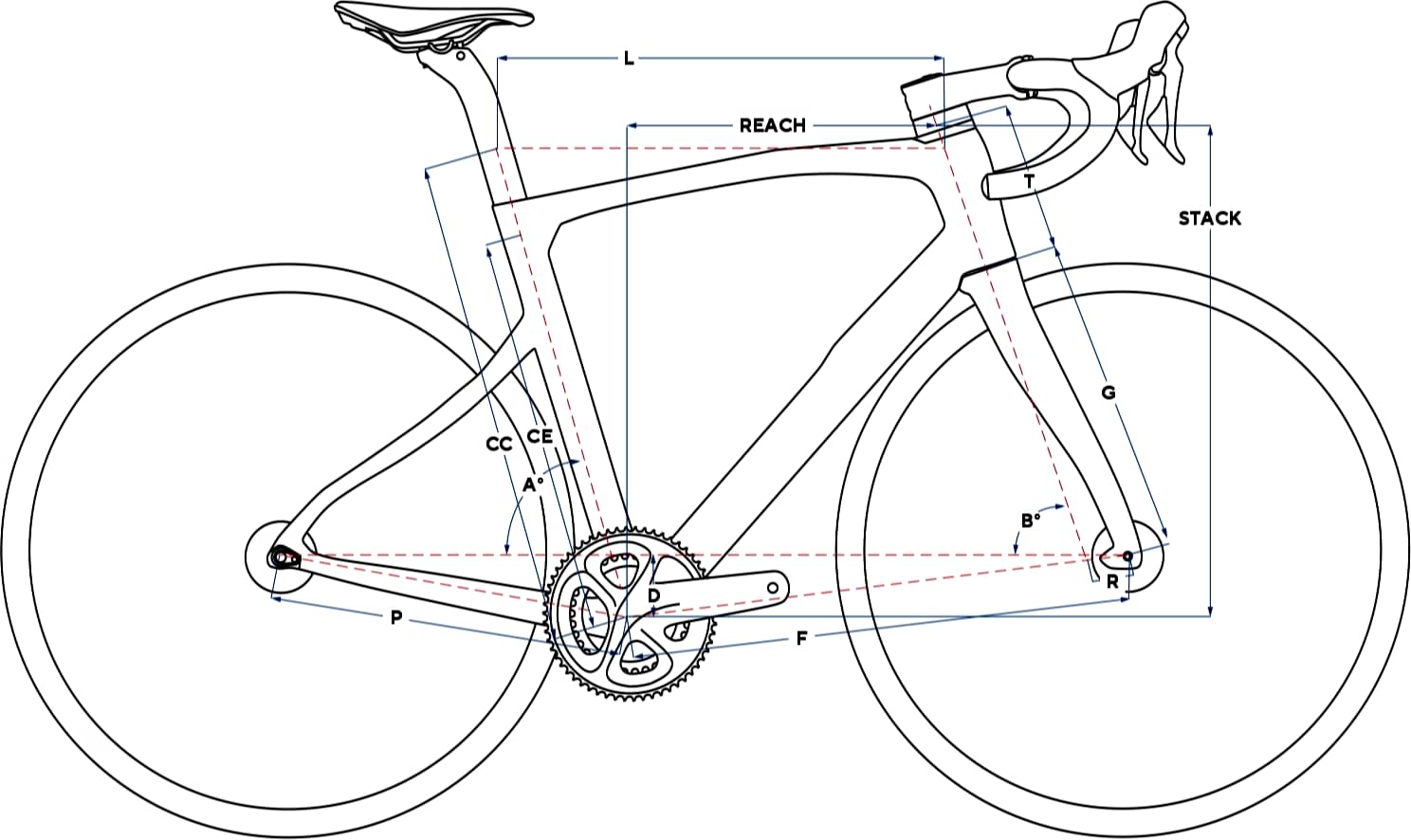

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.54 mm | 1.54 mm | 1.56 mm | 1.58 mm | 1.6 mm | 1.63 mm | 1.67 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 518.5 mm | 530.2 mm | 543.4 mm | 555.4 mm | 566.8 mm | 579.2 mm | 593.4 mm | 611.3 mm | 631.4 mm |
| Reach | 332.9 mm | 343.1 mm | 352.9 mm | 359.5 mm | 363.5 mm | 367.7 mm | 371.2 mm | 375.1 mm | 379.1 mm |
| Top Tube Length | 483 mm | 500 mm | 516 mm | 527 mm | 536 mm | 546 mm | 556 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 123 mm | 128 mm | 140 mm | 149 mm | 159 mm | 171 mm | 185 mm | 209 mm | 230 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
X7 SHIMANO ULTEGRA Di2 belongs to the Pinarello X7 model. 2 bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
X7 SHIMANO ULTEGRA Di2 components
Fork material
X7 SHIMANO ULTEGRA Di2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on X7 SHIMANO ULTEGRA Di2 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello X7 SHIMANO ULTEGRA Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
