Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TorayCa T900 UD, TiCR™ cable routing, Italian BB, UCI approved
Drivetrain
Front Derailleur
Shimano Dura Ace Di2 FD-R9200 12s
Cassette
Shimano Dura Ace Di2 FD-R9200 12s
Crank
Shimano Dura Ace Di2 FD-R9200 12s
Bottom Bracket
Shimano Dura Ace SM-BB9200
Chain
Shimano Dura Ace CN-HG 12S
Wheels
Rims
MOST Ultrafast 40*
Tires
Pirelli P ZERO Race TLR 35-622
Brakes
Brakes
Front: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor, Rear: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Seatpost
Pinarello Aero Seatpost
Fit data

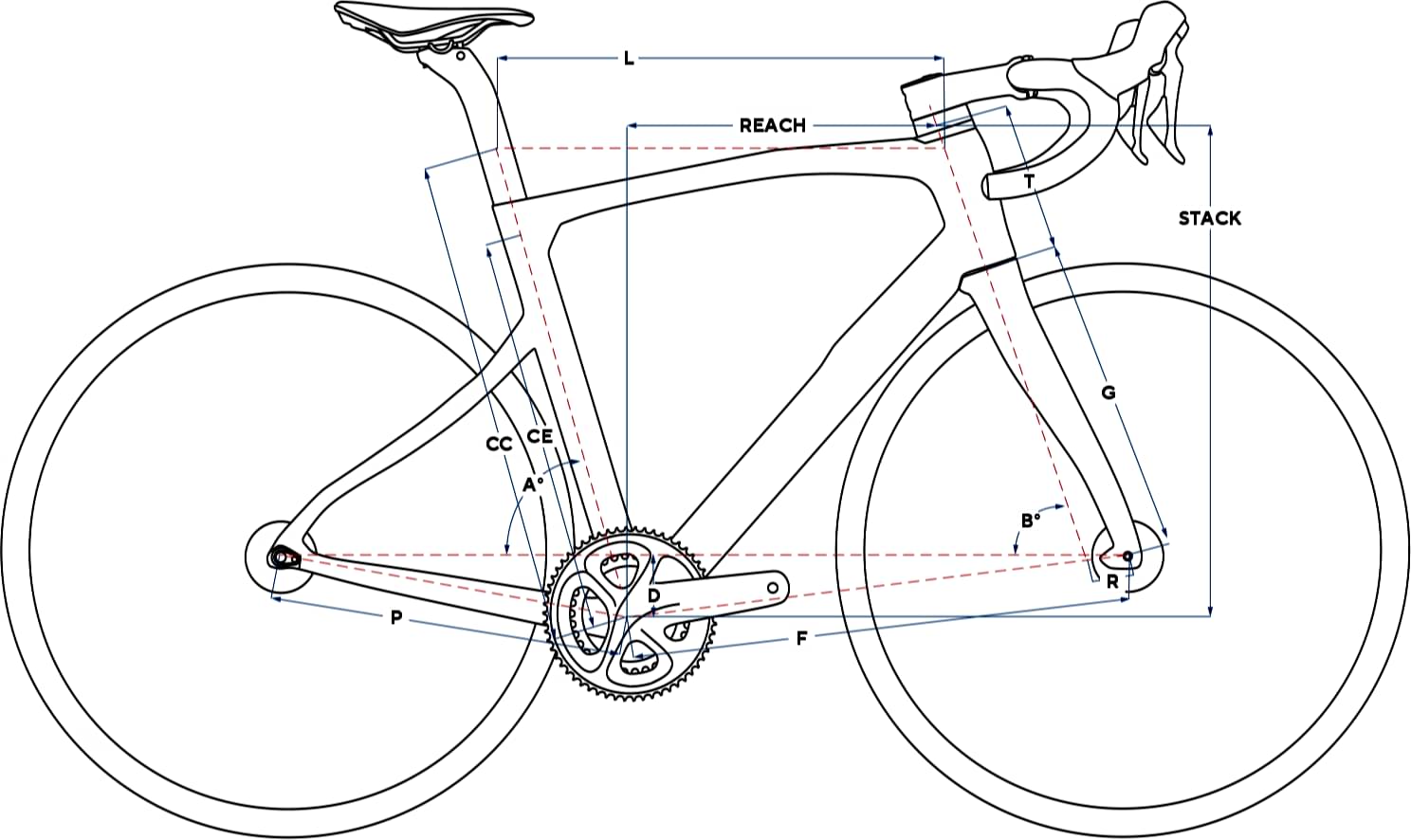

Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 46cm | 49cm | 51.5cm | 53cm | 54.5cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.55 mm | 1.54 mm | 1.54 mm | 1.56 mm | 1.58 mm | 1.6 mm | 1.63 mm | 1.67 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 52 mm | 52 mm | 52 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 518.5 mm | 530.2 mm | 543.4 mm | 555.4 mm | 566.8 mm | 579.2 mm | 593.4 mm | 611.3 mm | 631.4 mm |
| Reach | 332.9 mm | 343.1 mm | 352.9 mm | 359.5 mm | 363.5 mm | 367.7 mm | 371.2 mm | 375.1 mm | 379.1 mm |
| Top Tube Length | 483 mm | 500 mm | 516 mm | 527 mm | 536 mm | 546 mm | 556 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75.25 ° | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.25 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 425 mm | 450 mm | 470 mm | 495 mm | 510 mm | 525 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 123 mm | 128 mm | 140 mm | 149 mm | 159 mm | 171 mm | 185 mm | 209 mm | 230 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm | 413 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

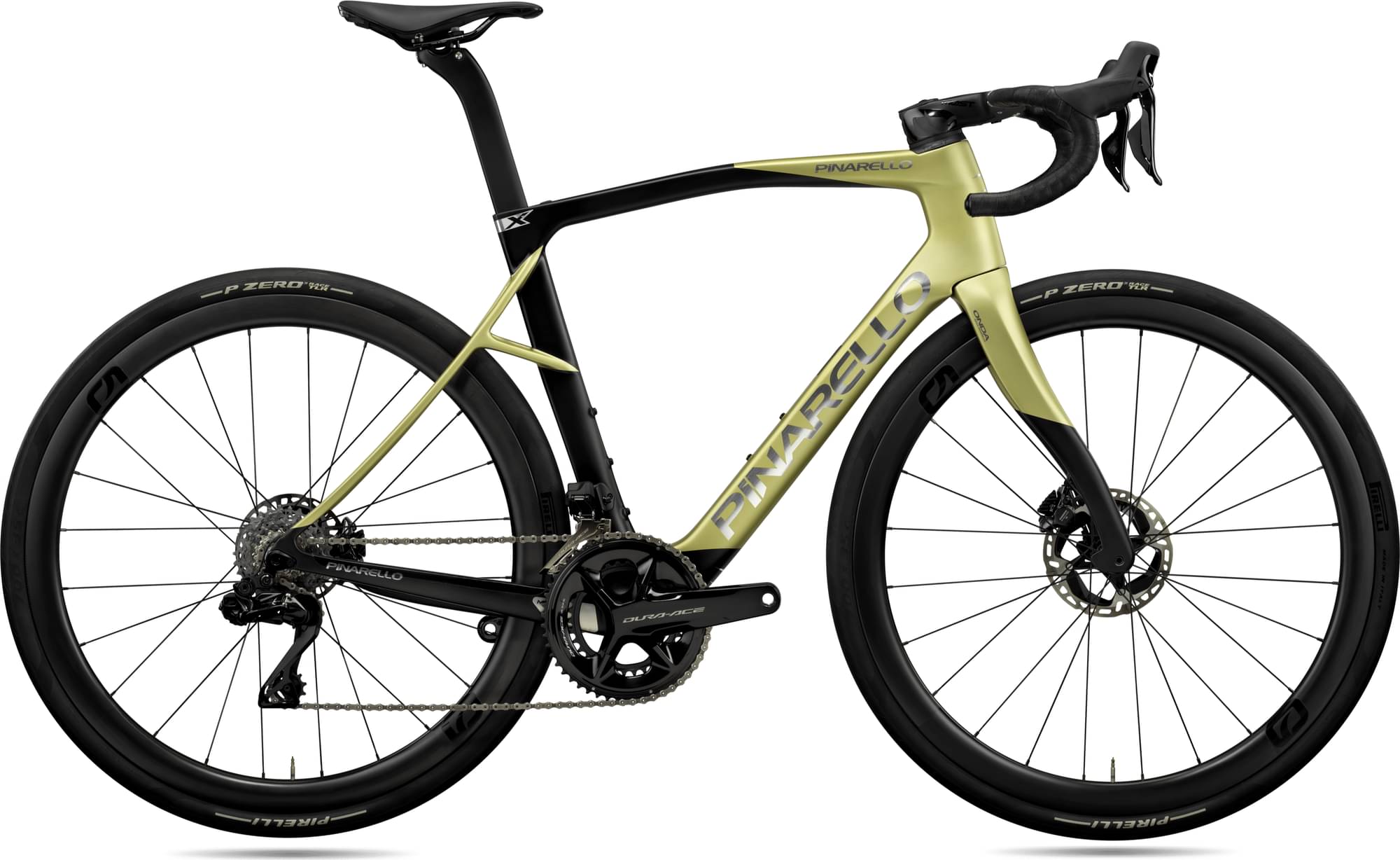

X9 SHIMANO DURA ACE Di2 belongs to the Pinarello X9 model. Pinarello released 1 bike variation of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The X9 SHIMANO DURA ACE Di2 2024 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello X9 SHIMANO DURA ACE Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
