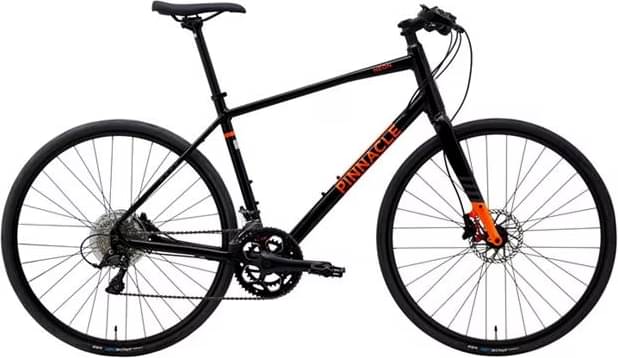

Pinnacle Neon 1 Hybrid Bike 2024
2024 Urban
Estimate price |
1,287$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminium frame
Suspension Fork
6066 aluminium fork
Drivetrain
Rear Derailleur
Shimano Sora RD-R3000
Front Derailleur
Shimano Sora FD-R3000
Shift Levers
Shimano Sora SL-R3000
Cassette
Shimano CS-HG400 9-Speed
Crank
Shimano FC-R345, 170MM, 50TX34T
Bottom Bracket
Bottom Bracket: Octalink, BB-ES300
Chain
KMC X-9
Pedals
Black plastic toe-cage
Wheels
Front Hub
Joytech alloy 32H, 100mm/135mm, 6-Bolt disc
Rear Hub
Joytech alloy 32H, 100mm/135mm, 6-Bolt disc
Rims
Rims: Double wall alloy, 700C, 32H
Tires
Tyres: Vee Apache Chief, 700x30C
Brakes
Brakes
Clarks Clout hydraulic disc brakes offer powerful braking in all weathers
Brake Levers
Clarks Clout
Cockpit
Stem
Alloy, 75mm, 31.8mm, 6 degree rise
Handlebar
Alloy, 640mm, 31.8mm
Grips
Velo gel black
Headset
FSA Orbit C40
Seat
Saddle
WTB Volt
Seatpost
Alloy, 27.2X350MM
