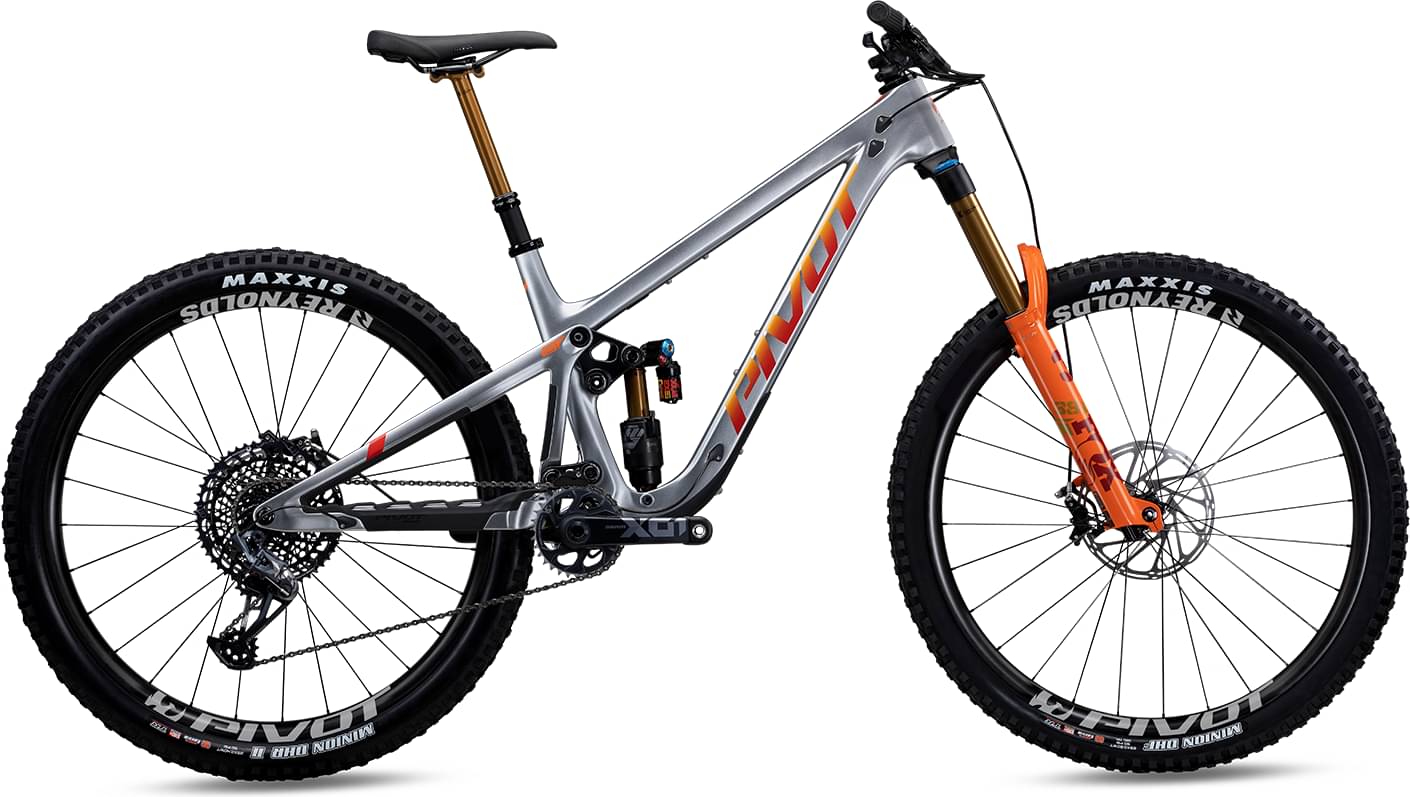

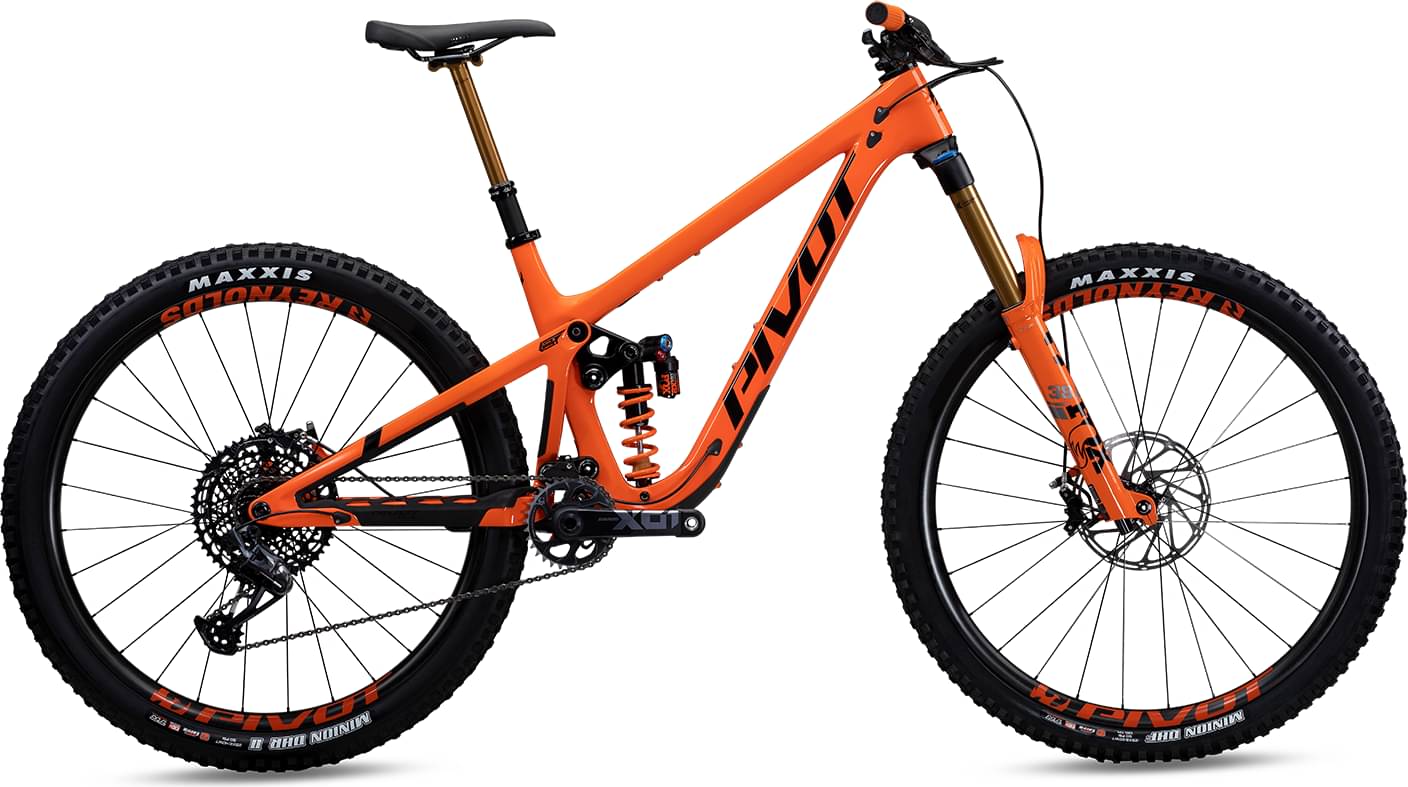

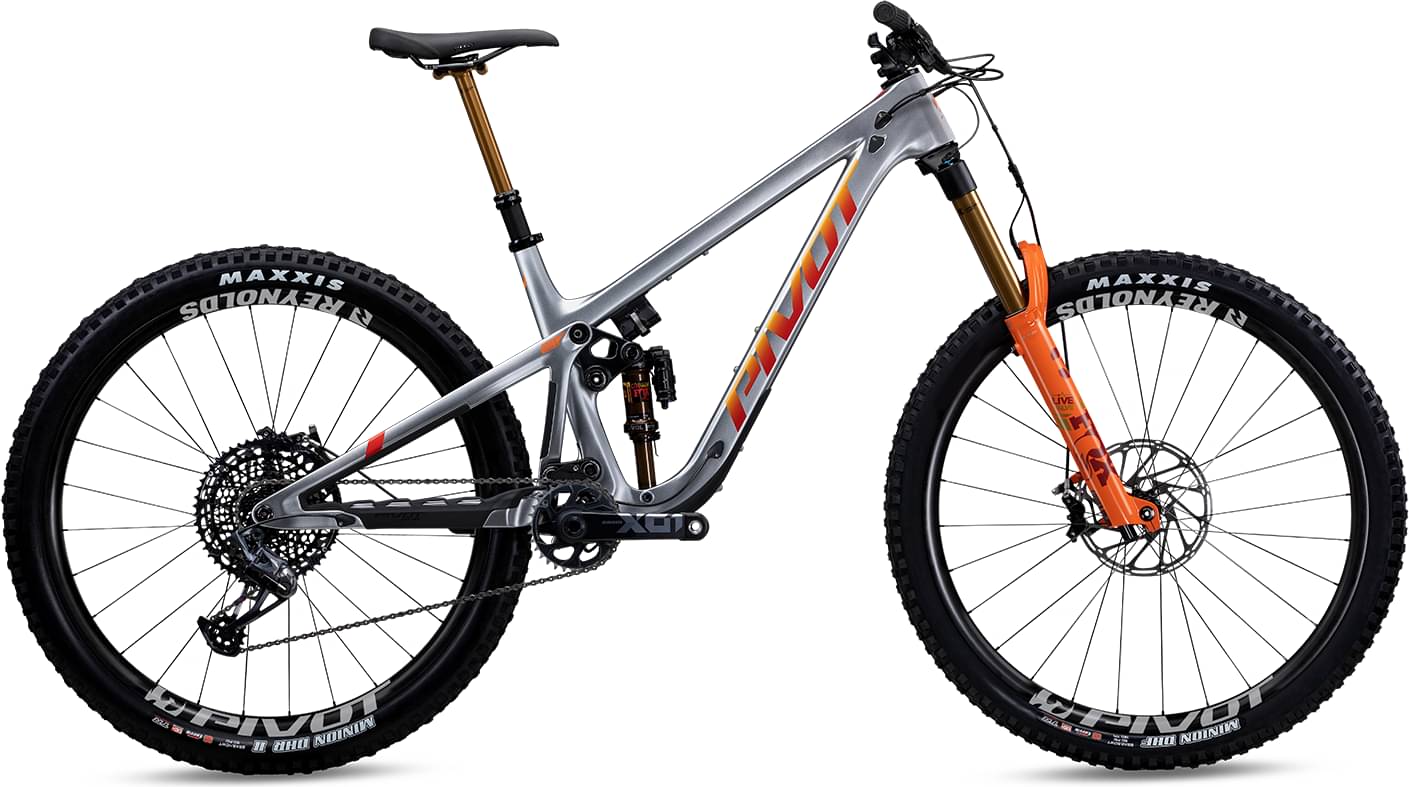

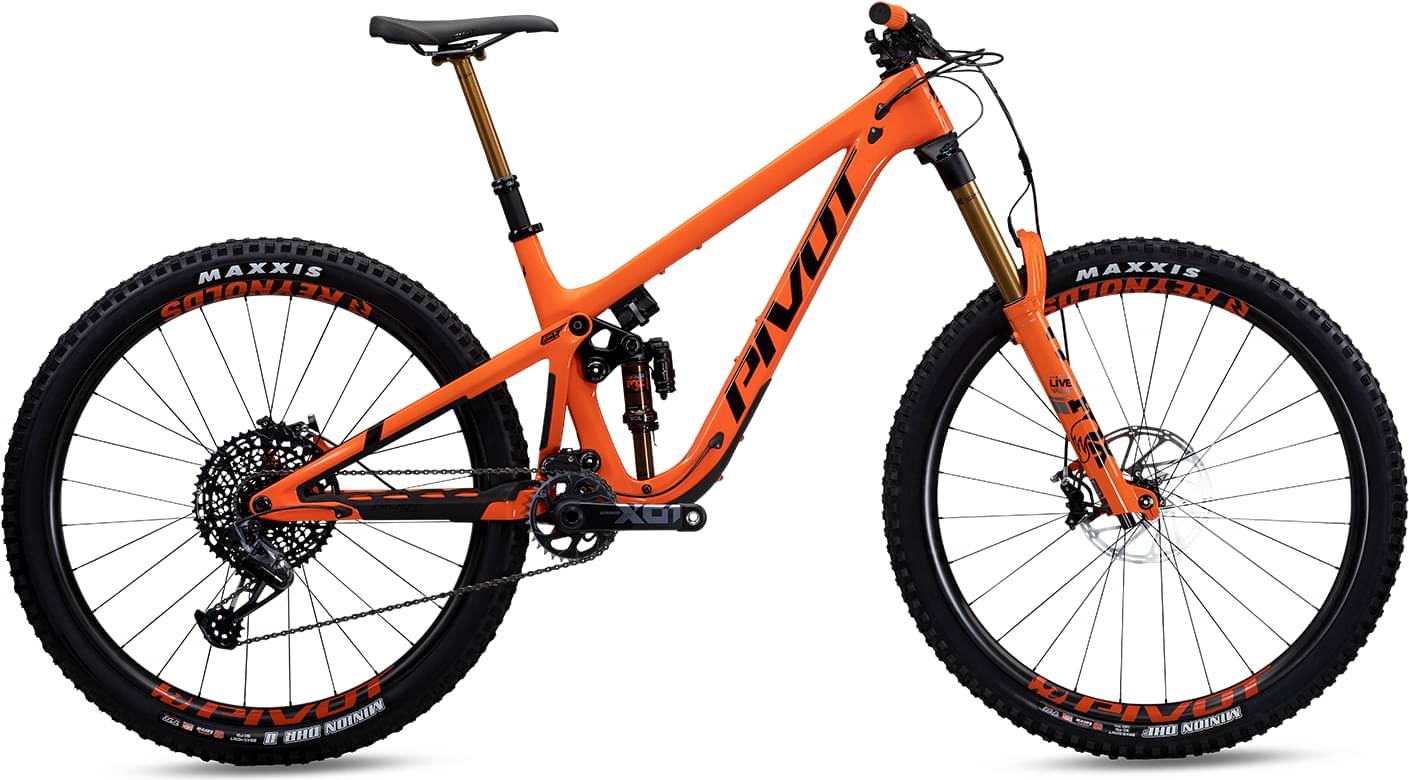

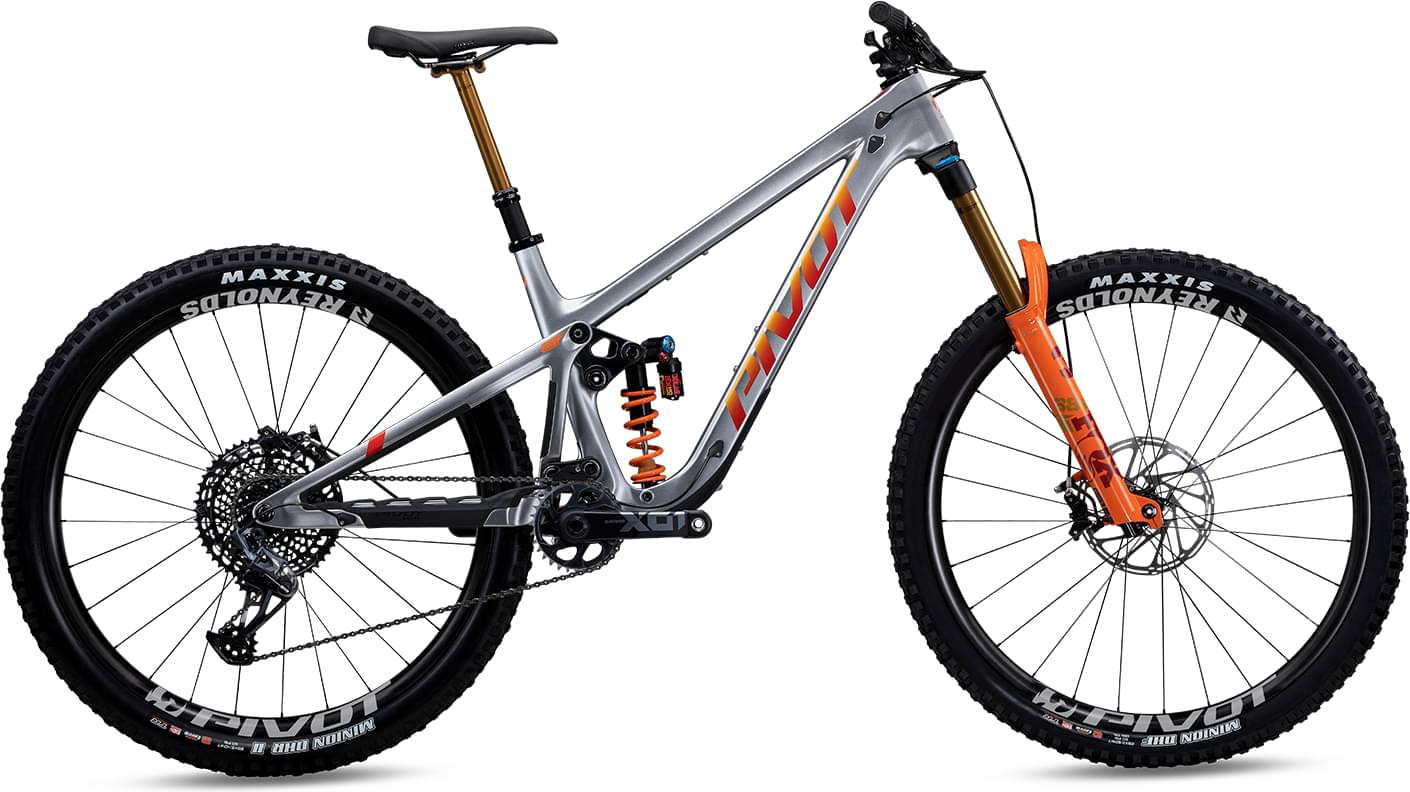

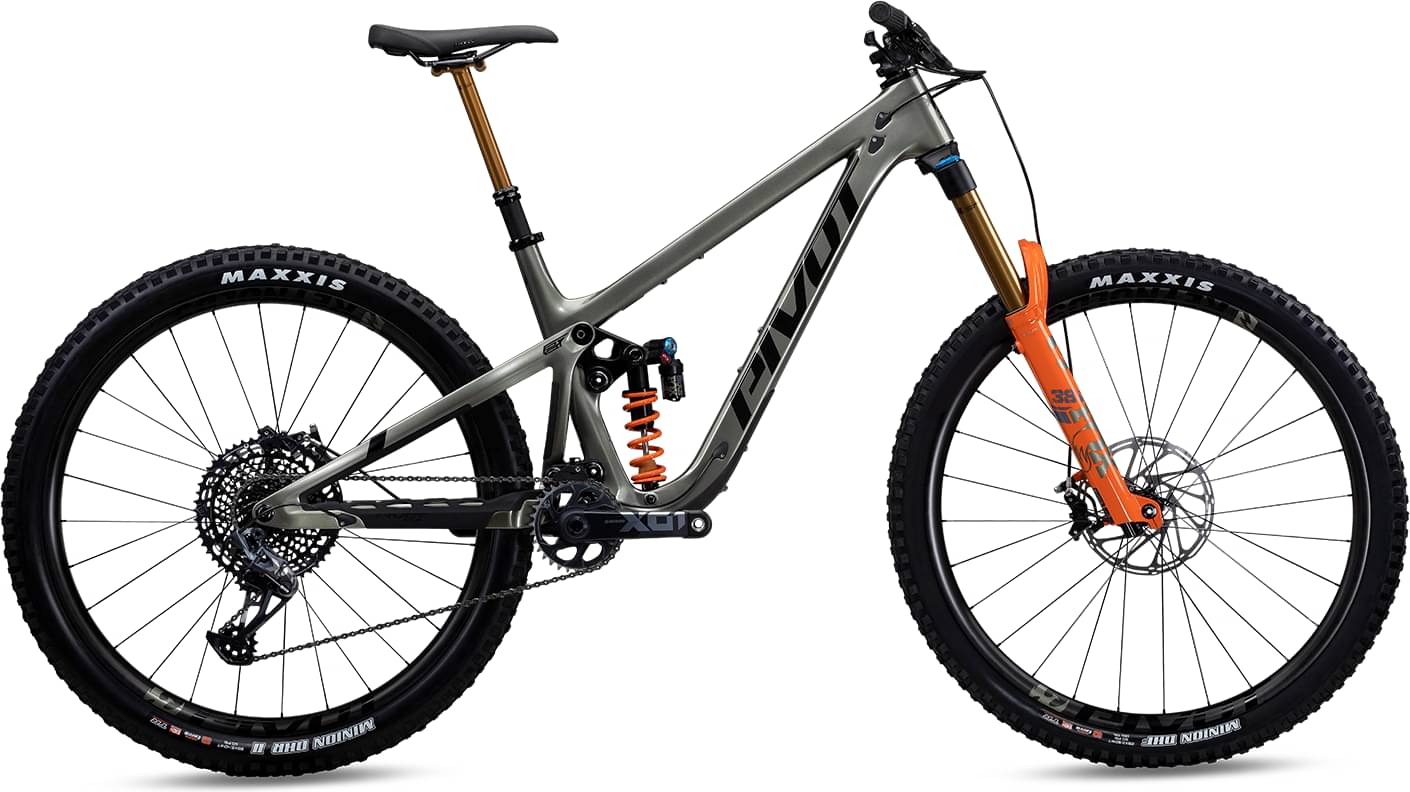

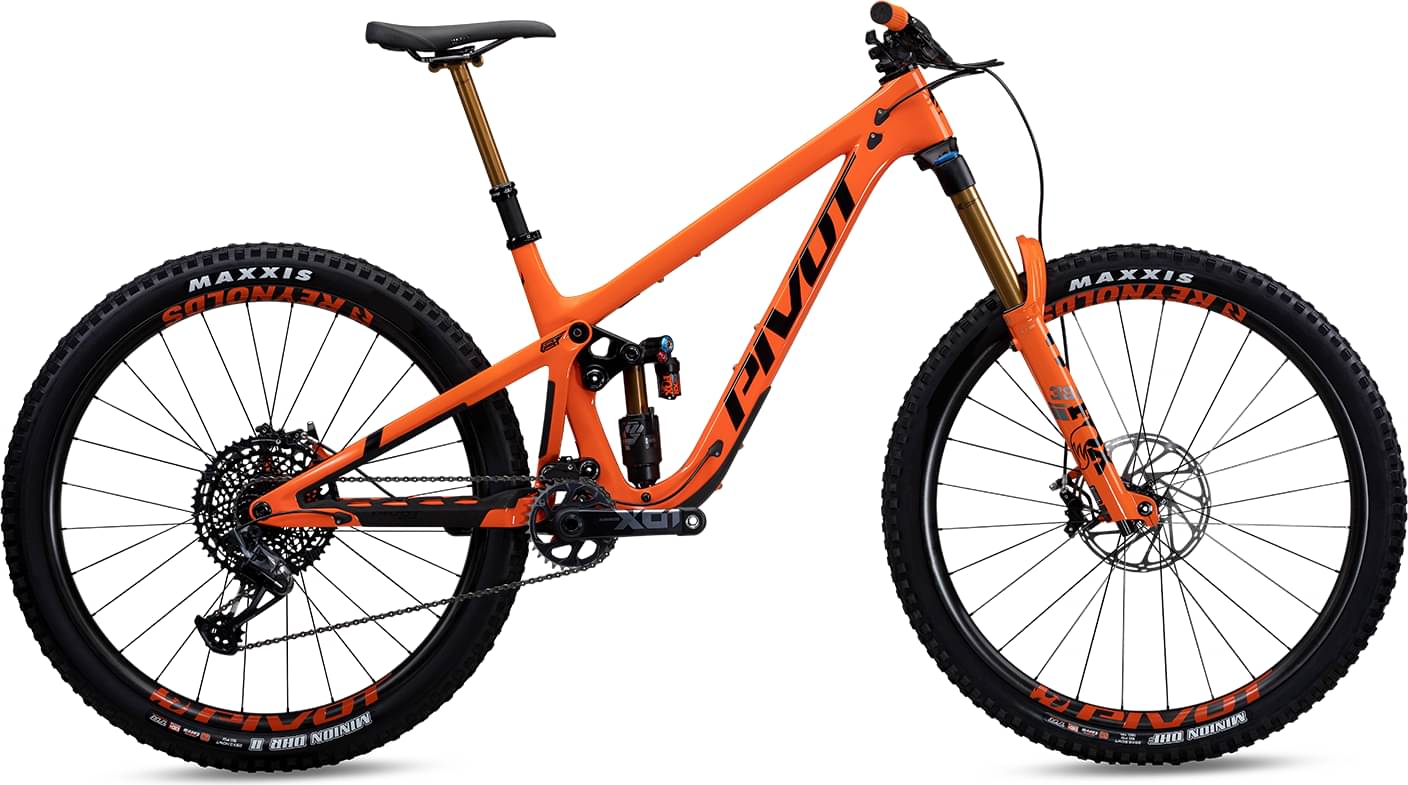

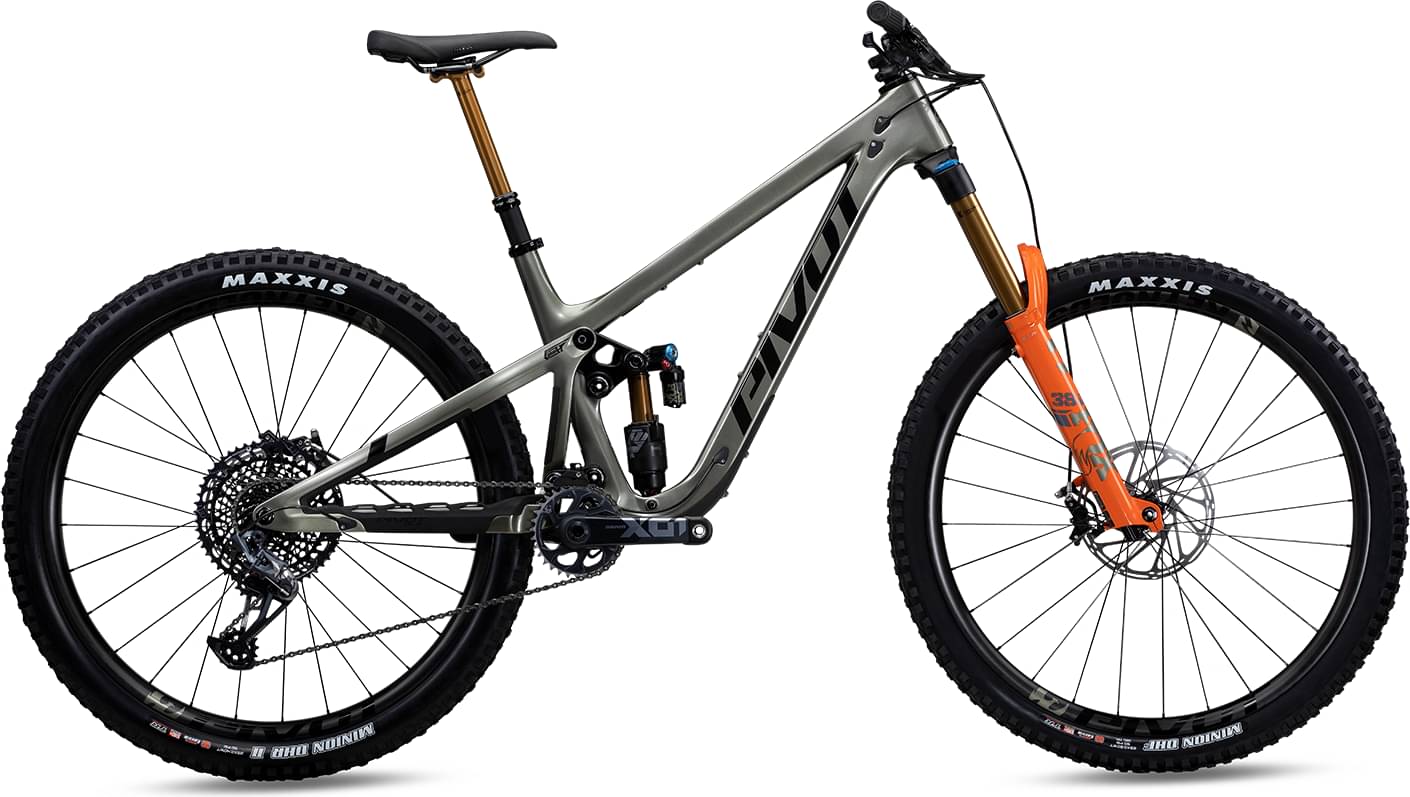

Pivot FIREBIRD Pro X01 w/ Carbon Wheels 2023
2023 Mountain
Estimate price |
12,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Factory Float 38
-
Groupset X01 Eagle -
Suspension Full, Electronic -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Firebird
Suspension Fork
Fox Factory 38 29", 44mm offset, FIT LIVE - 170mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
Newmen Carbon Advanced- 29", 15x110 F/12x157 R
Tires
Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Code RSC 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.34 mm | 1.303 mm | 1.265 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 777 mm | 806 mm | 830 mm | 856 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 141 mm | 141 mm | 141 mm | 141 mm |
| Stack | 615 mm | 627 mm | 636 mm | 645 mm |
| Reach | 445 mm | 468 mm | 488 mm | 510 mm |
| Top Tube Length | 598 mm | 624 mm | 641 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76.5 ° | 77 ° | 77 ° |
| Seat Tube Length | 375 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 108 mm | 118 mm | 128 mm |
| Chainstay Length | 431 mm | 434 mm | 438 mm | 445 mm |
| Wheelbase | 1207 mm | 1239 mm | 1267 mm | 1300 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm | 20 mm |
| Standover Height | 662 mm | 672 mm | 693 mm | 704 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
