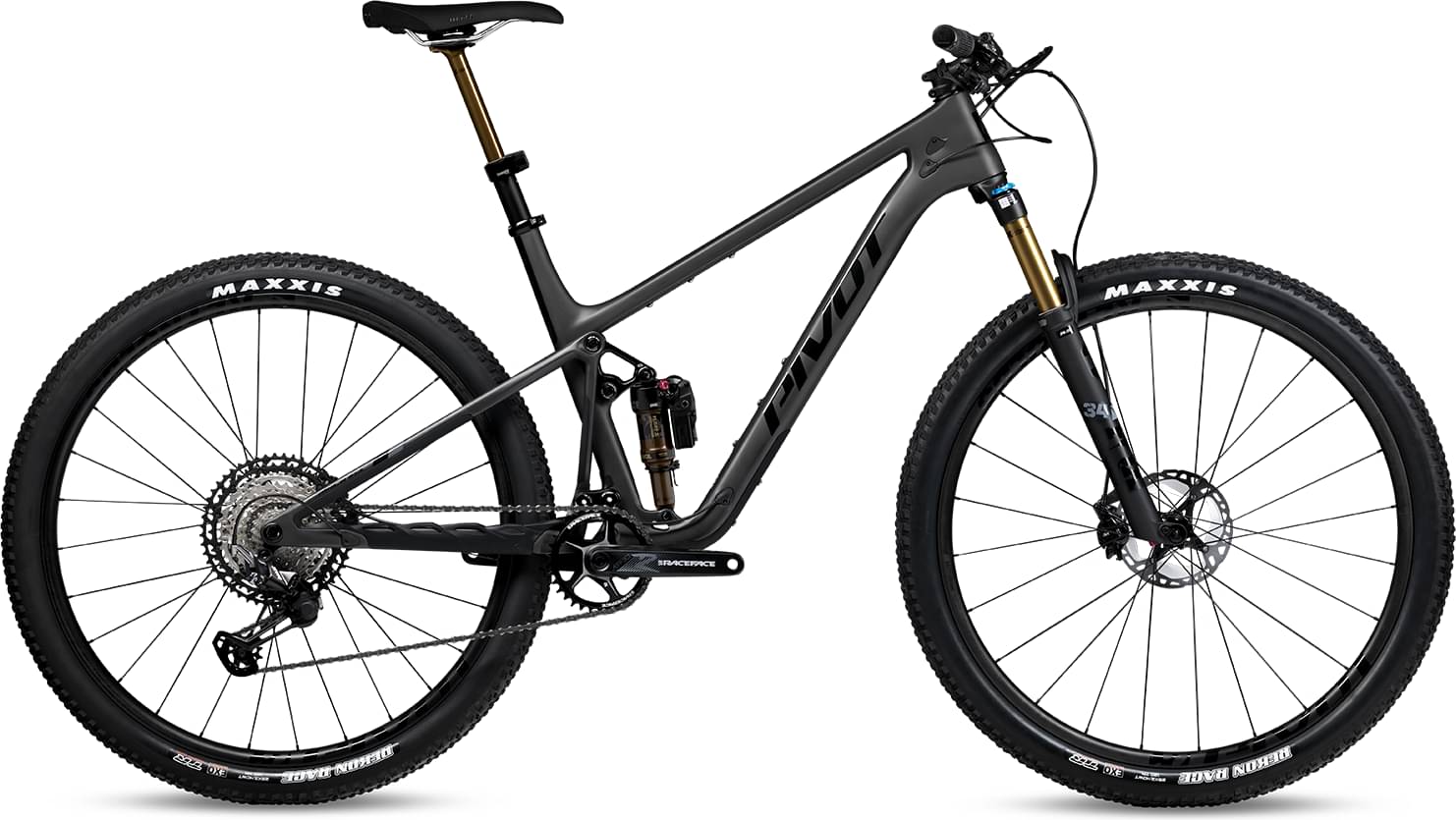

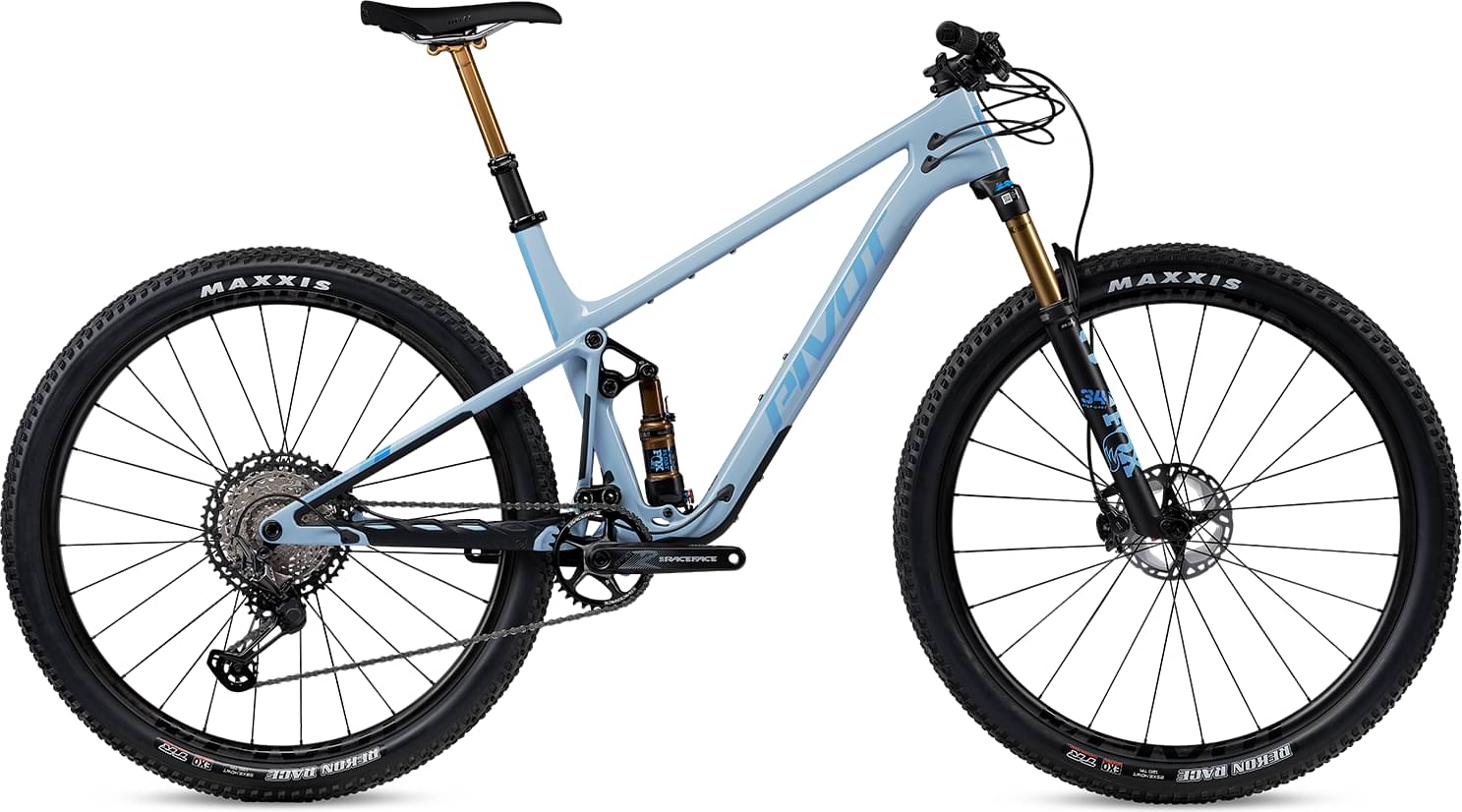

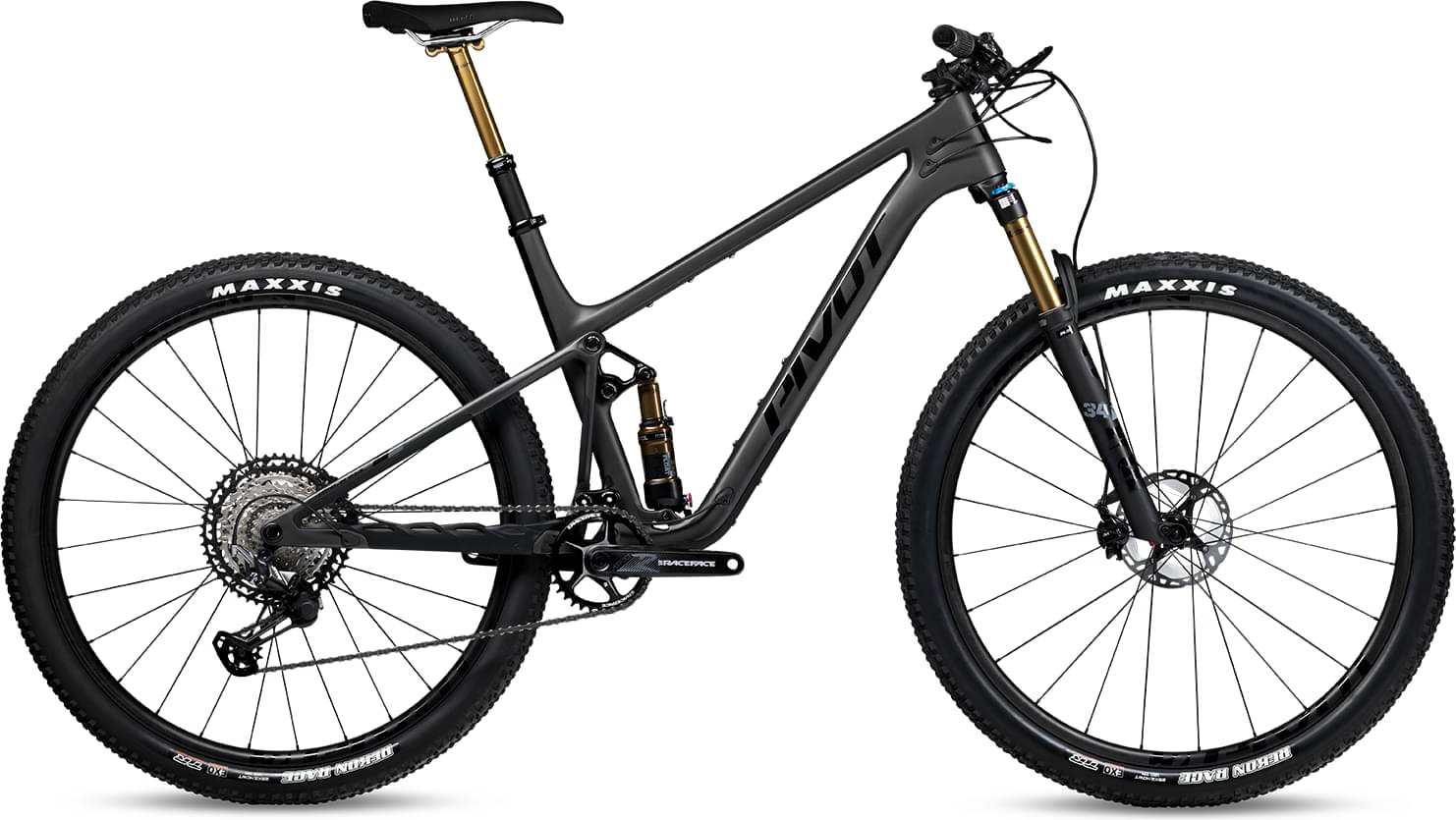

Pivot MACH 4 SL Pro XT/XTR w/ Carbon Wheels 2024
2024 Mountain
Estimate price |
10,818$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 95mm -
Fork Fox Factory Float 34
-
Groupset XTR, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29", 44mm offset, FIT4 - 120mm
Rear Shock
Fox Factory Float
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 34t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29", 15x110 F/12x148 R
Tires
MAXXIS REKON 29X2.4 3C TR EXO 120TPI, Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XT M8100 2-piston
Cockpit
Stem
Phoenix Team XC/Trail - 60mm
Handlebar
Phoenix Team Flat Carbon - 760mm (XS,SM), Phoenix Team Carbon - 760mm (MD-XL)
Grips
Phoenix Factory Lock-On, TwistLoc Available (excludes USA)
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Pro Volt (Narrow Width)
Seatpost
Fox Transfer Factory Series 125mm (XS-SM), 150mm (MD-LG), 210mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.365 mm | 1.32 mm | 1.28 mm | 1.257 mm |
| Bottom Bracket Height | 327 mm | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 673 mm | 690 mm | 721 mm | 751 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 104 mm | 104 mm | 104 mm | 105 mm | 104 mm |
| Stack | 577 mm | 580 mm | 594 mm | 608 mm | 622 mm |
| Reach | 410 mm | 425 mm | 450 mm | 475 mm | 495 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 638 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 355 mm | 394 mm | 419 mm | 460 mm | 505 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1101 mm | 1118 mm | 1149 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 637 mm | 644 mm | 672 mm | 668 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
