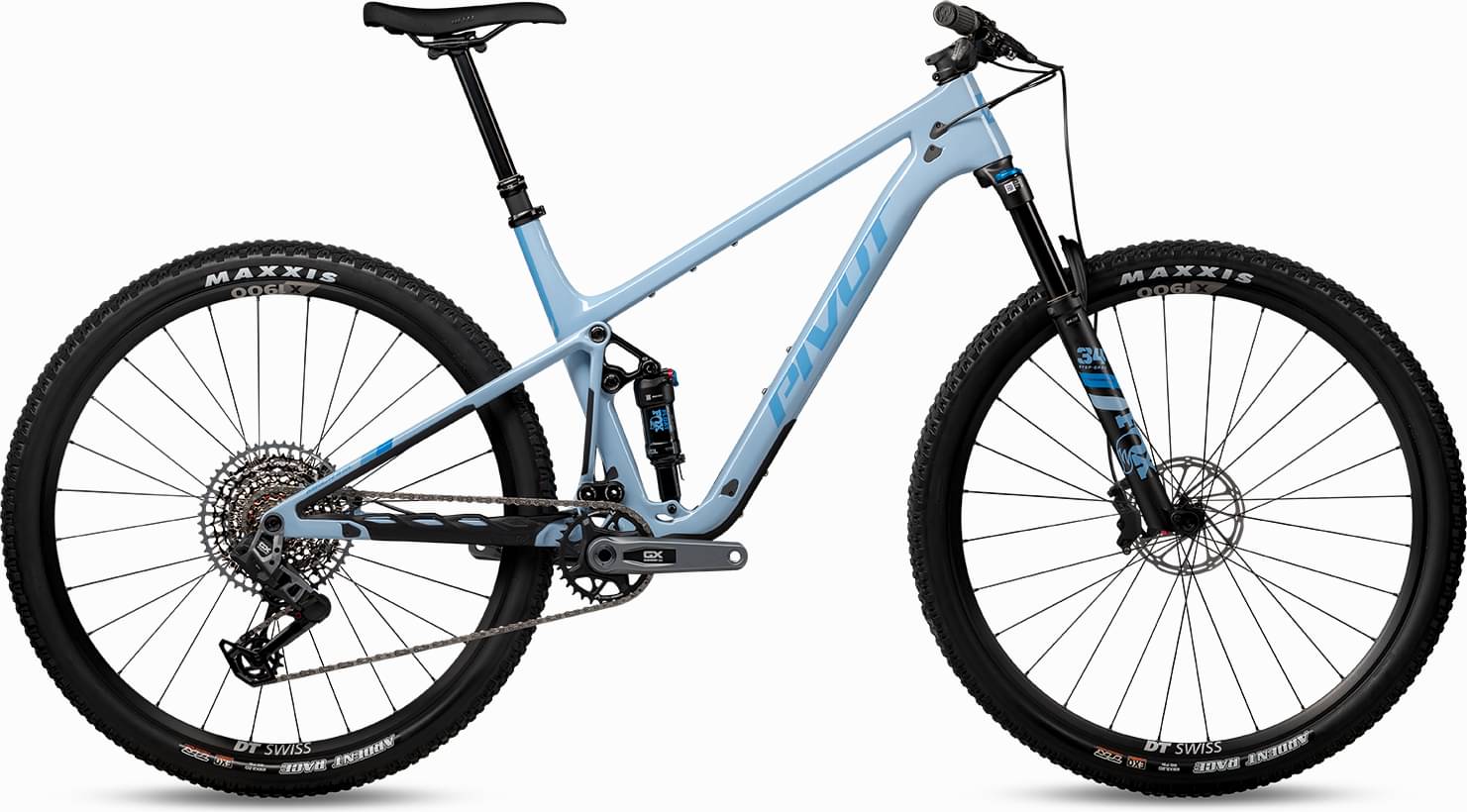

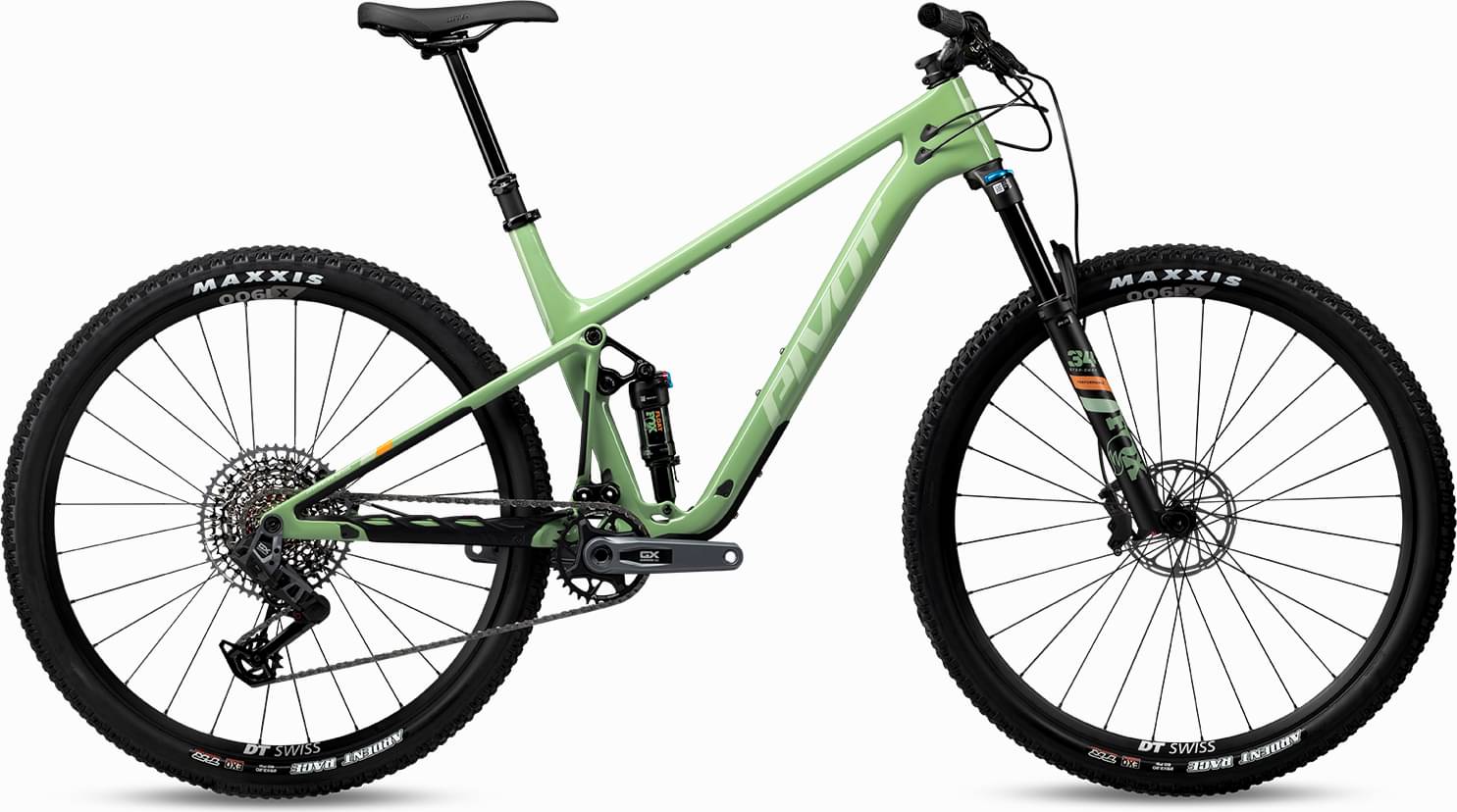

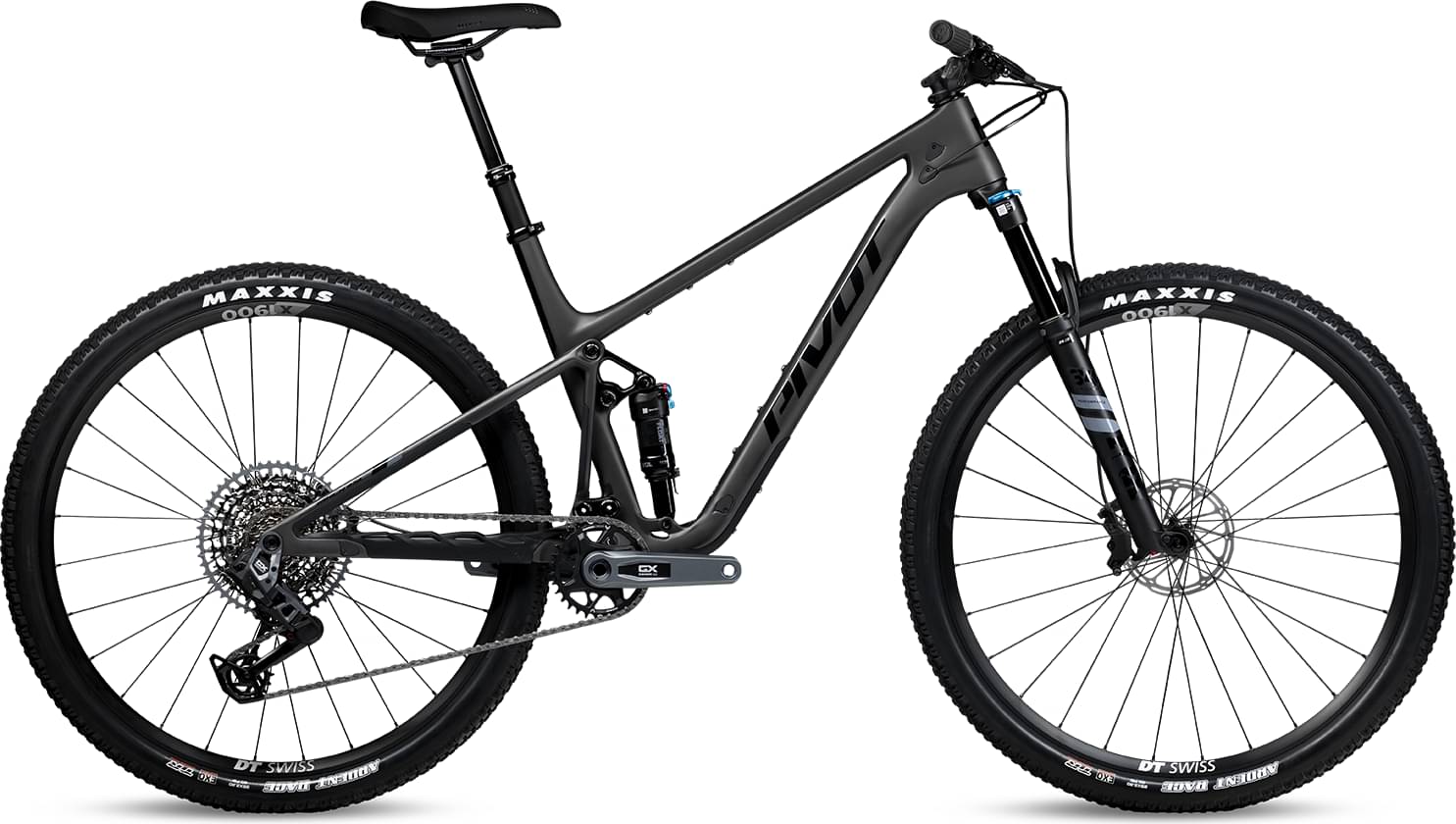

Pivot MACH 4 SL Ride GX Eagle Transmission 2024
2024 Mountain
Estimate price |
8,724$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 120mm -
Travel Rear 95mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Performance Stepcast 34 29", 44mm offset, GRIP - 120mm
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM GX 1275 Eagle Transmission 10-52t
Crank
SRAM GX Eagle DUB 32t - 170mm(XS-MD), 175mm(LG-XL)
Chain
SRAM GX Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss X1900 w/ DT Swiss 370 hub, 25mm - 29", 15x110 F/12x148 R
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI, Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
SRAM DB8 4-piston
Cockpit
Stem
Phoenix Team XC/Trail - 60mm
Handlebar
Phoenix Race Low Rise Aluminum - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Race Volt (Narrow Width)
Seatpost
SDG Tellis 105-125mm (XS-SM), SDG Tellis 130-150mm (MD-LG), SDG Tellis 150-170mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.365 mm | 1.32 mm | 1.28 mm | 1.257 mm |
| Bottom Bracket Height | 327 mm | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 673 mm | 690 mm | 721 mm | 751 mm | 777 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 104 mm | 104 mm | 104 mm | 105 mm | 104 mm |
| Stack | 577 mm | 580 mm | 594 mm | 608 mm | 622 mm |
| Reach | 410 mm | 425 mm | 450 mm | 475 mm | 495 mm |
| Top Tube Length | 565 mm | 580 mm | 609 mm | 638 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 355 mm | 394 mm | 419 mm | 460 mm | 505 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 85 mm | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1101 mm | 1118 mm | 1149 mm | 1179 mm | 1205 mm |
| Bottom Bracket Drop | 47 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 637 mm | 644 mm | 672 mm | 668 mm | 698 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
