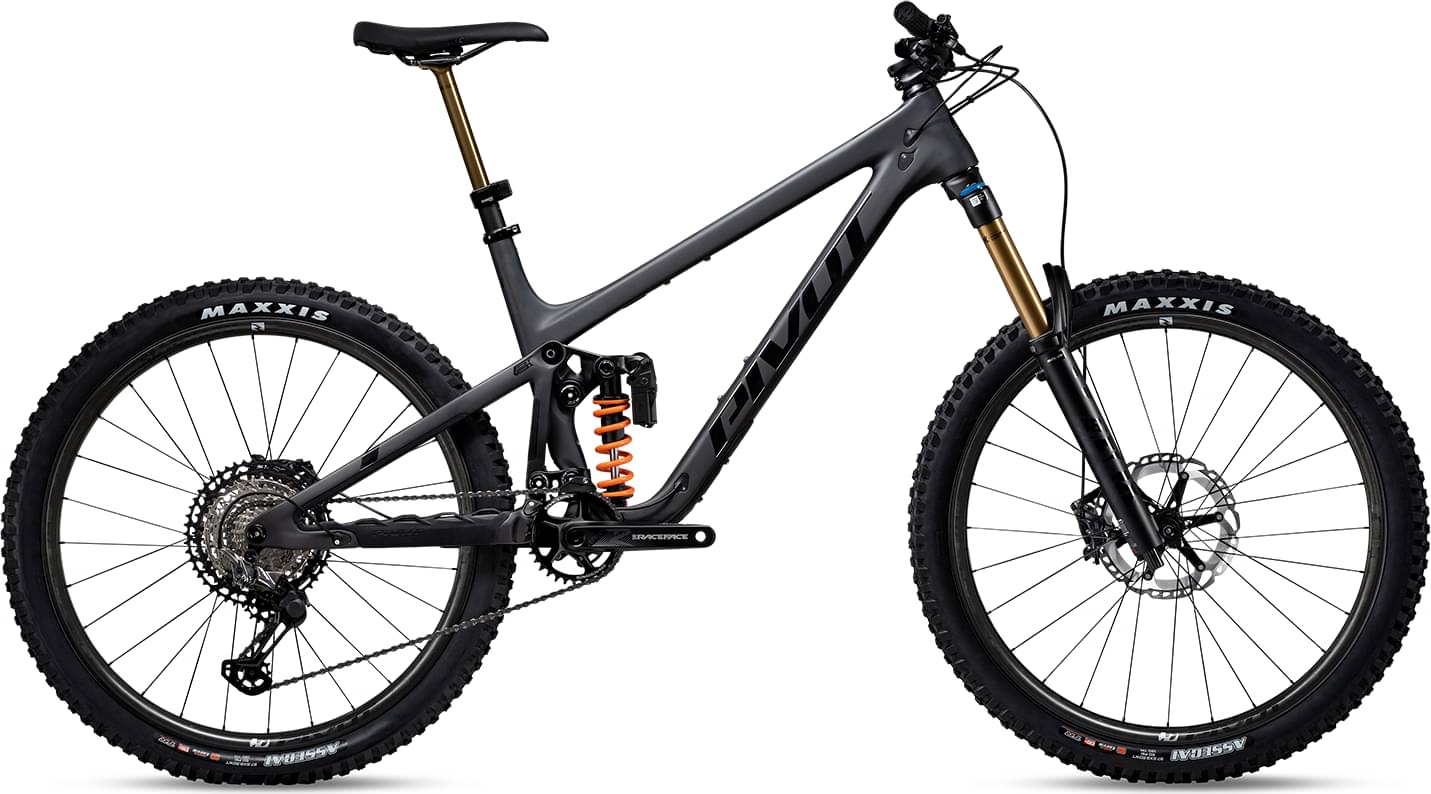

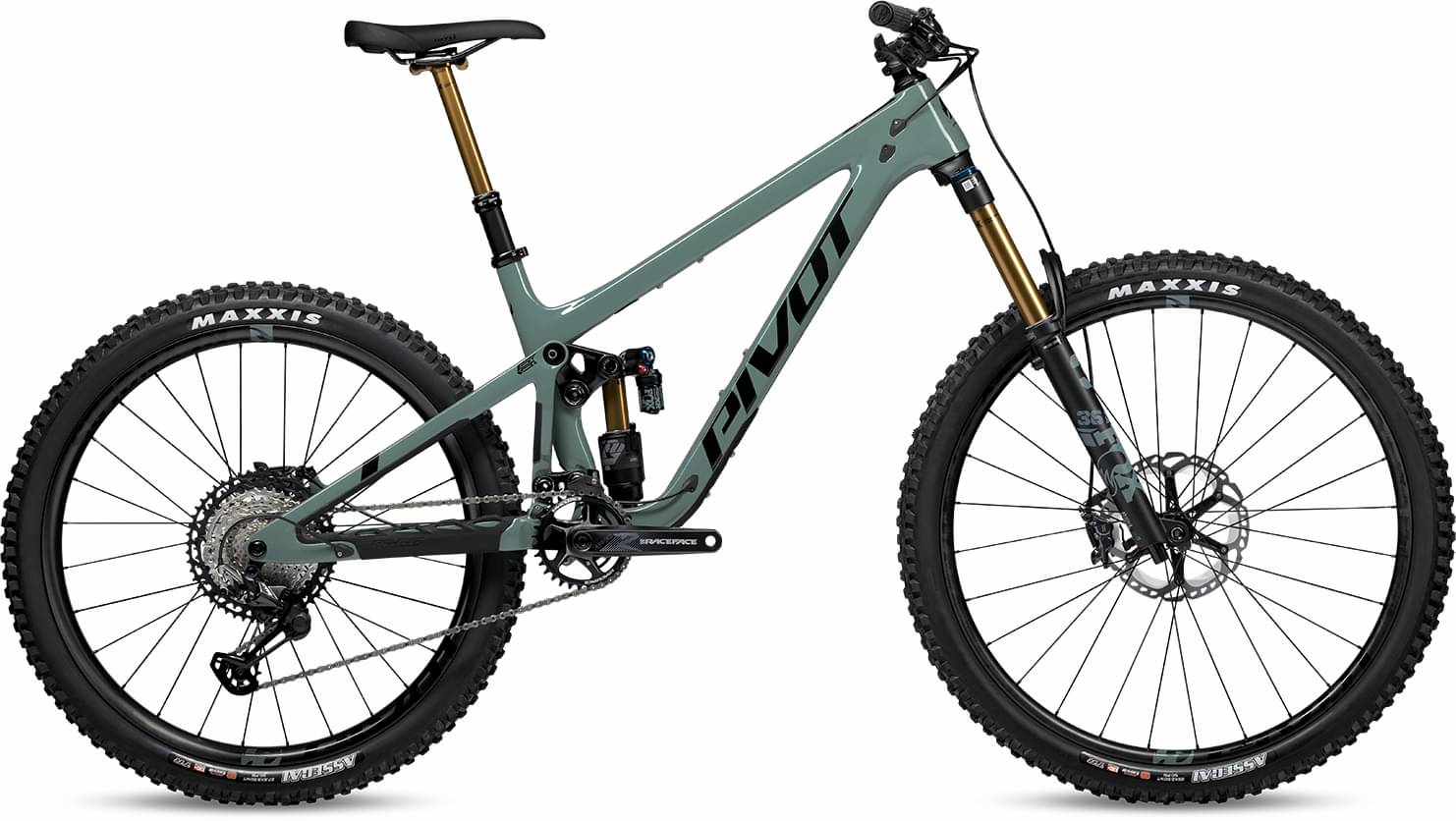

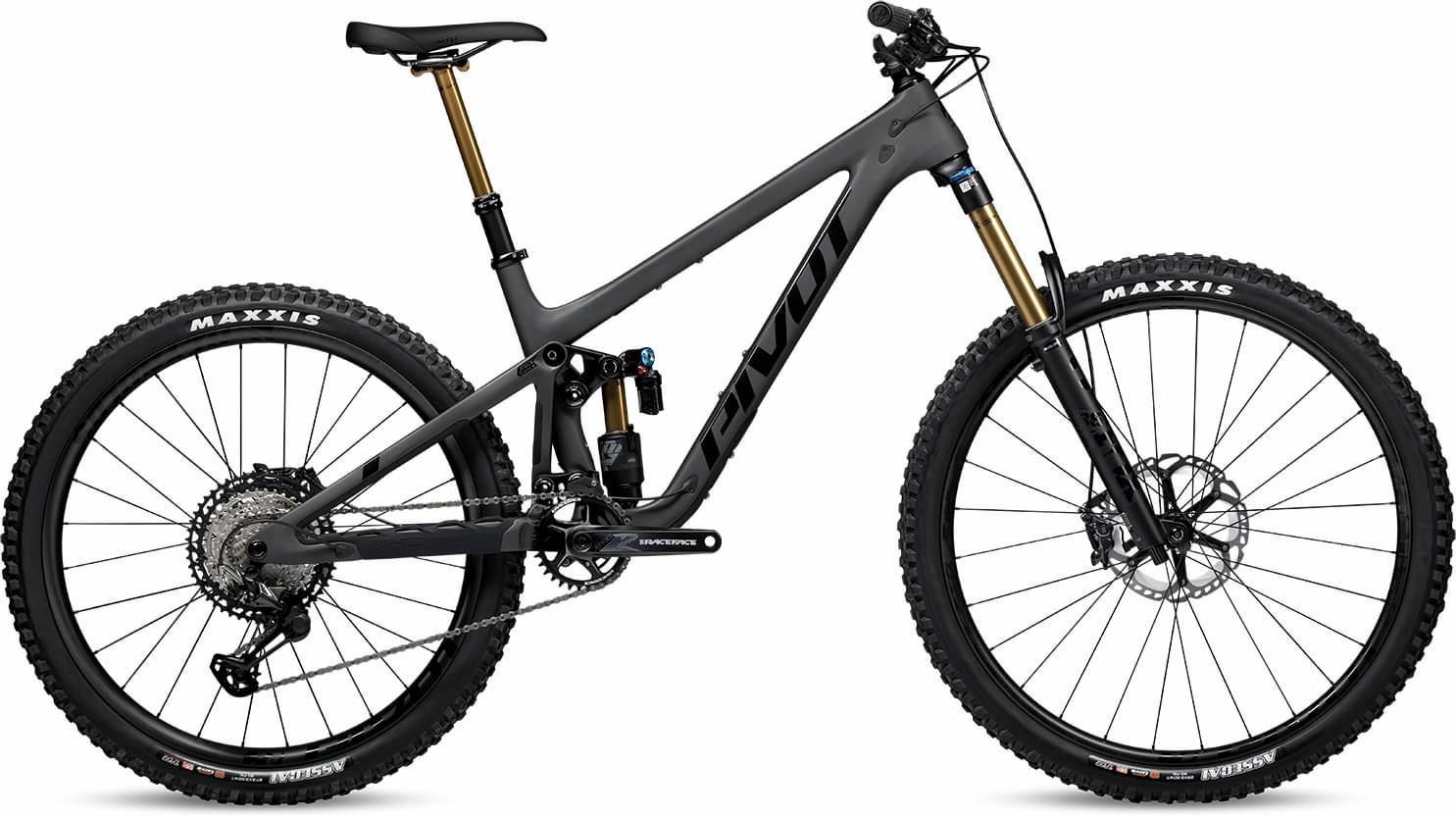

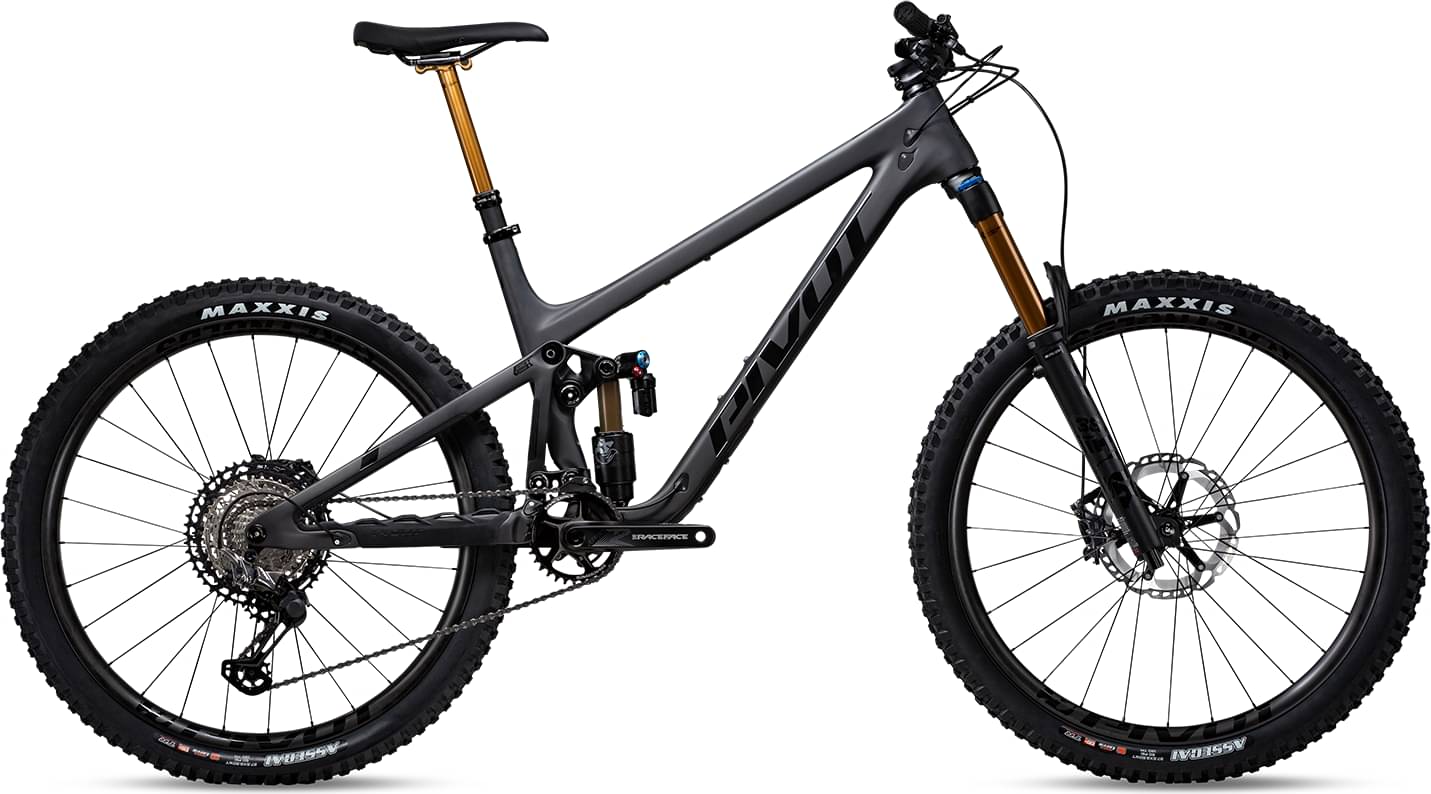

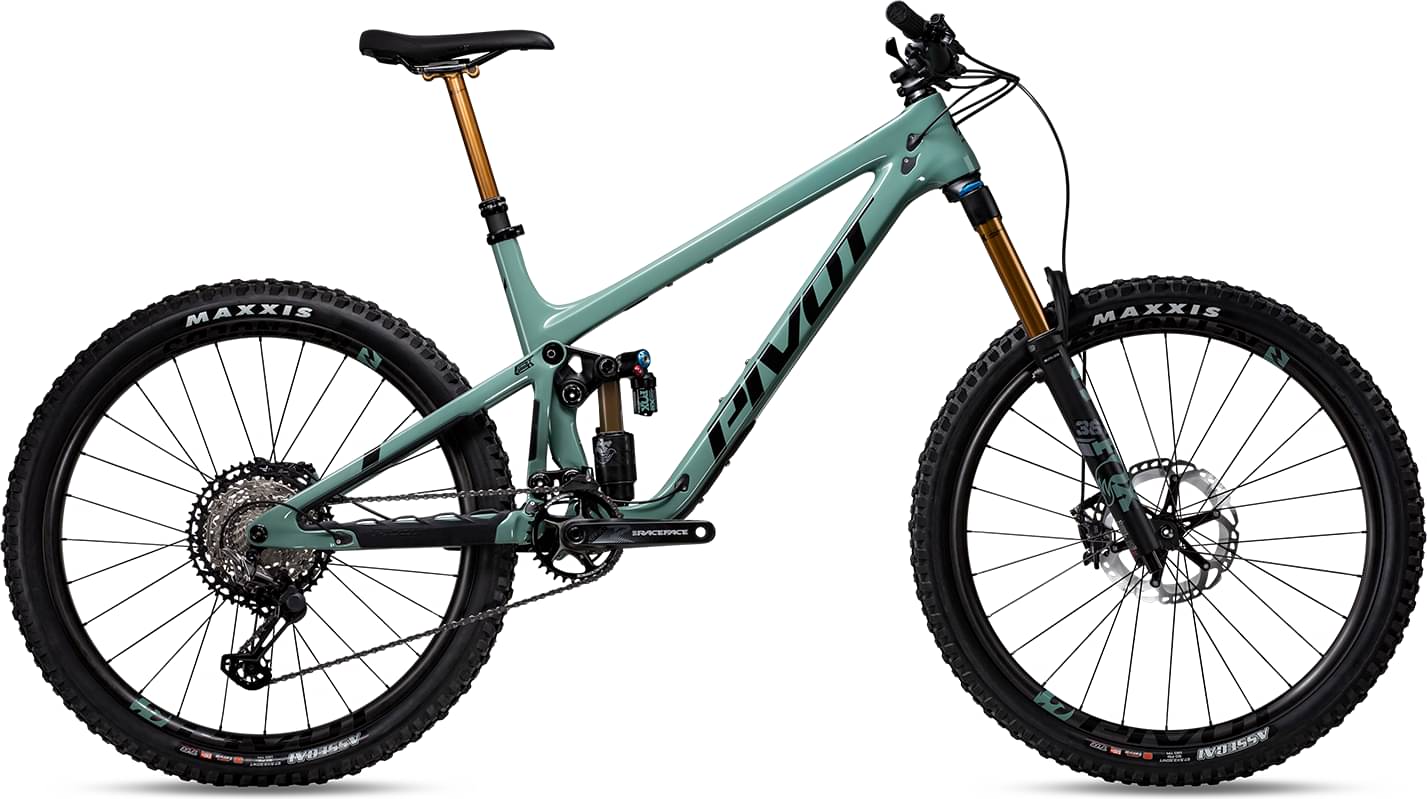

Pivot MACH 6 Pro XT/XTR w/ Carbon Wheels 2025
2025 Mountain
Estimate price |
11,051$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 158mm -
Fork Fox Factory Float 38
-
Groupset XTR, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Maven Silver Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 6
Suspension Fork
Fox Factory 38 27.5", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XT M8100 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub 34mm - 27.5", 15x110 F/12x157 R
Tires
Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Assegai 27.5" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Maven Silver 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm
Handlebar
Phoenix Team Low Rise Carbon - 760mm (XS), 780mm (SM), 800mm (MD-LG)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Factory Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.484 mm | 1.37 mm | 1.335 mm |
| Bottom Bracket Height | 364 mm | 364 mm | 364 mm | 364 mm |
| Front Center | 728 mm | 754 mm | 787 mm | 813 mm |
| Rake | 37 mm | 44 mm | 35 mm | 36 mm |
| Trail | 137 mm | 130 mm | 140 mm | 139 mm |
| Stack | 581 mm | 595 mm | 603 mm | 614 mm |
| Reach | 390 mm | 401 mm | 440 mm | 460 mm |
| Top Tube Length | 568 mm | 592 mm | 624 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm |
| Head Tube Angle | 63.3 ° | 63.3 ° | 63.3 ° | 63.3 ° |
| Head Tube Length | 85 mm | 100 mm | 108 mm | 120 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1159 mm | 1185 mm | 1218 mm | 1244 mm |
| Bottom Bracket Drop | -9 mm | -9 mm | -9 mm | -9 mm |
| Standover Height | 648 mm | 666 mm | 689 mm | 690 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm |
