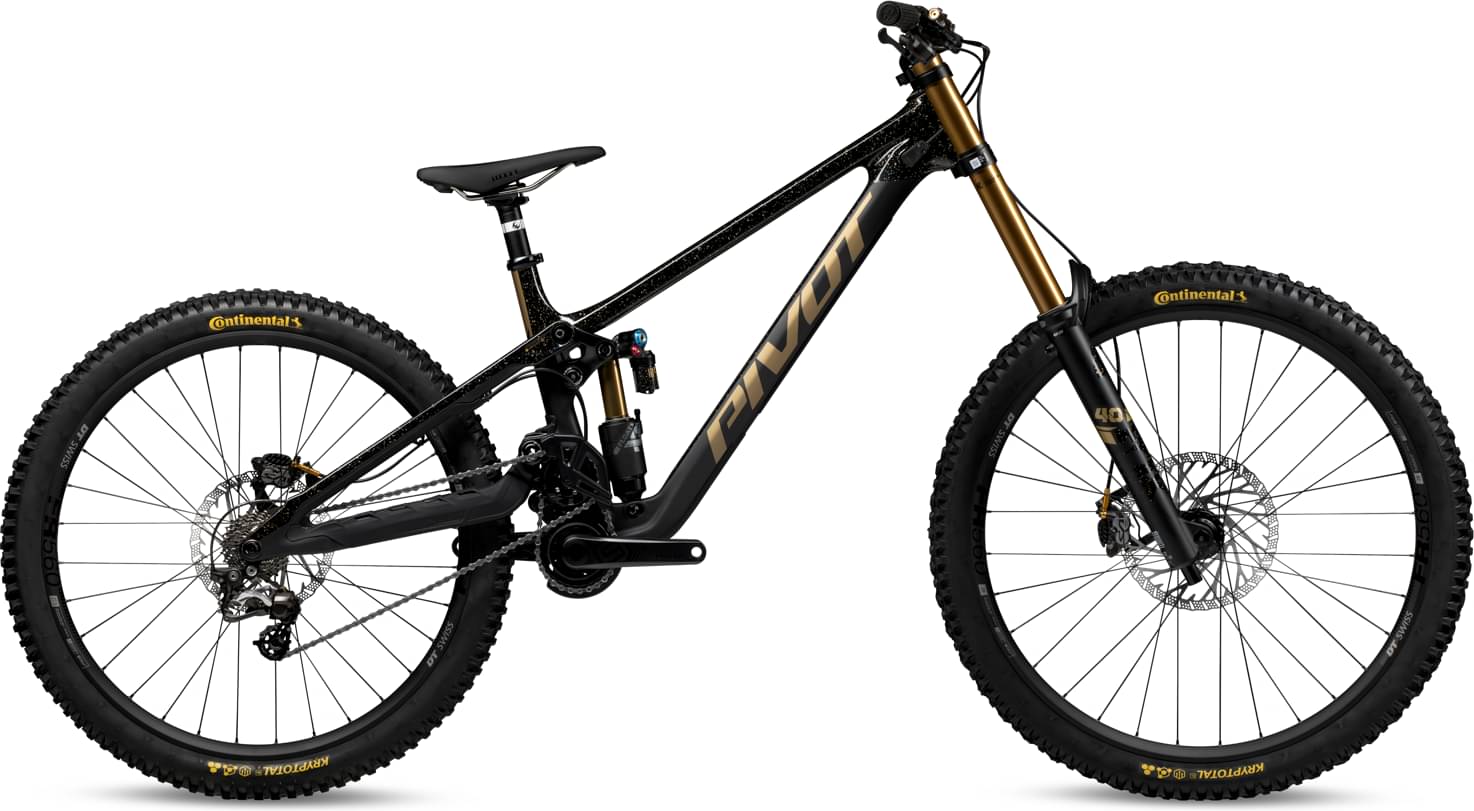

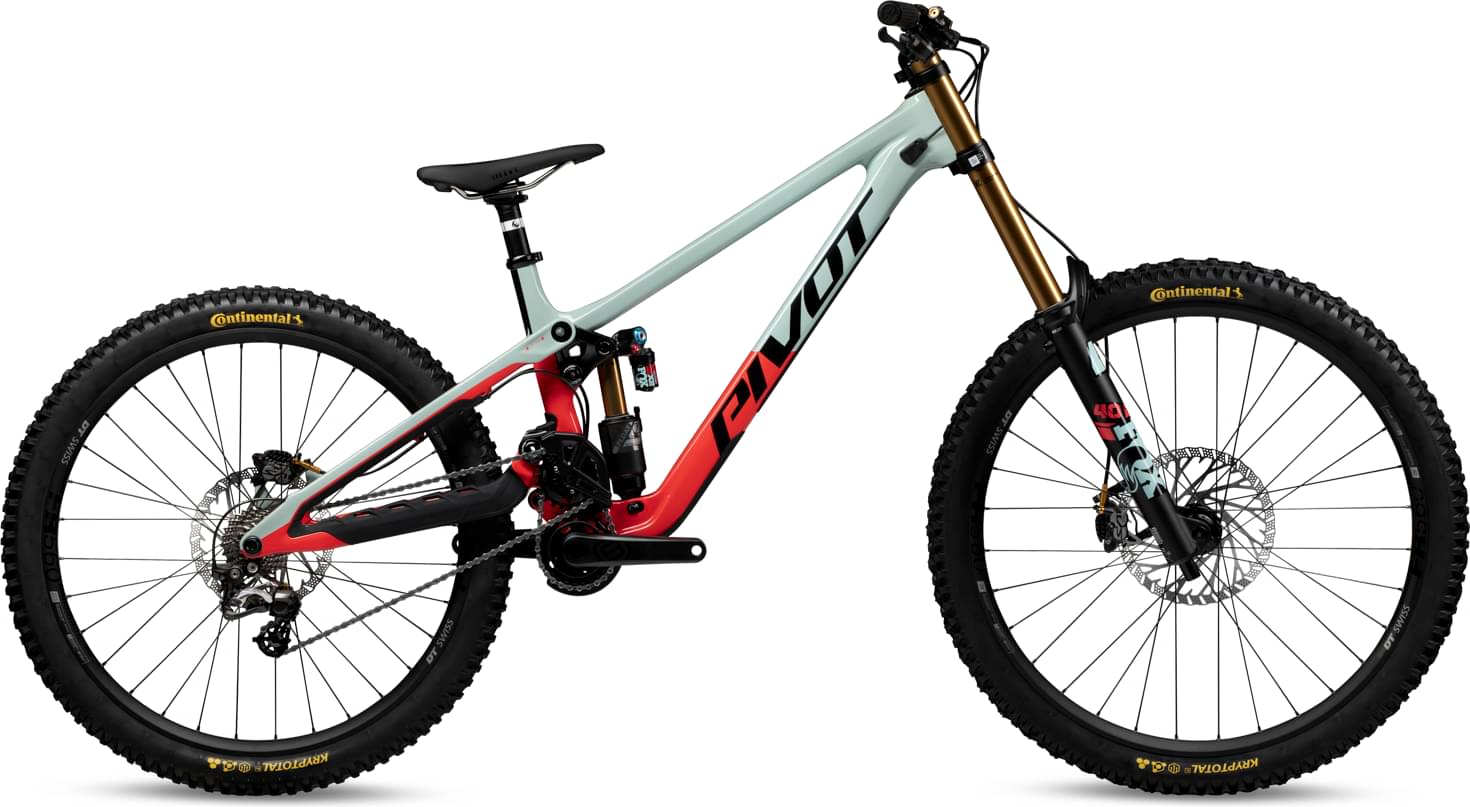

Pivot PHOENIX Pro Saint 2025
2025 Mountain
Estimate price |
11,051$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 203mm -
Travel Rear 210mm -
Fork Fox Factory Float 40
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix
Suspension Fork
Fox Factory 40 29”, 52mm offset, GRIP X2 - 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint M820 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano Tiagra CS-HG500 11-25t
Crank
Praxis DH9-73 M30 165mm (w/ Pivot 27T Ring)
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
DT Swiss FR 560 w/ DT Swiss 350 hub - Mixed, 20x110 F/12x157 R
Tires
Continental Kryptotal-F 29" x 2.4" 3C, Super Soft, DH Casing, Continental Kryptotal-R 27.5" x 2.4" Super Soft, DH Casing
Brakes
Brakes
Shimano Saint M820 4-piston
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Team High Tail Trail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.357 mm | 1.301 mm | 1.213 mm |
| Bottom Bracket Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Stack | 631 mm | 631 mm | 631 mm | 631 mm |
| Reach | 440 mm | 465 mm | 485 mm | 520 mm |
| Top Tube Length | 577 mm | 602 mm | 622 mm | 657 mm |
| Seat Tube Angle | 77.73 ° | 77.73 ° | 77.73 ° | 77.73 ° |
| Seat Tube Length | 410 mm | 410 mm | 410 mm | 410 mm |
| Head Tube Angle | 62.93 ° | 62.93 ° | 62.93 ° | 62.93 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1250 mm | 1275 mm | 1295 mm | 1330 mm |
| Standover Height | 702 mm | 707 mm | 707 mm | 707 mm |
| Wheels | 27" | 27" | 27" | 27" |
