Bike details
Overview
Key information split into simple groups.

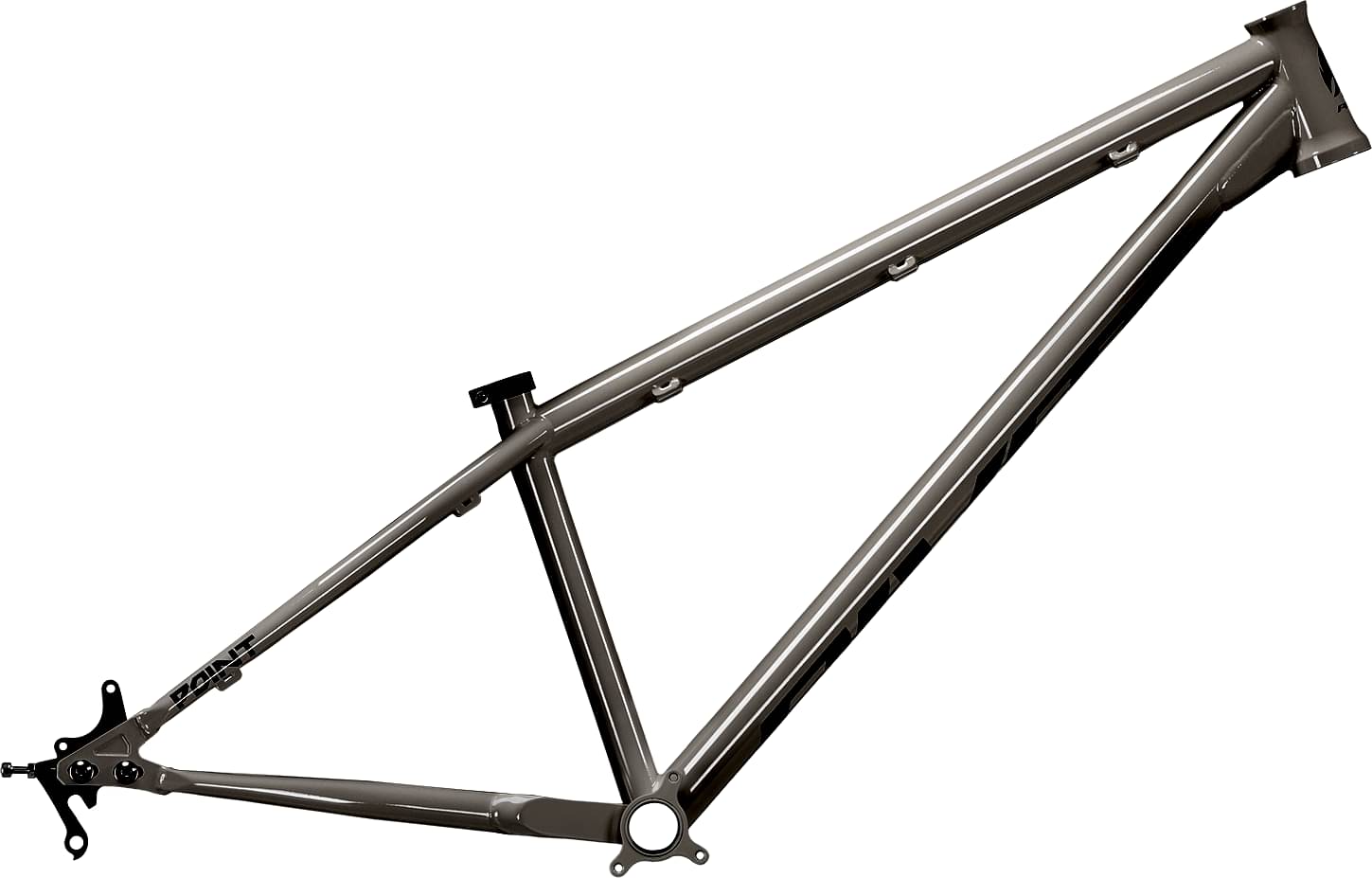

Frame summary
-
-
Frame Steel
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Point
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | OS |
|---|---|
| Stack Reach Ratio | 1.293 mm |
| Bottom Bracket Height | 325 mm |
| Front Center | 677 mm |
| Rake | 38 mm |
| Trail | 94 mm |
| Stack | 551 mm |
| Reach | 426 mm |
| Top Tube Length | 605 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 320 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 110 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1061 mm |
| Bottom Bracket Drop | 20 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
