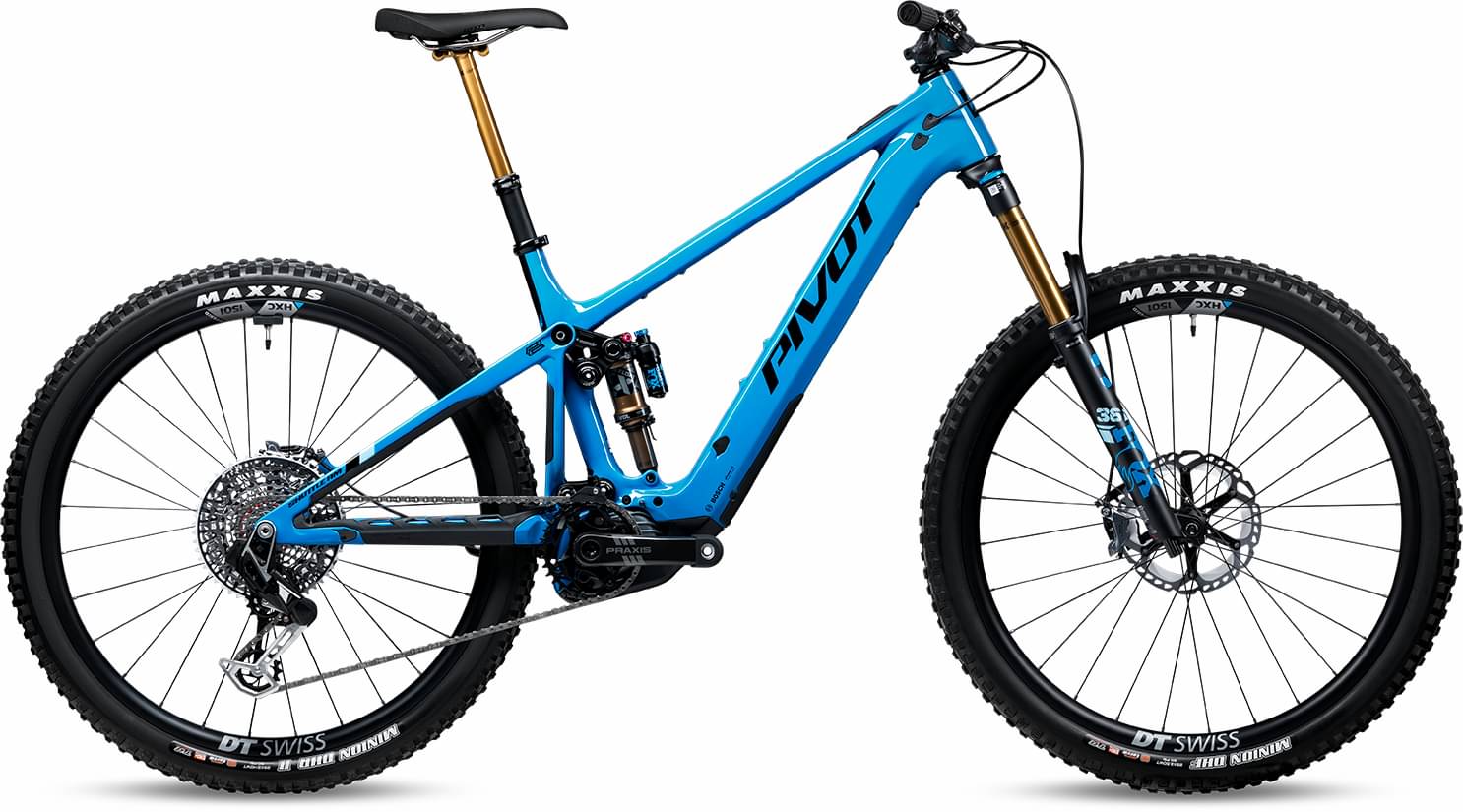

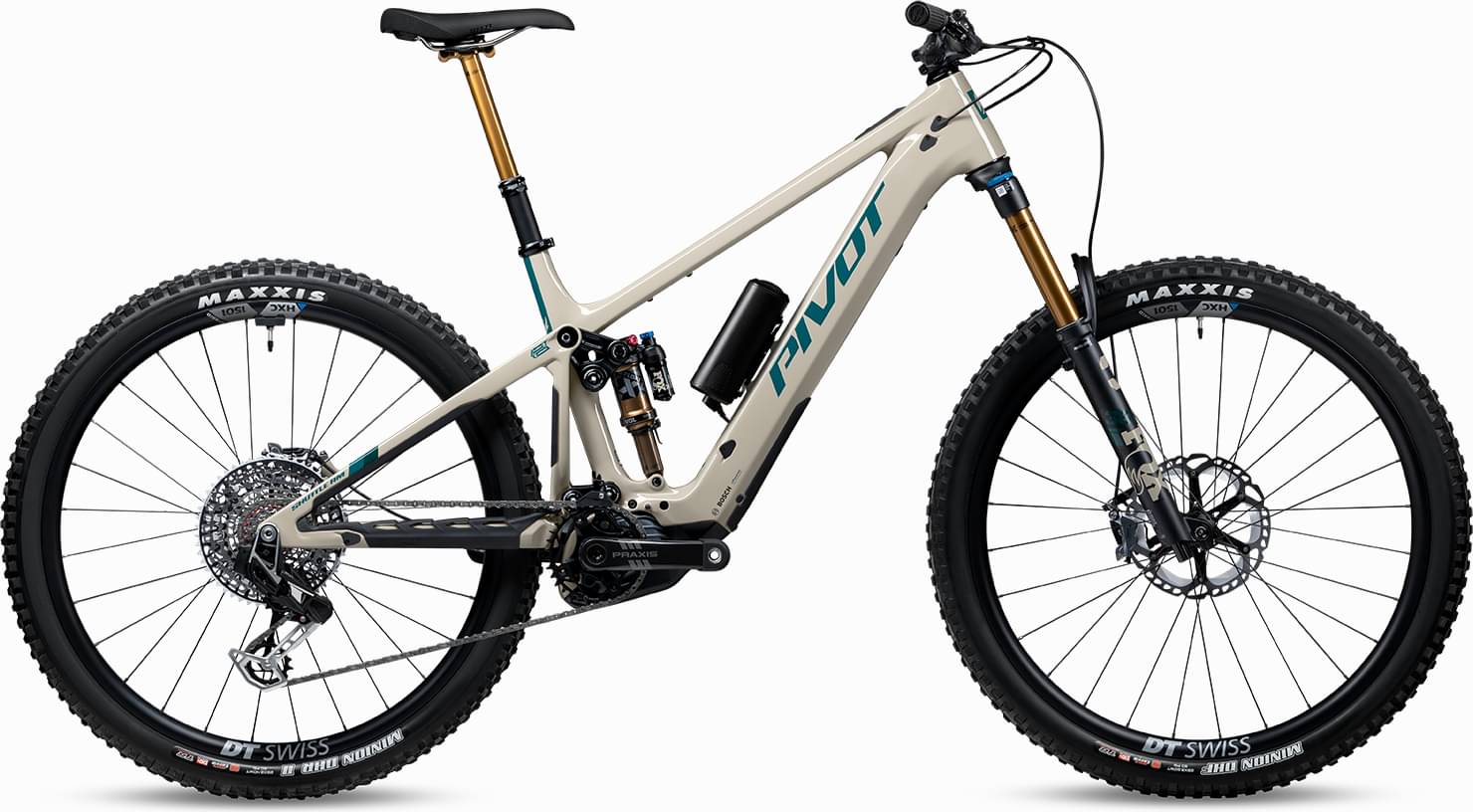

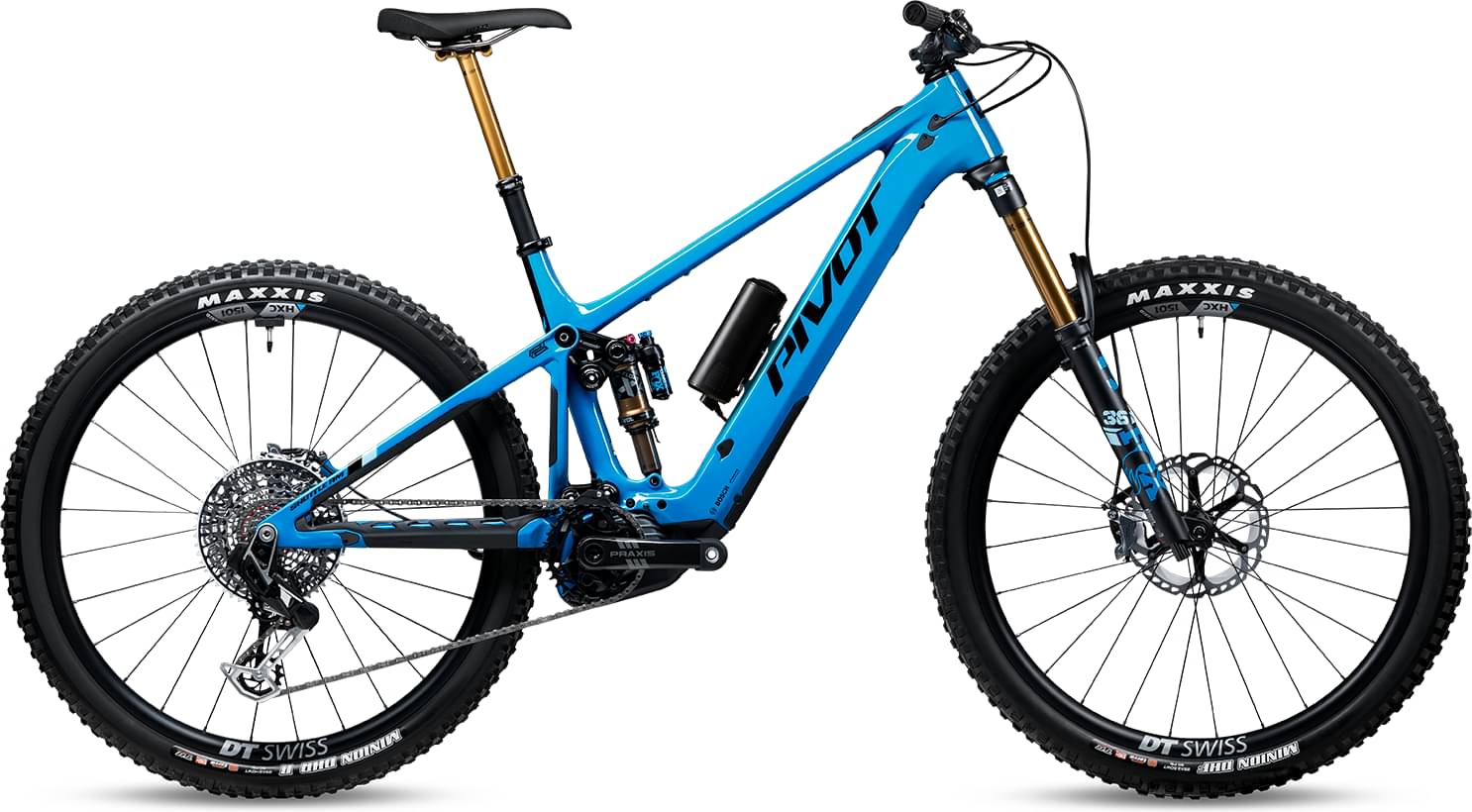

Pivot SHUTTLE AM Team XX Eagle Transmission w/ Carbon Wheels 2025
2025 E-bike
Estimate price |
15,064$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Performance CX Race Edition 750wh -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Maven Ultimate Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle AM
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP X2 - 160mm
Rear Shock
Fox Factory Float X
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM XX 1297 Eagle Transmission 10-52t
Crank
Praxis Carbon eCranks E-MTB 34t - 160mm
Chain
SRAM XX Eagle Flattop 12-Speed
Wheels
Rims
DT Swiss Hybrid HXC1501 Carbon, 30mm - 29", 15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM Maven Ultimate 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm
Handlebar
Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (SM), Phoenix WTB Pro Volt Medium (MD), Pivot Team E-Bike (LG-XL)
Seatpost
Fox Factory Transfer
Motor & Battery
Motor
Bosch Performance CX Race Edition 750wh
Battery
Bosch Performance CX Race Edition 750wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.393 mm | 1.368 mm | 1.331 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 774 mm | 808 mm | 827 mm | 852 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm |
| Trail | 132 mm | 133 mm | 133 mm | 132 mm |
| Stack | 632 mm | 642 mm | 651 mm | 660 mm |
| Reach | 431 mm | 461 mm | 476 mm | 496 mm |
| Top Tube Length | 599 mm | 631 mm | 649 mm | 671 mm |
| Seat Tube Angle | 76.4 ° | 76.4 ° | 76.4 ° | 76.4 ° |
| Seat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1217 mm | 1251 mm | 1270 mm | 1295 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 715 mm | 715 mm | 715 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
