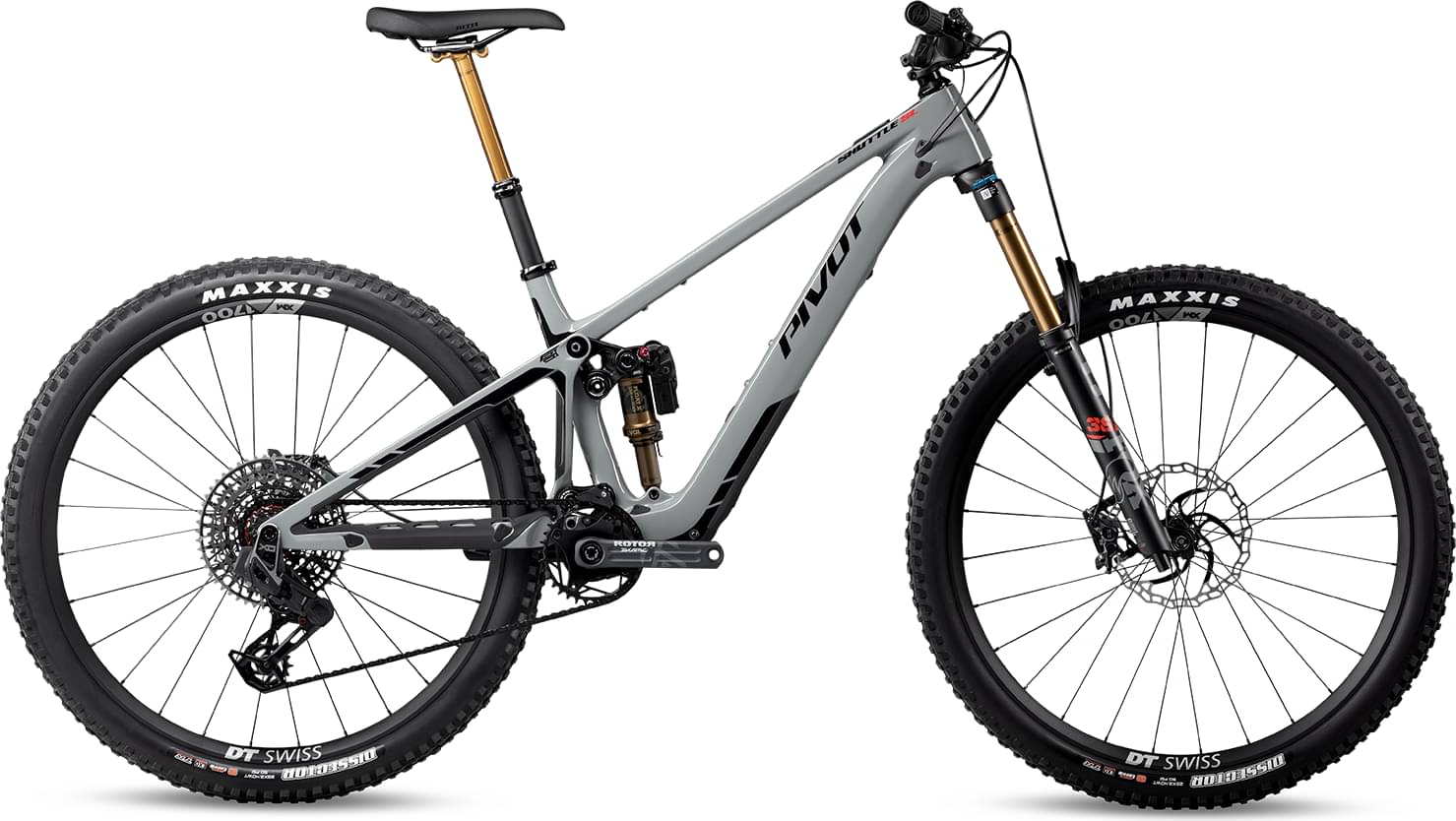

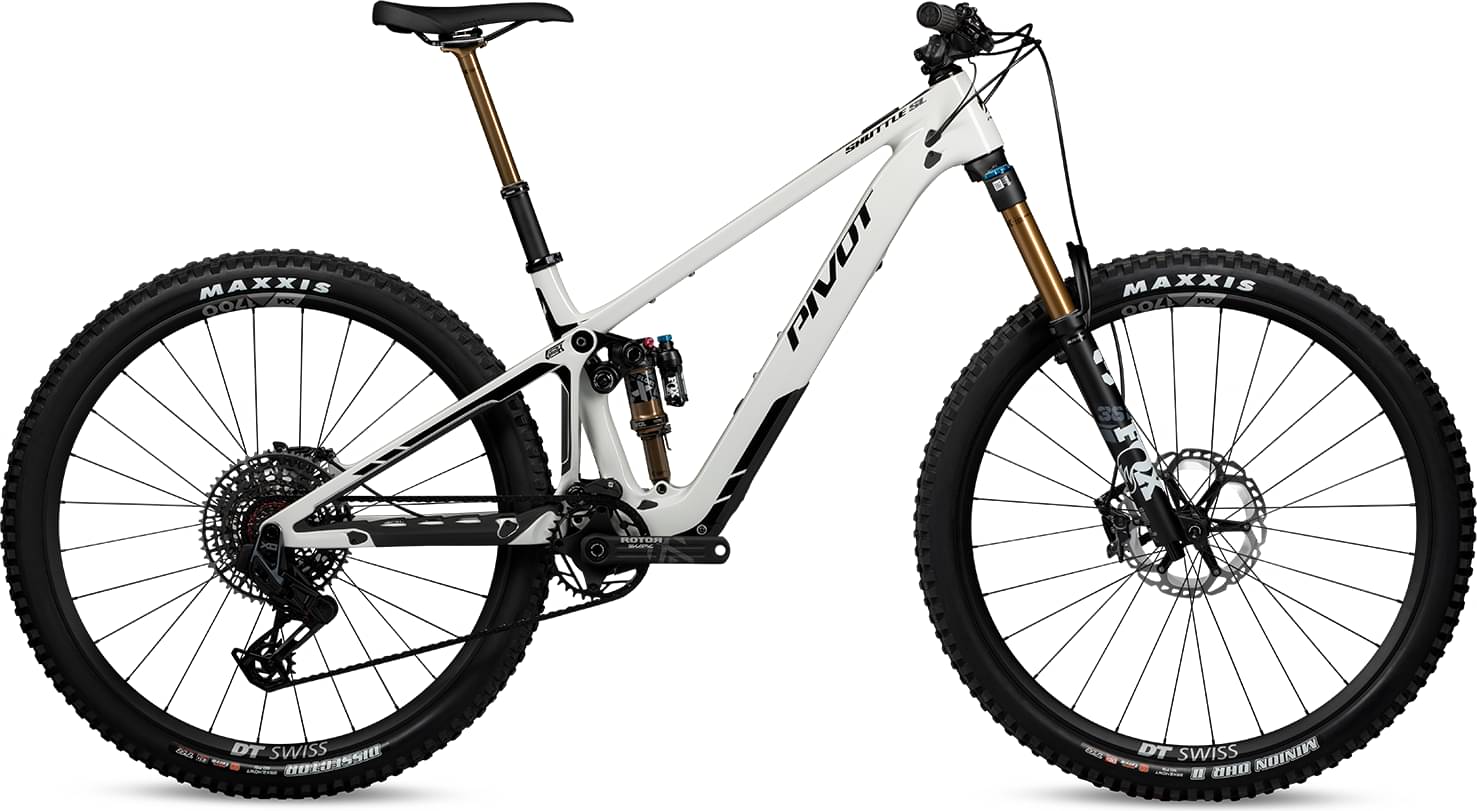

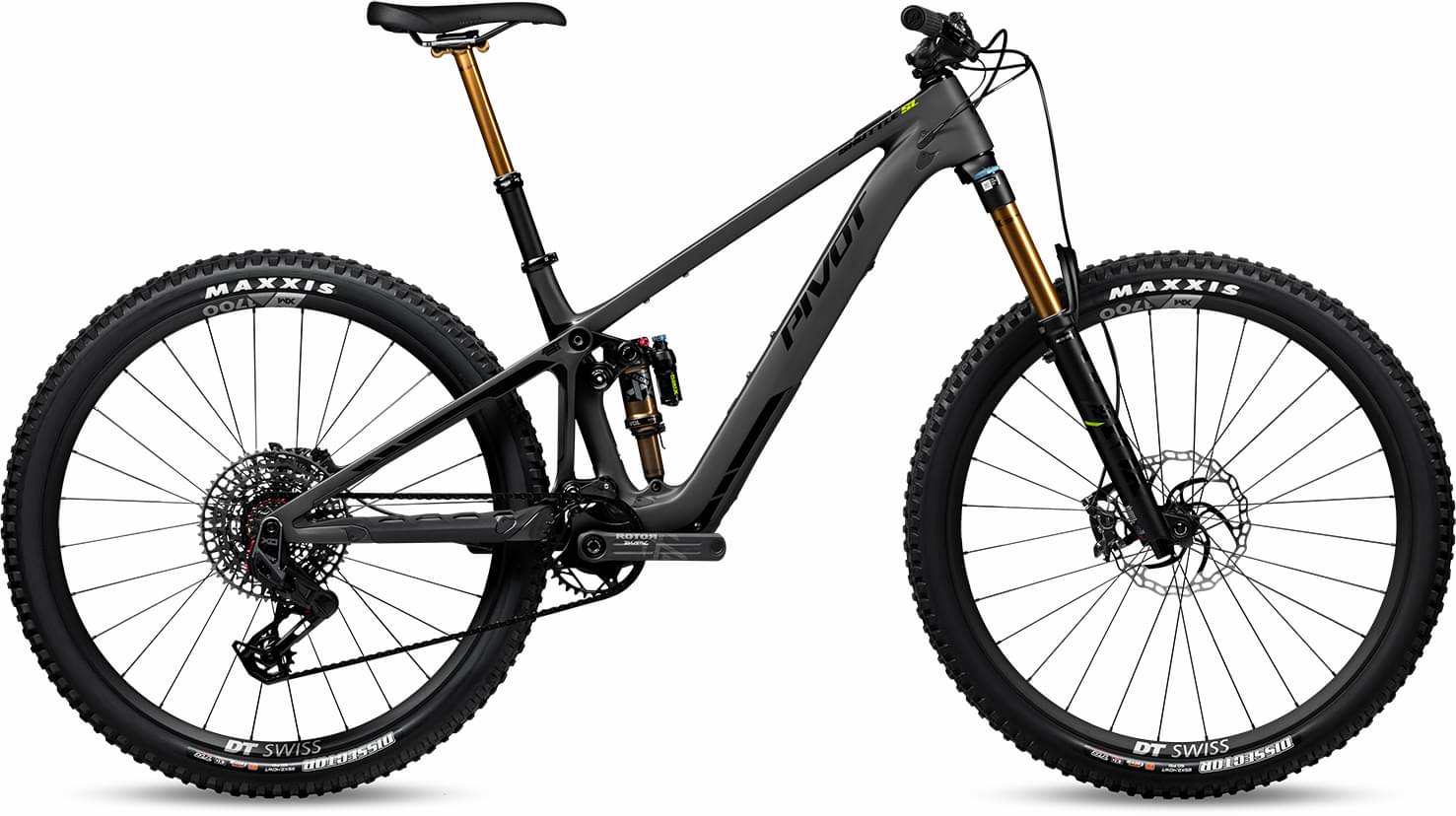

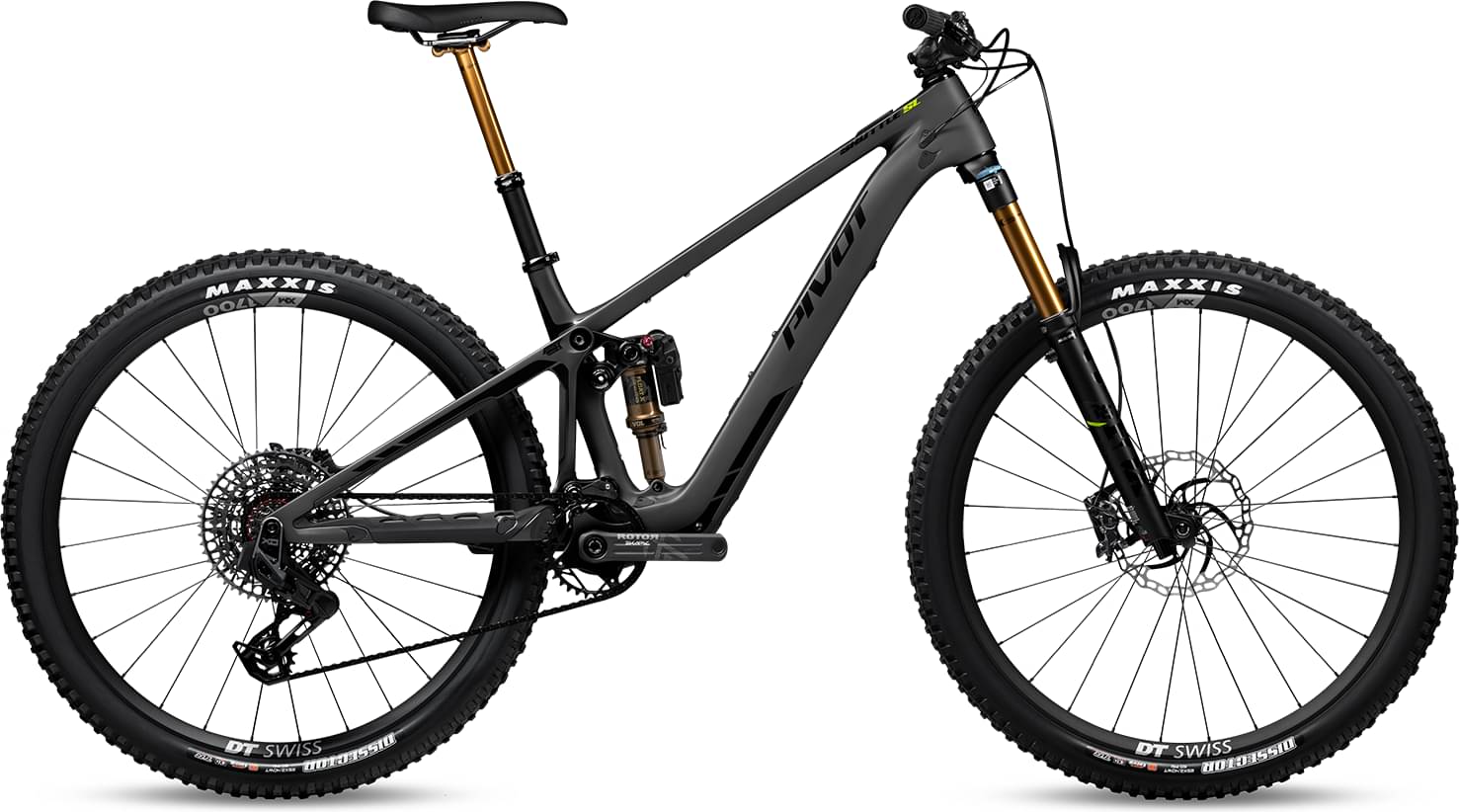

Pivot SHUTTLE SL Pro X0 Eagle Transmission 2025
2025 E-bike
Estimate price |
12,447$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 132mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery Fazua Ride 60 w/ 480 Wh Battery -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle SL
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 150mm
Rear Shock
Fox Factory Float X
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 1295 Eagle Transmission 10-52t
Crank
ROTOR EKAPIC E-MTB 34t
Chain
SRAM X0 Eagle Flattop 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29", 15x110 F/12x157 R
Tires
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM Motive Silver 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm
Handlebar
Phoenix Team Low Rise Carbon -780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width) (SM-MD), Pivot Pro E-Bike (LG-XL)
Seatpost
Fox Factory Transfer
Motor & Battery
Motor
Fazua Ride 60 w/ 480 Wh Battery
Battery
Fazua Ride 60 w/ 480 Wh Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.346 mm | 1.318 mm | 1.284 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 755 mm | 792 mm | 807 mm | 835 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 127 mm | 127 mm | 127 mm | 126 mm |
| Stack | 610 mm | 626 mm | 630 mm | 642 mm |
| Reach | 435 mm | 465 mm | 478 mm | 500 mm |
| Top Tube Length | 598 mm | 632 mm | 646 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.8 ° |
| Seat Tube Length | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 434 mm | 438 mm |
| Wheelbase | 1186 mm | 1223 mm | 1240 mm | 1272 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 665 mm | 668 mm | 674 mm | 678 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
