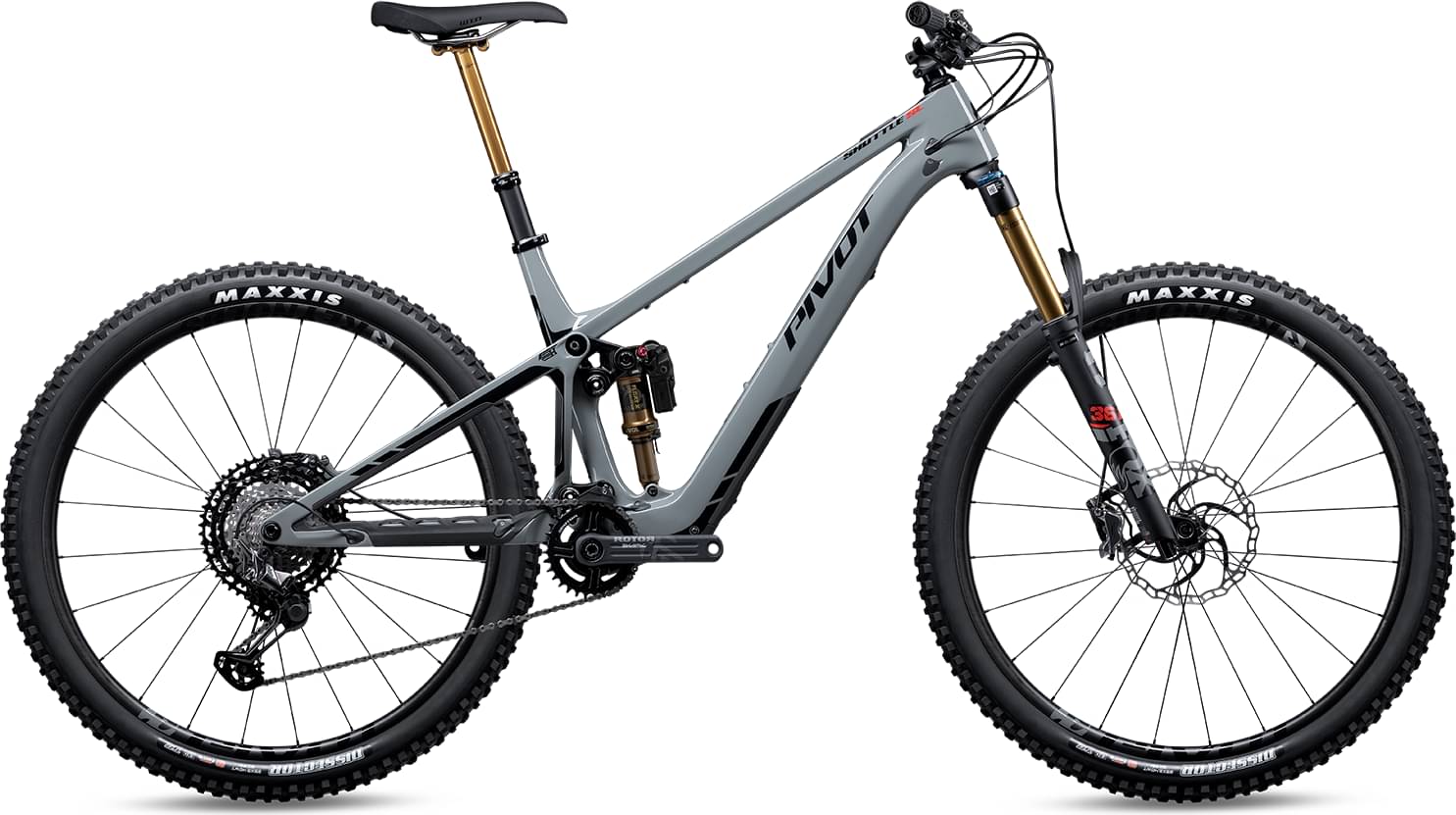

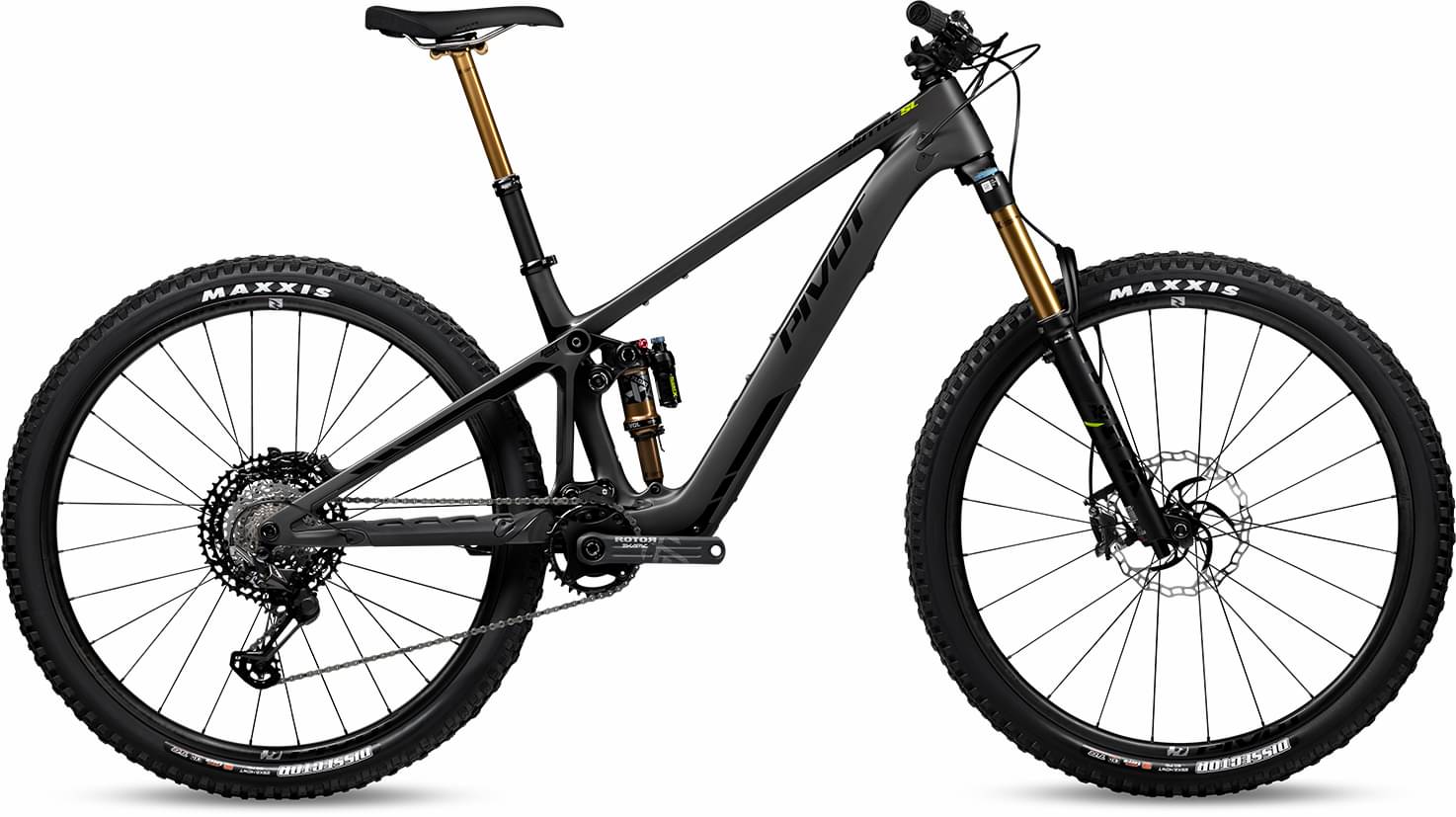

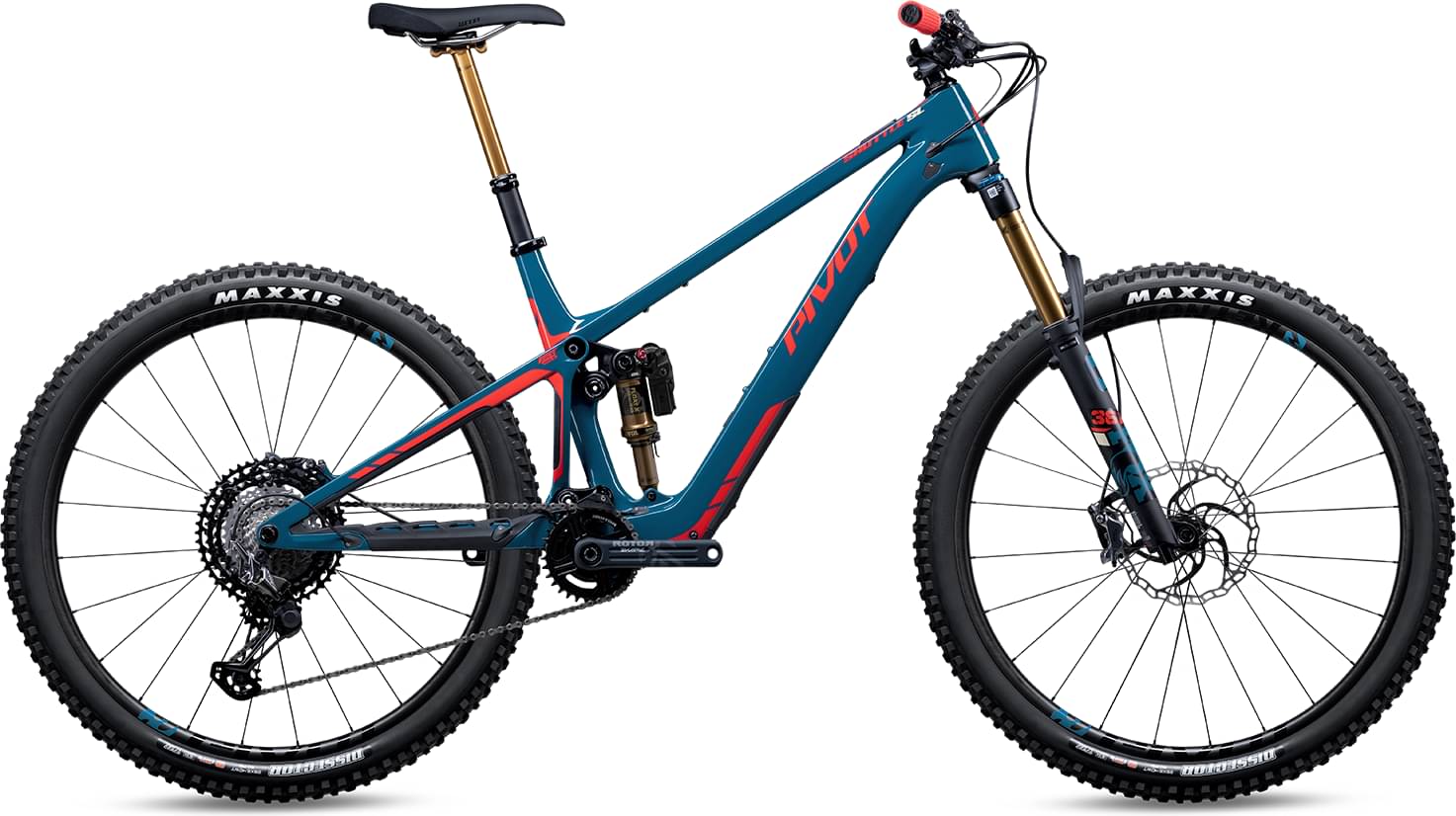

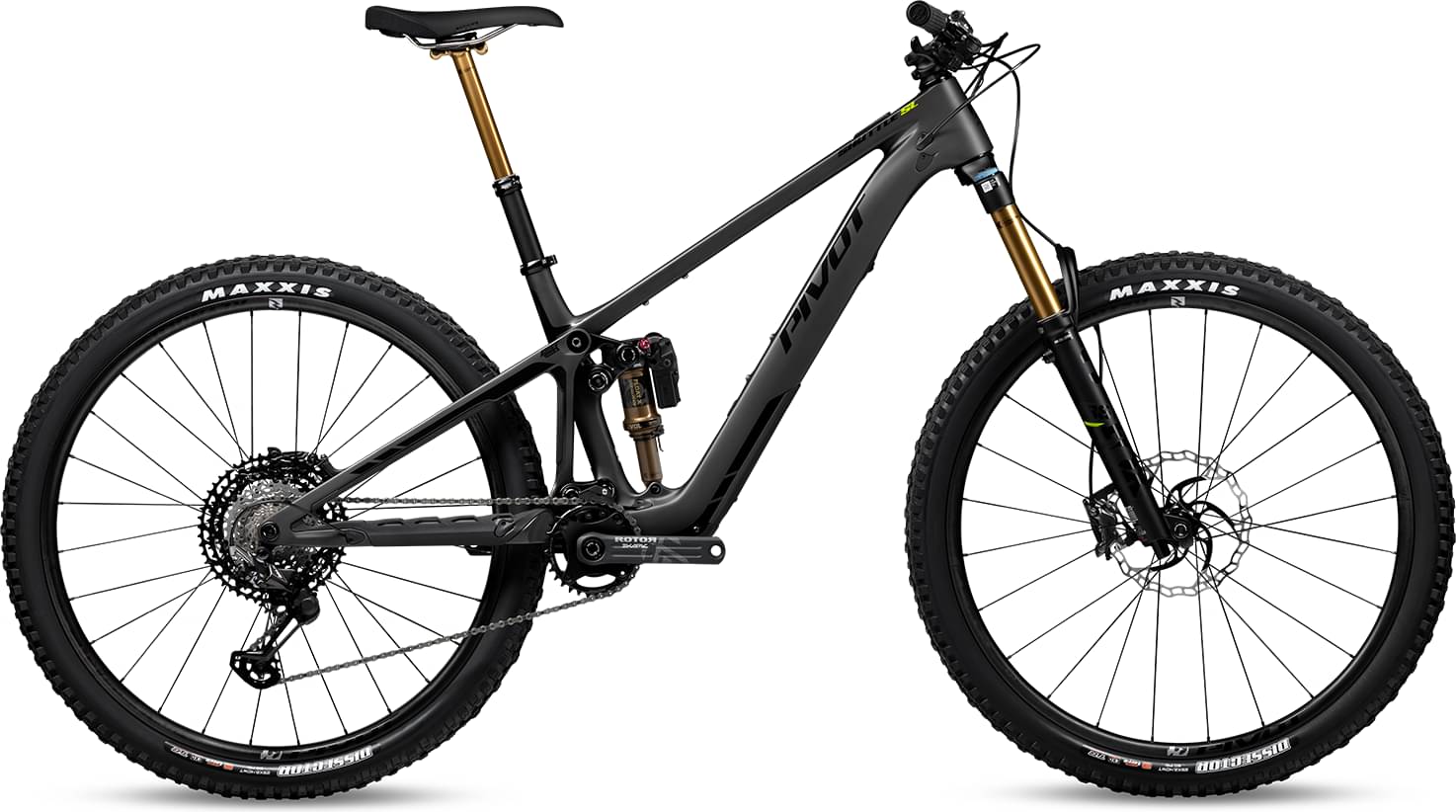

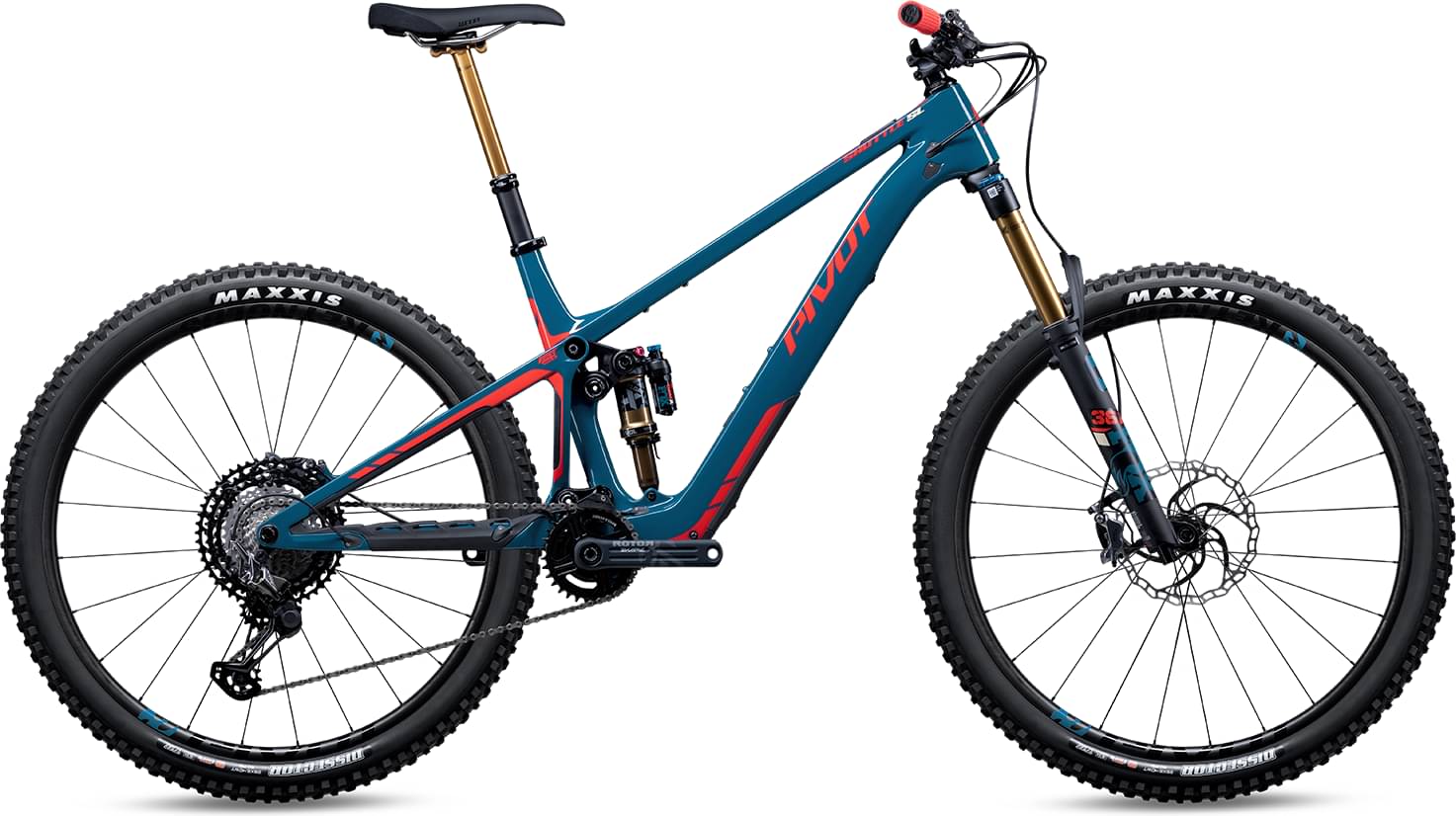

Pivot SHUTTLE SL Team XTR w/ Carbon Wheels 2024
2024 E-bike
Estimate price |
13,959$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 132mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery FAZUA RIDE 60 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle SL
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 150mm
Rear Shock
Fox Factory Float X
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
ROTOR EKAPIC E-MTB 32t - 165mm
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29", 15x110 F/12x157 R
Tires
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail - 45mm
Handlebar
Phoenix Team Low Rise Carbon -780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Pivot Pro E-Bike
Seatpost
Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Motor & Battery
Motor
FAZUA RIDE 60
Battery
FAZUA RIDE 60
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.383 mm | 1.326 mm | 1.299 mm | 1.266 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 756 mm | 793 mm | 808 mm | 836 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 121 mm | 121 mm | 121 mm | 122 mm |
| Stack | 607 mm | 622 mm | 626 mm | 638 mm |
| Reach | 439 mm | 469 mm | 482 mm | 504 mm |
| Top Tube Length | 597 mm | 631 mm | 645 mm | 659 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 77.2 ° |
| Seat Tube Length | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.4 ° |
| Head Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 432 mm | 436 mm |
| Wheelbase | 1185 mm | 1222 mm | 1239 mm | 1271 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 674 mm | 677 mm | 682 mm | 687 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
