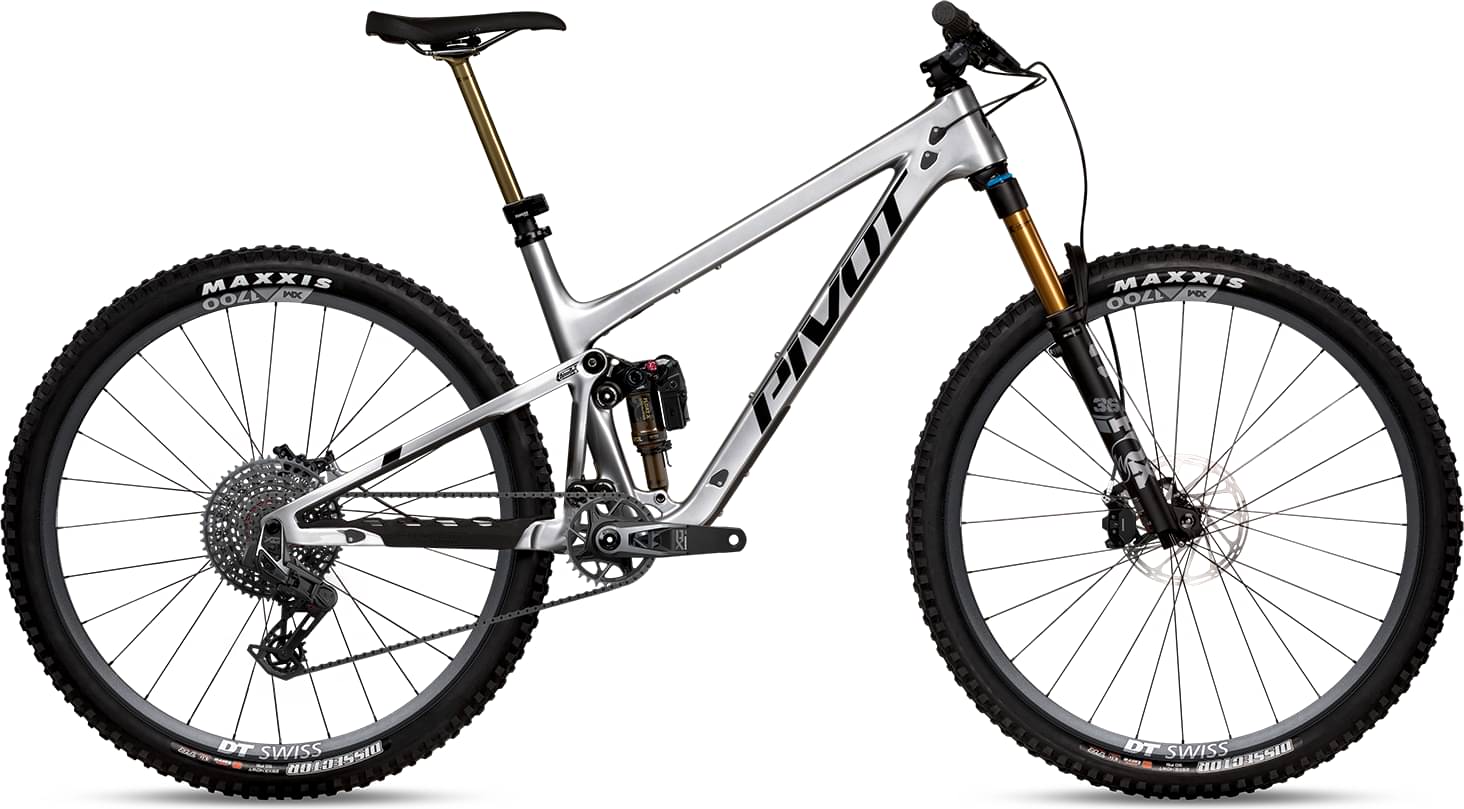

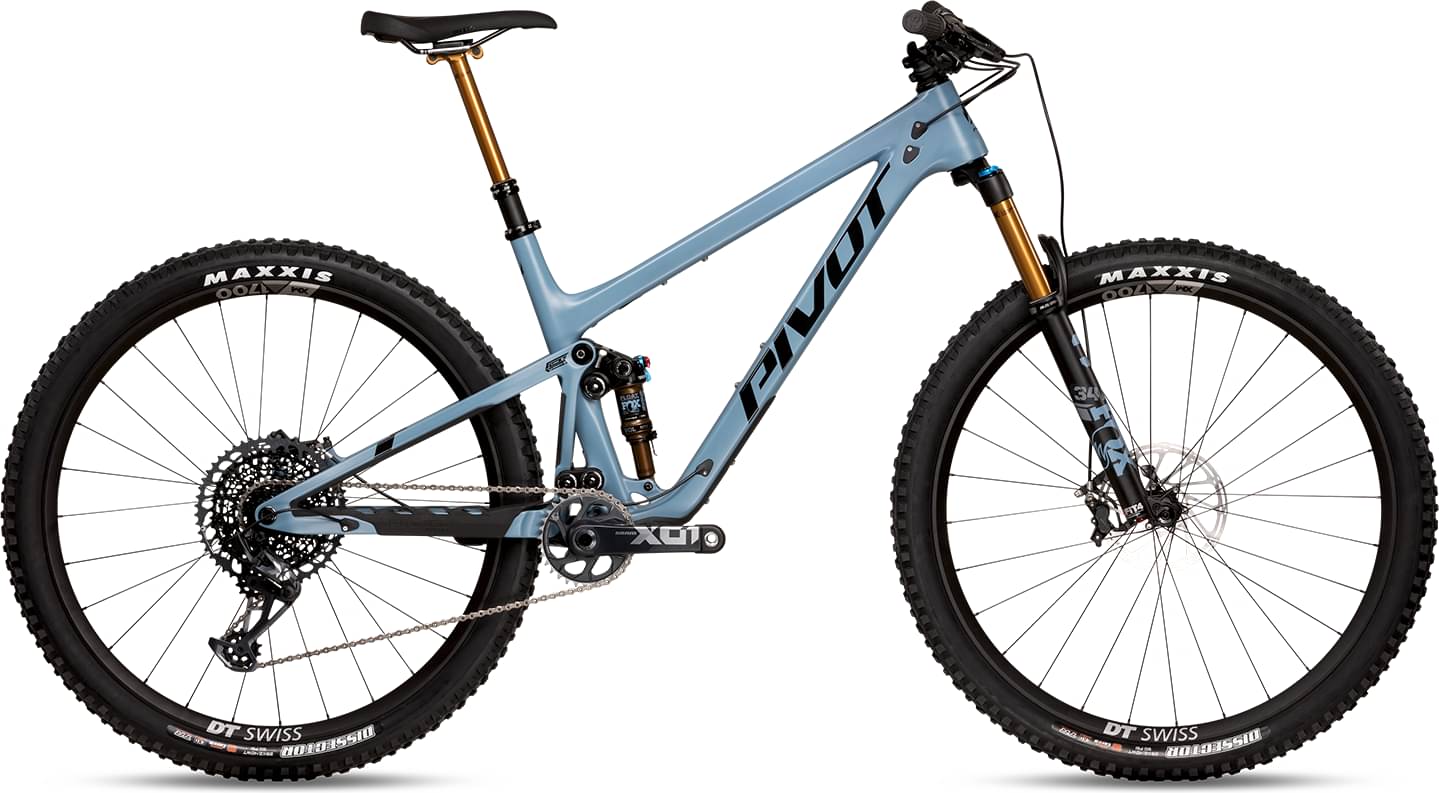

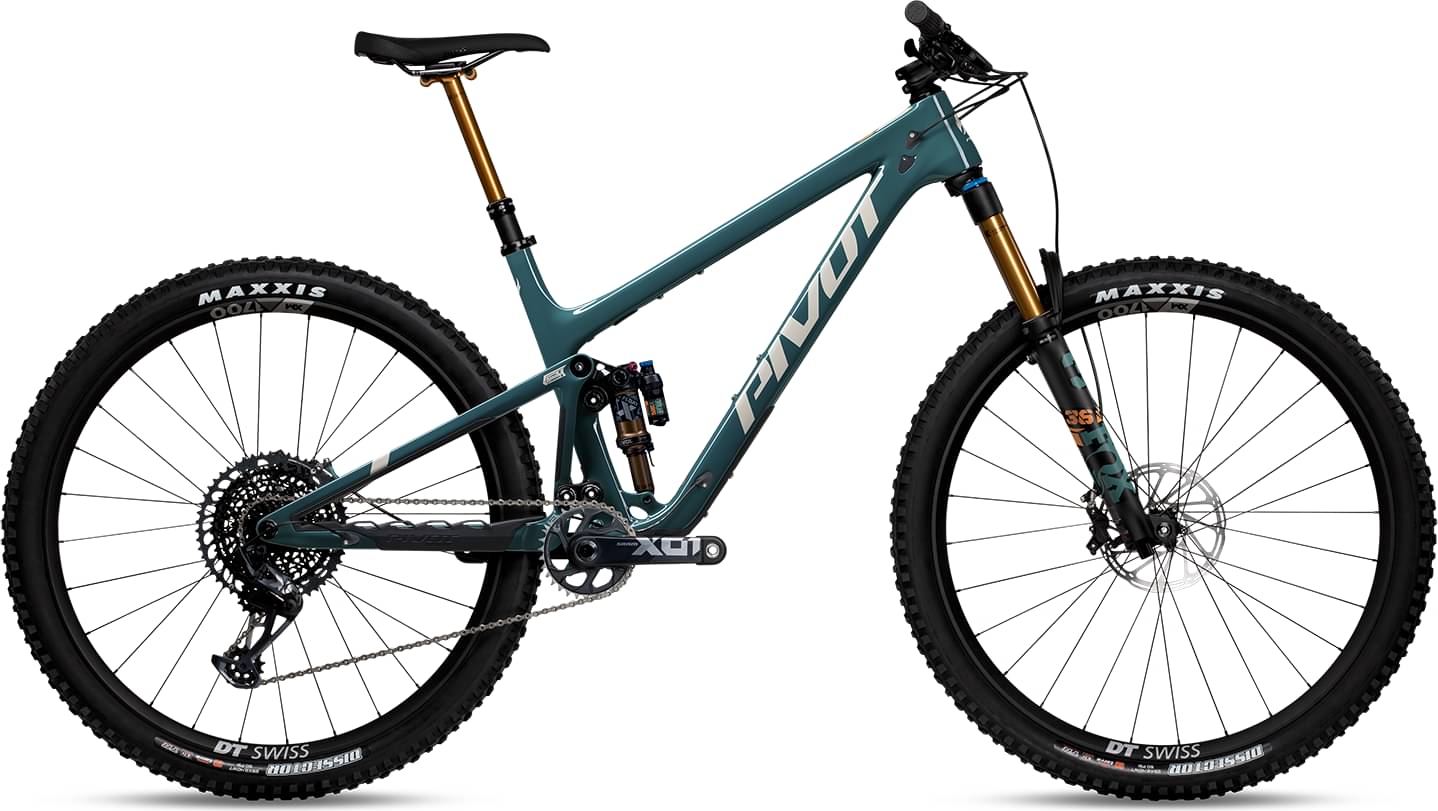

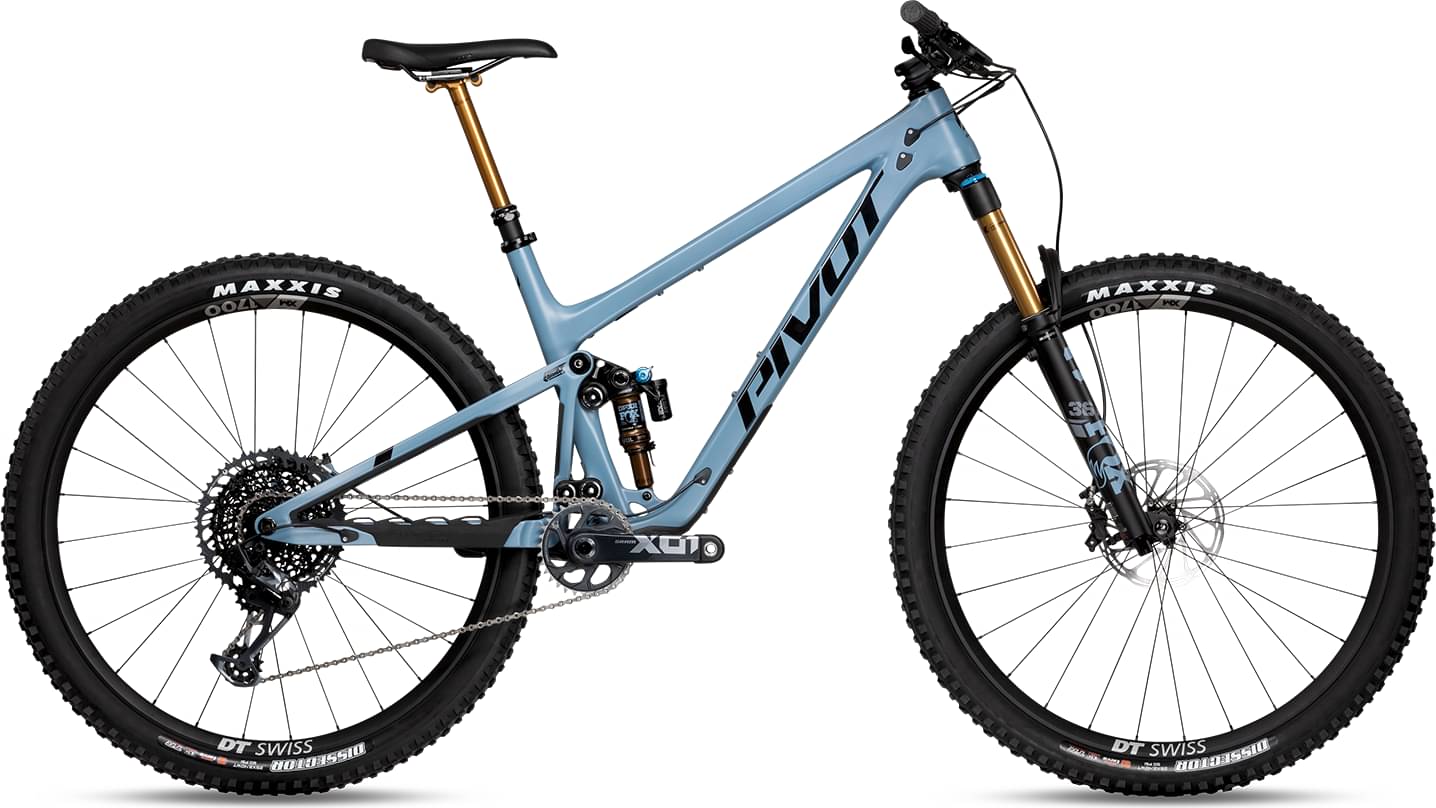

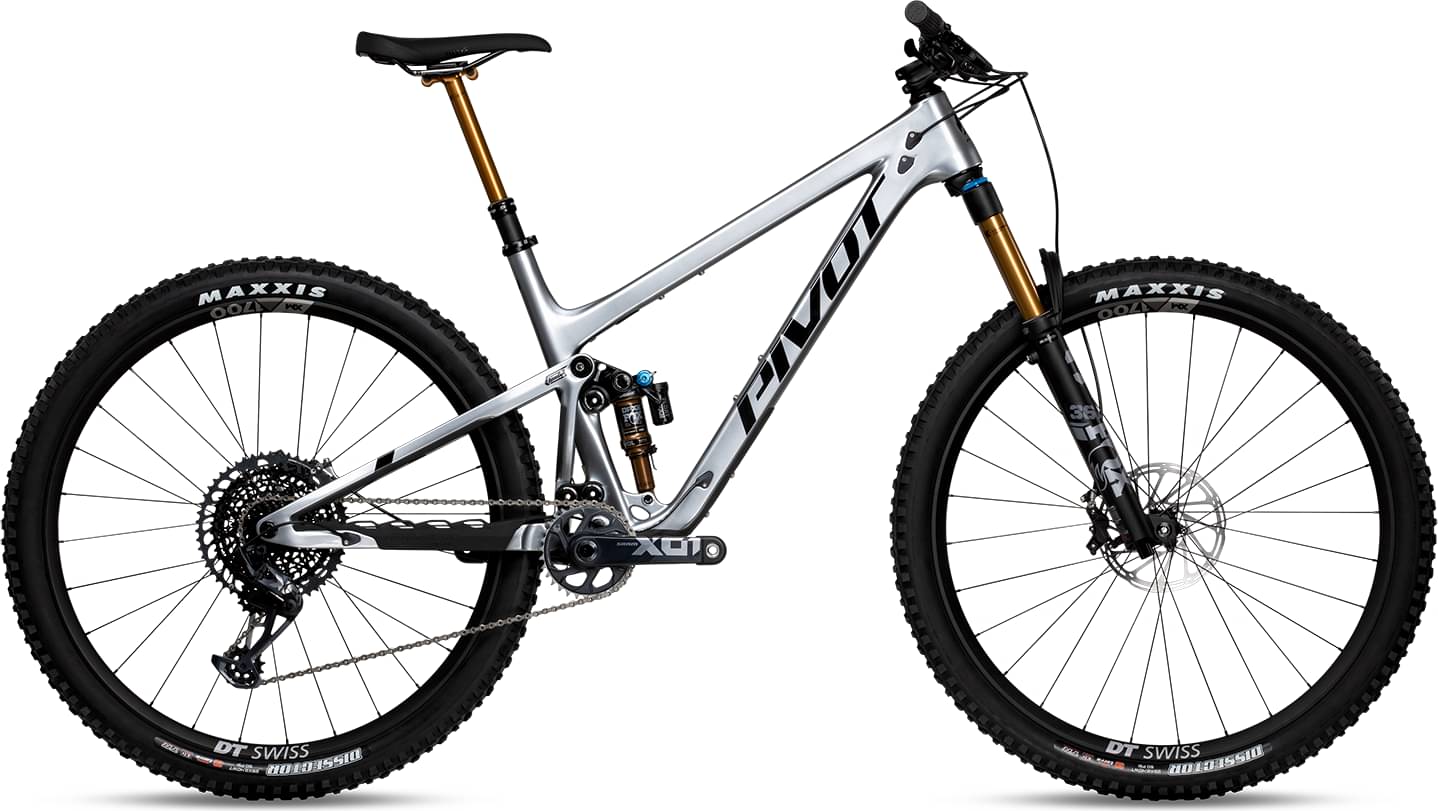

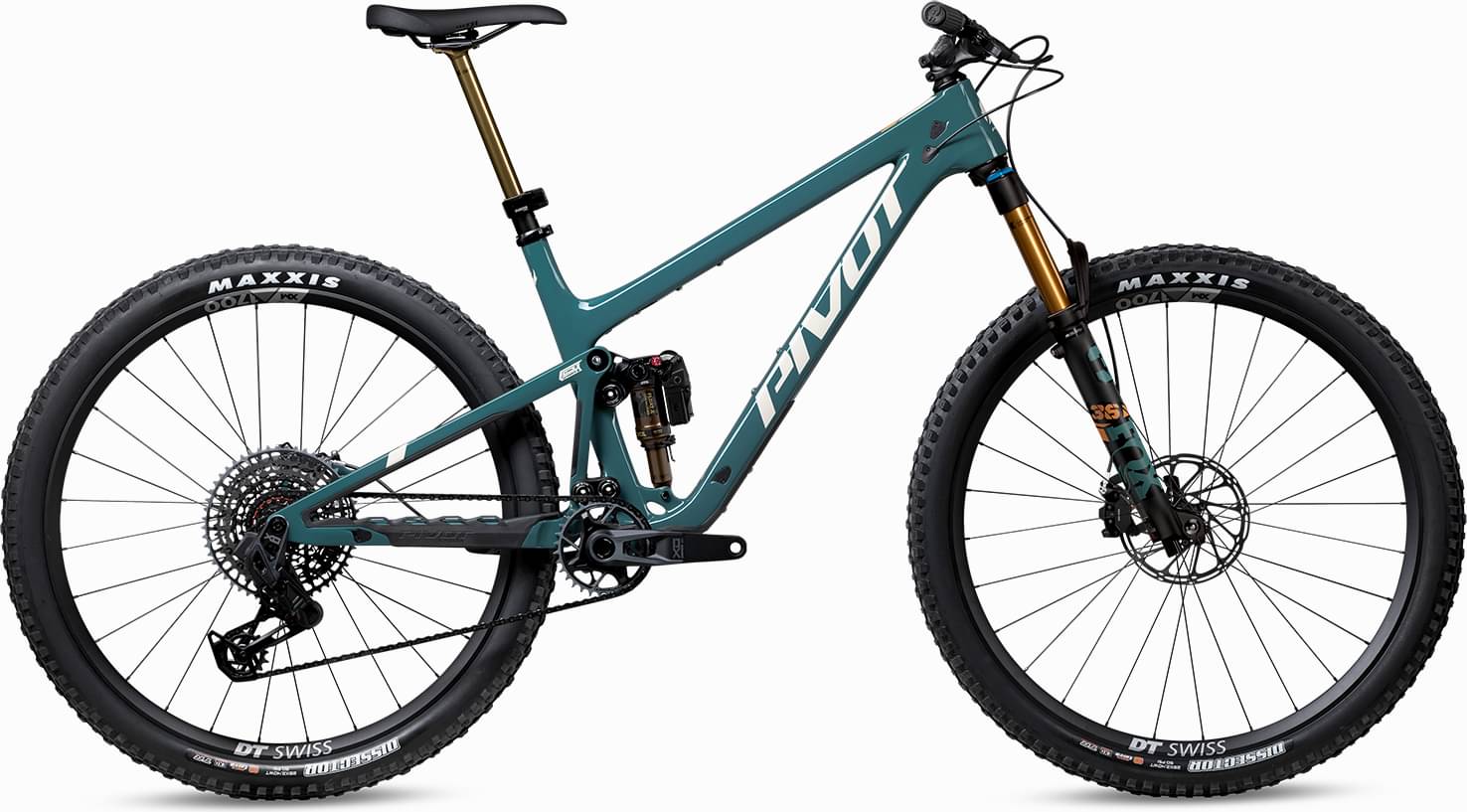

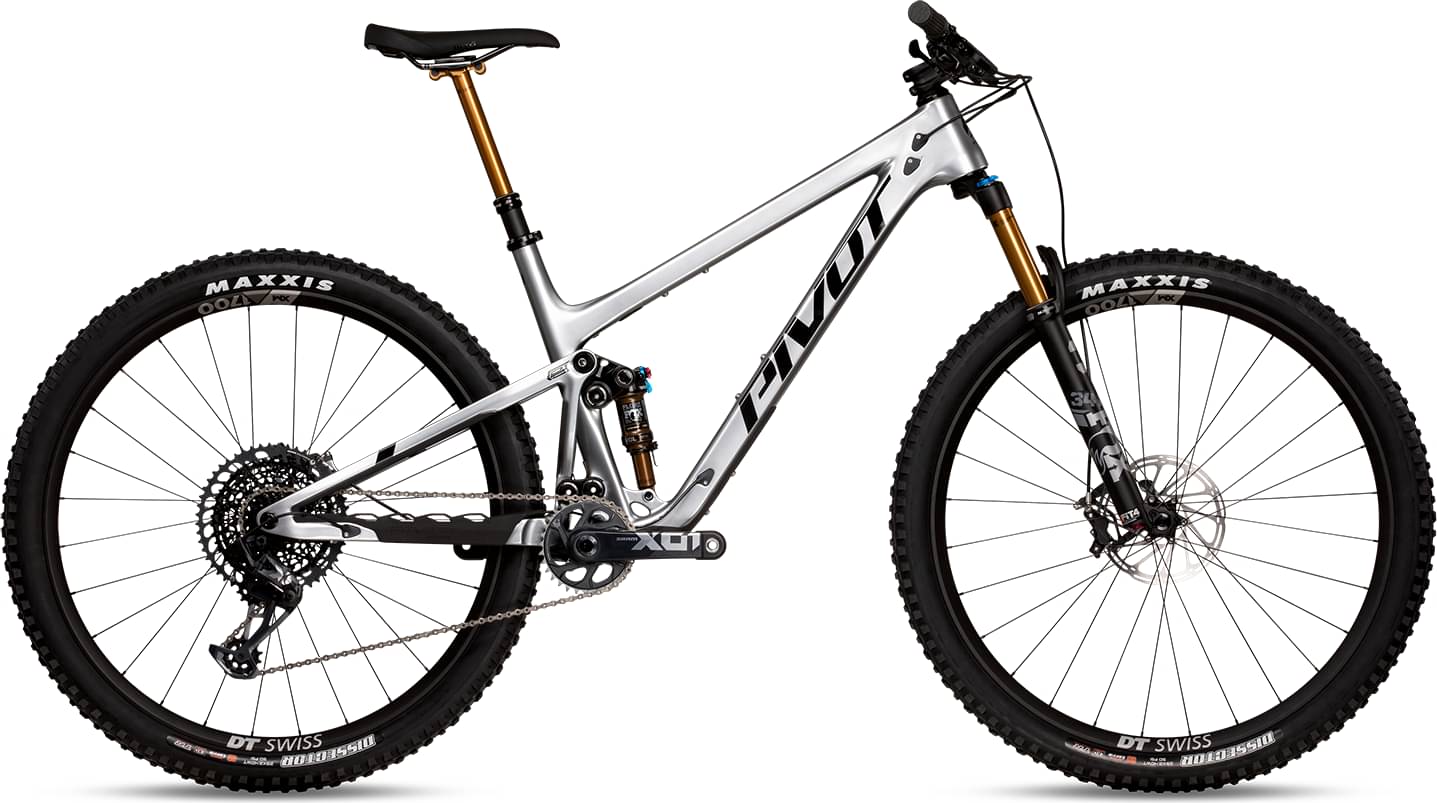

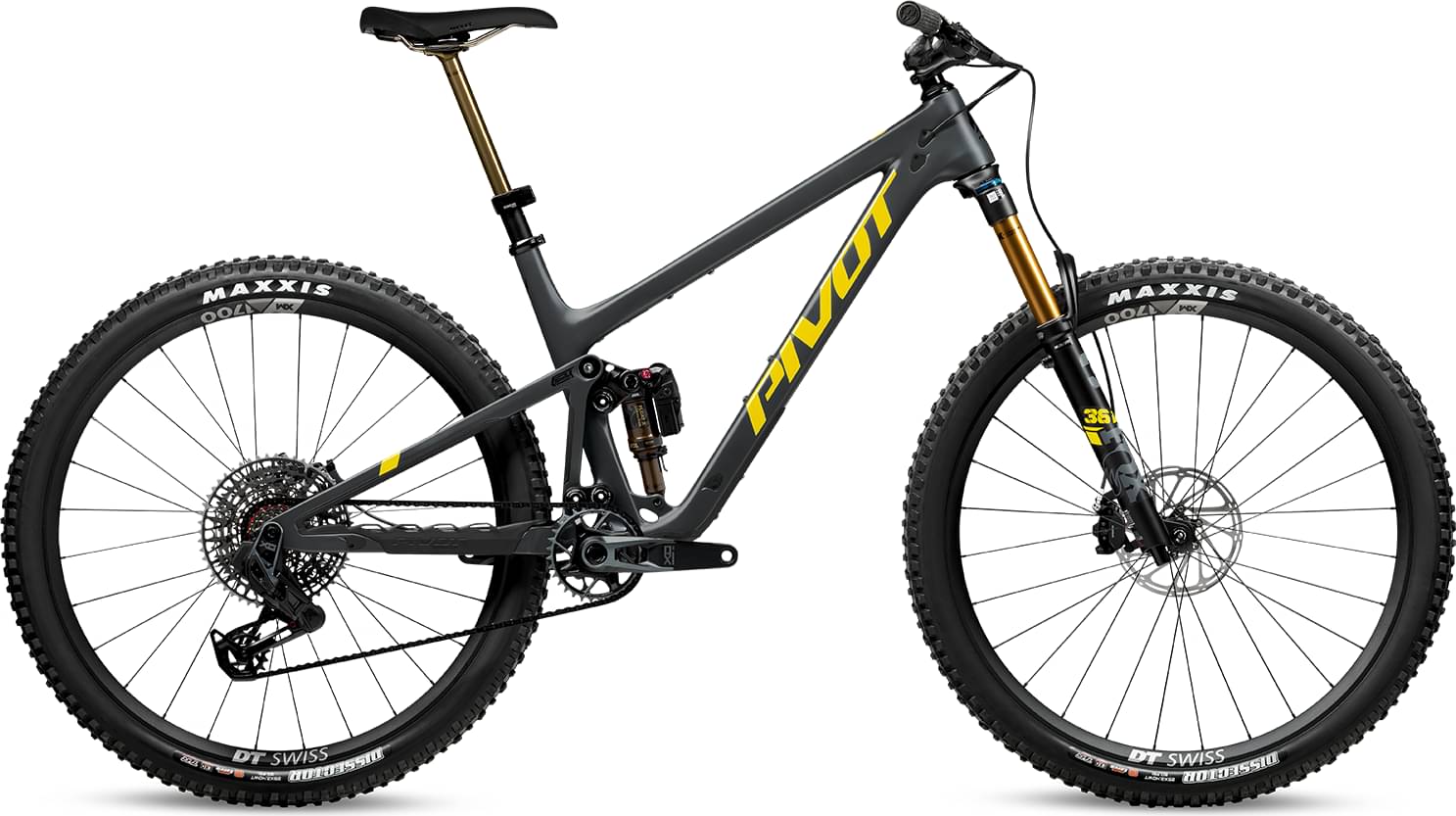

Pivot TRAIL 429 Pro X01 2024
2024 Mountain
Estimate price |
10,469$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 34 29", GRIP2 - 130mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-52t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
Newman Evolution, 30mm - 29", 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA, Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
SRAM G2 RSC 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 150mm (SM), 155mm - 180mm (MD), 200mm (LG-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.379 mm | 1.313 mm | 1.282 mm | 1.255 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 699 mm | 723 mm | 758 mm | 775 mm | 800 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 116 mm | 116 mm | 116 mm | 116 mm | 116 mm |
| Stack | 584 mm | 593 mm | 604 mm | 609 mm | 621 mm |
| Reach | 410 mm | 430 mm | 460 mm | 475 mm | 495 mm |
| Top Tube Length | 572 mm | 595 mm | 628 mm | 644 mm | 667 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 85 mm | 95 mm | 107 mm | 112 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1128 mm | 1152 mm | 1187 mm | 1204 mm | 1229 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 636 mm | 668 mm | 670 mm | 682 mm | 696 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
