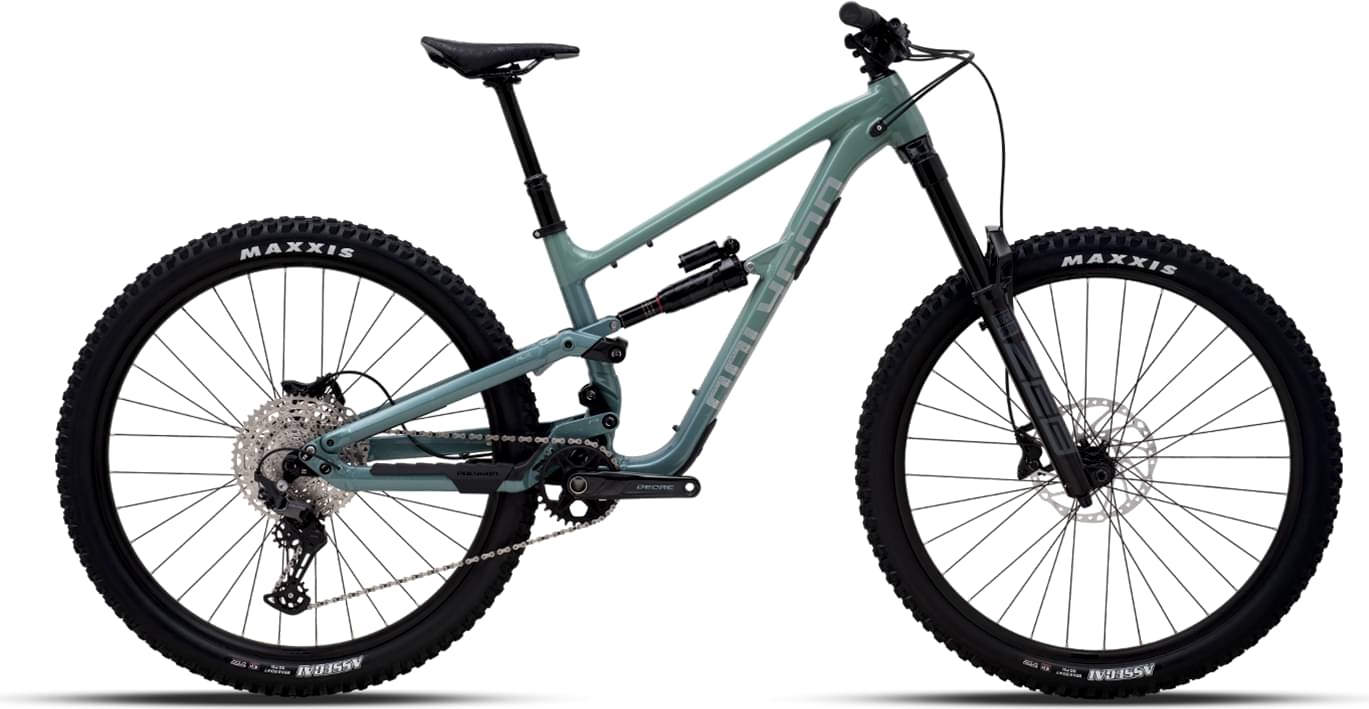

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Fork RockShox ZEB
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ROCKSHOX ZEB BASE RUSH RC TRAVEL 170MM, DEBON AIR, RUSH RC DAMPER,170mm TRAVEL, OFFSET: 44mm
Rear Shock
ROCKSHOX SUPER DELUXE SELECT+, E2E: 230x65mm
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M6100
Shift Levers
SHIMANO DEORE SL-M6100-R, 1x12-SPEED TRIGGER
Cassette
SHIMANO DEORE CS-M6100, 10-51T
Crank
SHIMANO FC-MT6120, 32T
Bottom Bracket
SHIMANO BSA THREADED
Chain
KMC X-12
Pedals
ALLOY FLAT W/ REPLACEABLE PIN
Wheels
Front Hub
F: SHIMANO TC-500 BOOST 15x110mm 32H CL / R: SHIMANO TC-500 12x148mm 32H CL FOR MICRO SPLINE
Rear Hub
F: SHIMANO TC-500 BOOST 15x110mm 32H CL / R: SHIMANO TC-500 12x148mm 32H CL FOR MICRO SPLINE
Rims
F: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY / R: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY
Spokes
F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE
Tires
MAXXIS ASSEGAI 29"x2.5"
Brakes
Brakes
SHIMANO BR-MT420 HYDRAULIC DISC
Brake Levers
SHIMANO BL-M4100
Cockpit
Handlebar
POLYGON EXPERT, W: 780mm, BB: 35mm, R/D: 30mm, B: 9degree
Headset
FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40
Seat
Saddle
LINC XTENT, CR-MO ø7mm
Seatpost
TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.37 mm | 1.322 mm | 1.287 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 788 mm | 810 mm | 832 mm | 857 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm | 138 mm |
| Stack | 625.5 mm | 630 mm | 634.5 mm | 643.4 mm |
| Reach | 440 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 583.6 mm | 604.6 mm | 626.4 mm | 647.7 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 415 mm | 430 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1221 mm | 1244 mm | 1266 mm | 1290 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 710 mm | 716 mm | 717 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
