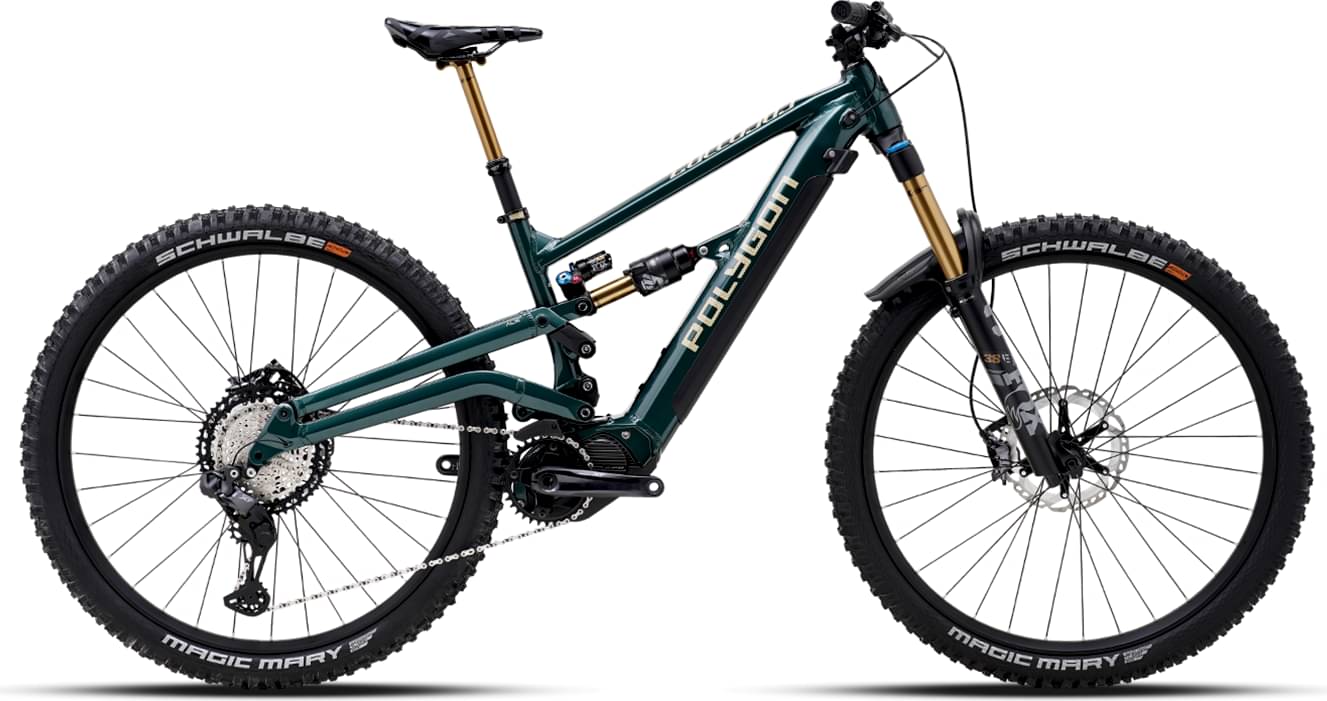

Polygon COLLOSUS N8XE 2024
2024 E-bike
Estimate price |
5,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset Ultegra Di2, Shimano -
Suspension Full -
Motor Shimano mid-drive -
Battery SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 14Ah) -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
FOX 38 FLOAT FACTORY
Rear Shock
FOX FLOAT X2 FACTORY
Drivetrain
Rear Derailleur
SHIMANO XT Di2 RD-M8150
Shift Levers
SHIMANO XT Di2 SW-M8150, 1x12-SPEED I-SPEC EV
Cassette
SHIMANO XT CS-M8100 10-51T MICROSPLINE
Crank
SHIMANO SM-CRE80-12-B 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC E12 FOR 12-SPEED
Pedals
ALLOY FLAT W/ REPLACEABLE PIN
Wheels
Front Hub
F: SHIMANO TC500 15x110mm 32H CL / R: SHIMANO TC500 12x148mm 32H CL FOR MICROSPLINE
Rear Hub
F: SHIMANO TC500 15x110mm 32H CL / R: SHIMANO TC500 12x148mm 32H CL FOR MICROSPLINE
Rims
ALLOY DOUBLE WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE
Spokes
F: STAINLESS 14G NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE / R: STAINLESS 14G NDS:296mm DS:294mm W/ 12mm BRASS NIPPLE
Tires
SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT
Brakes
Brakes
SHIMANO XT M8120 HYDRAULIC DISC
Brake Levers
SHIMANO XT BL-M8100
Cockpit
Stem
Raceface Affect R 35, 40mm Length, 0° Drop
Handlebar
RACE FACE AFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree
Headset
FSA NO.57E W/ SEALED BEARING
Seat
Saddle
XTEND
Seatpost
FOX TRANSFER FACTORY SERIES 150mm (S, M) / 175mm (L, XL) TRAVEL, DxL: 30.9x418mm (S, M) / 475mm (L, XL)
Motor & Battery
Motor
SHIMANO DU-EP801 MID MOTOR 25kph / 20mph
Battery
SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 14Ah)
Charger
Shimano EC-E6002 w/ SM-BTE80
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.391 mm | 1.342 mm | 1.296 mm | 1.263 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779 mm | 801 mm | 824 mm | 848 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 626.16 mm | 630.68 mm | 635.19 mm | 644.22 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 594.56 mm | 615.6 mm | 636.65 mm | 658.73 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 410 mm | 420 mm | 430 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1212 mm | 1234 mm | 1256 mm | 1280 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 710 mm | 710 mm | 710 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
