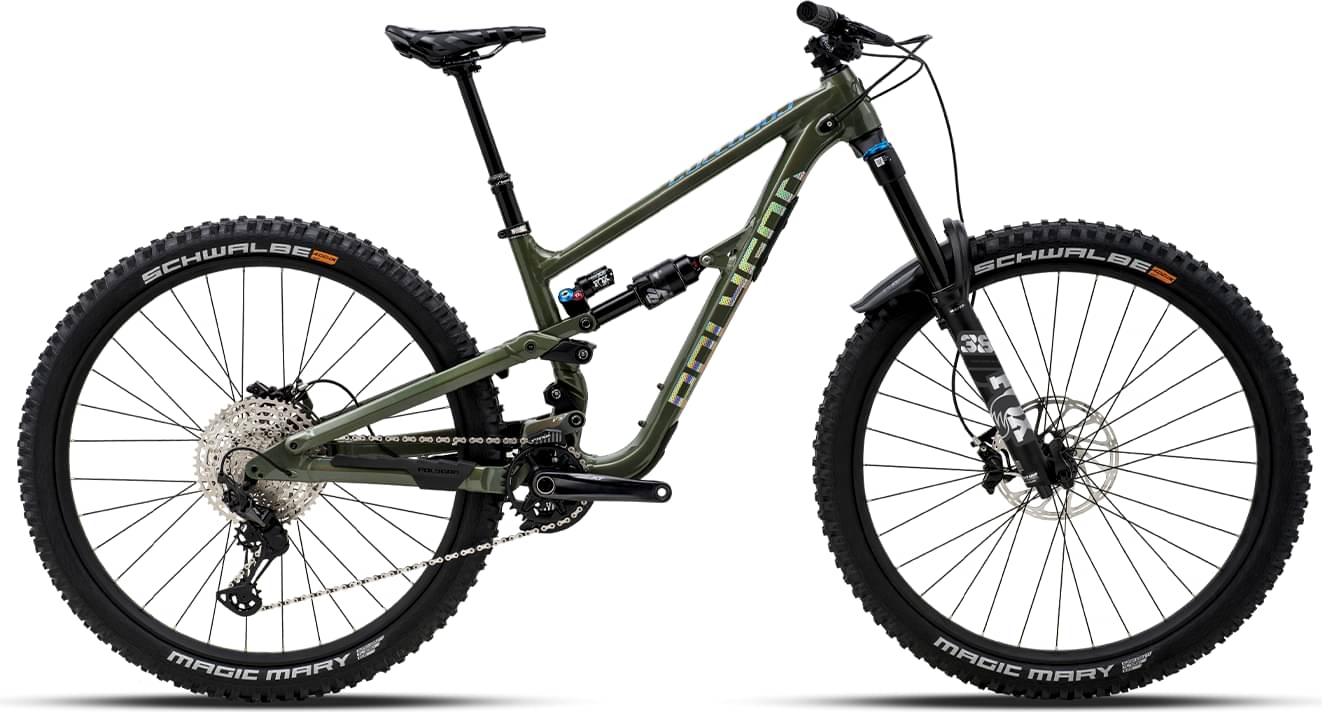

Polygon COLLOSUS N9 2023
2023 Mountain
Estimate price |
3,499$
Weight | 17.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
FOX 38 FLOAT PERFORMANCE, FLOAT EVOL, 170mm TRAVEL, OFFSET: 44mm, GRIP, 3POS, W/ FENDER
Rear Shock
FOX FLOAT X2
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100-SGS 12-SPEED
Shift Levers
SHIMANO XT SL-M8100-R 12-SPEED TRIGGER
Cassette
SHIMANO DEORE CS-M6100 12-SPEED 10-51T
Crank
SHIMANO XT FC-M8100-1 32T, MAX CHAIN RING: 36T, CRANK ARM: 170mm
Bottom Bracket
SHIMANO BB-MT501 BSA THREADED 73mm
Chain
KMC X-12 FOR 12-SPEED
Pedals
ALLOY FLAT W/ REPLACEABLE PIN
Wheels
Front Hub
F: ALLOY HUB BOOST 15x110mm 32H CL / R: ALLOY FREEHUB BOOST 12x148mm 32H
Rear Hub
F: ALLOY HUB BOOST 15x110mm 32H CL / R: ALLOY FREEHUB BOOST 12x148mm 32H
Rims
ALLOY DOUBLE WALL H:17.5mm W: 35mm 622-35 32H
Spokes
Stainless, Brass Nipple, F: 292/294 14G, R: 294/296 14G
Tires
SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT
Brakes
Brakes
SRAM CODE R HYDRAULIC DISC
Brake Levers
SRAM CODE R
Cockpit
Stem
Raceface Aeffect R 35, 50mm Length
Handlebar
ACE FACE AEFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree
Headset
FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40
Seat
Saddle
ENTITY XTEND, CR-MO ø7mm
Seatpost
TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DXL: 30.9 x 459mm (S, M) / 499mm (L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| Front Center | 786 mm | 808 mm | 832 mm | 855 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 138 mm | 138 mm | 138 mm | 138 mm |
| Stack | 628.92 mm | 633.39 mm | 641.09 mm | 646.82 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 590.58 mm | 611.61 mm | 633.39 mm | 654.71 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 400 mm | 415 mm | 430 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1226 mm | 1249 mm | 1273 mm | 1295 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 717 mm | 723 mm | 724 mm | 727 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
Model Overview
COLLOSUS N9 completes the Polygon Collosus model. Polygon released 20 bikes variations of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Polygon released this model in 2023, its price was 3499$. Comparing this to the average Enduro bike price, we see that the price is 2.86% smaller.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Polygon COLLOSUS N9 it’s weighing 17.8 kg (39.24 lbs). At this weight, is much heavier than average. In other words, this model is 24.74% heavier than the average Enduro bike.
Overview of components
Fork
Polygon COLLOSUS N9 2023 bike is equipped with the Fox Performance Float 38 fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT X2, with a travel distance of 170mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on COLLOSUS N9 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The COLLOSUS N9 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
COLLOSUS N9 comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Polygon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
