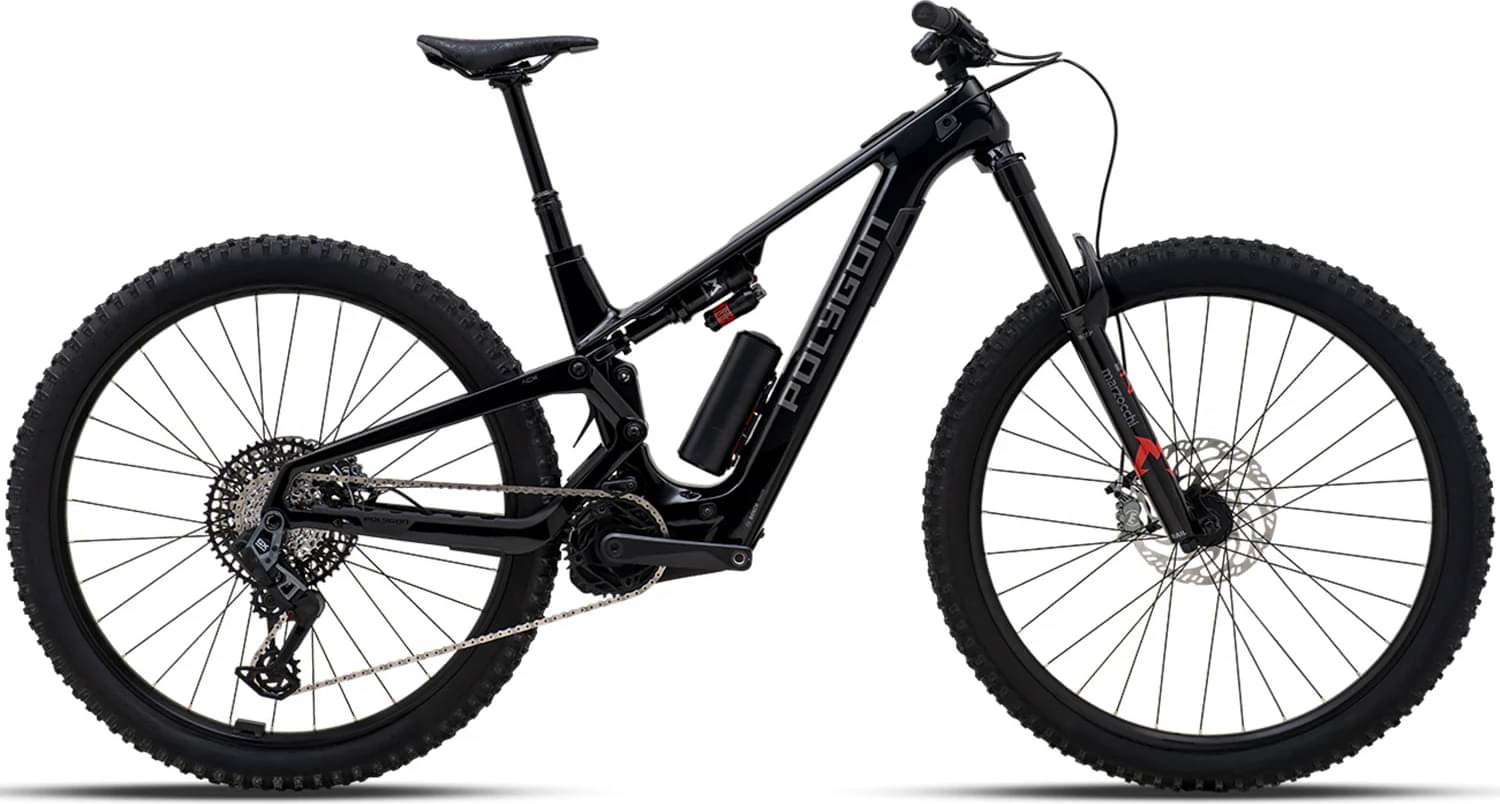

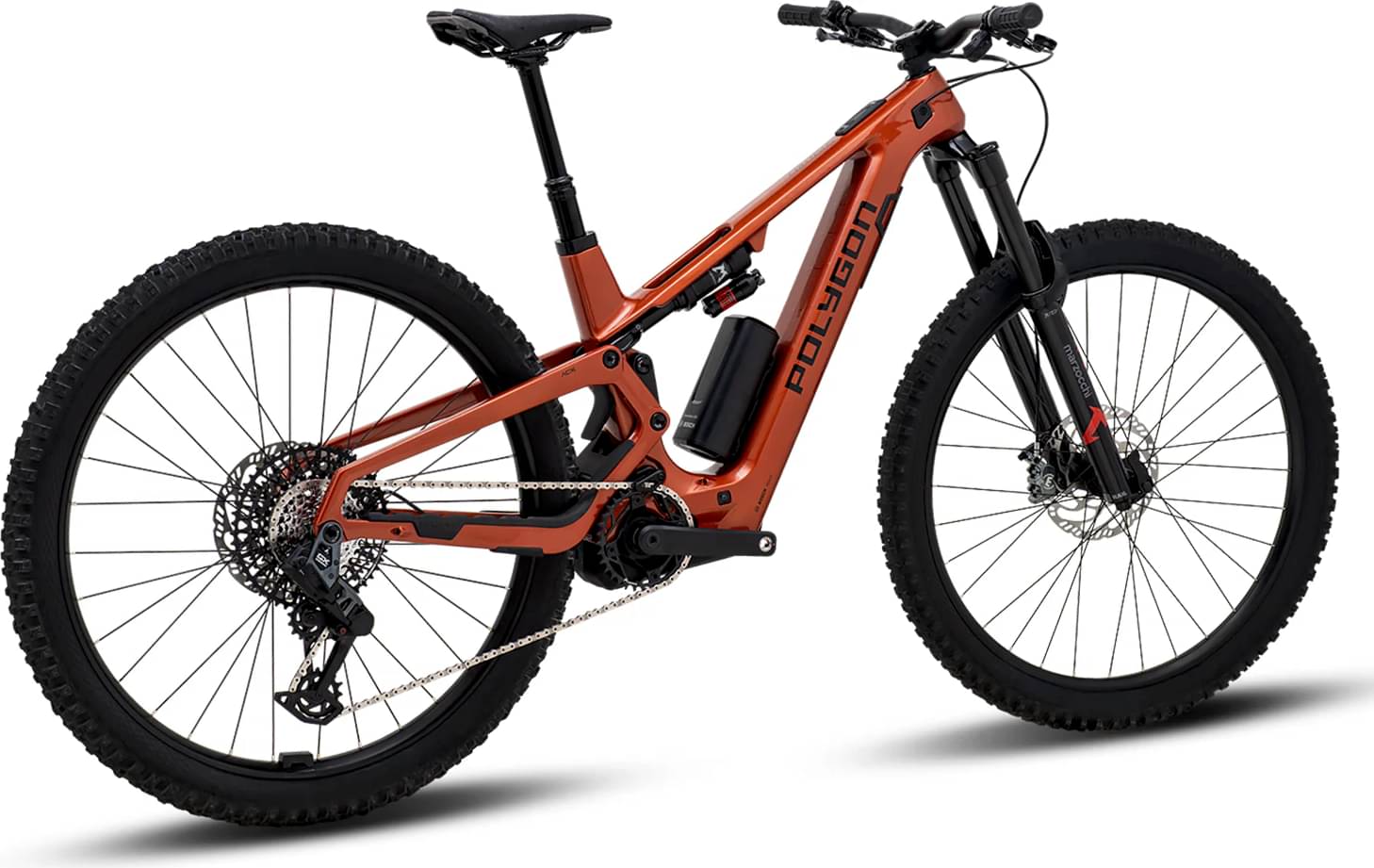

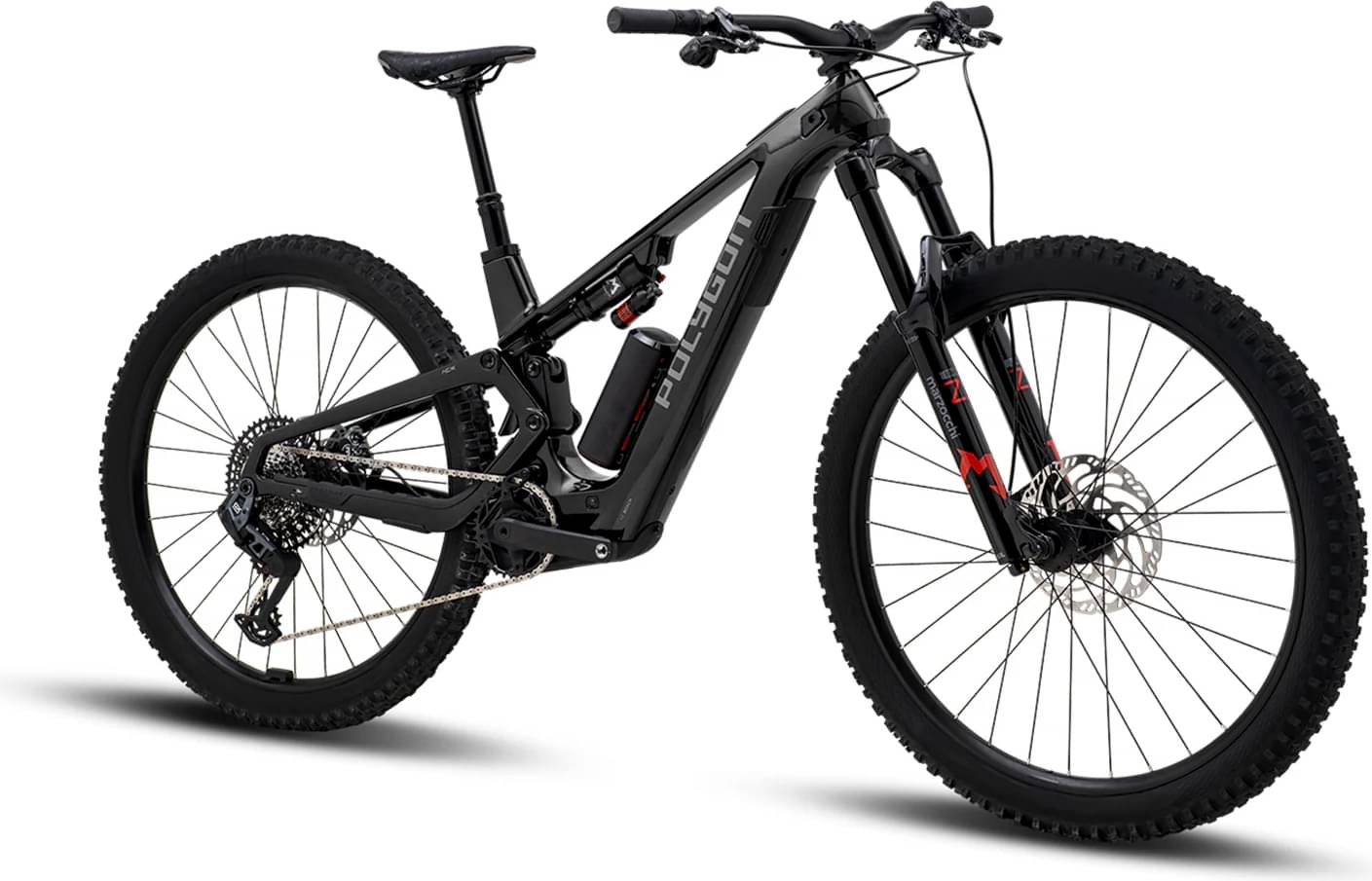

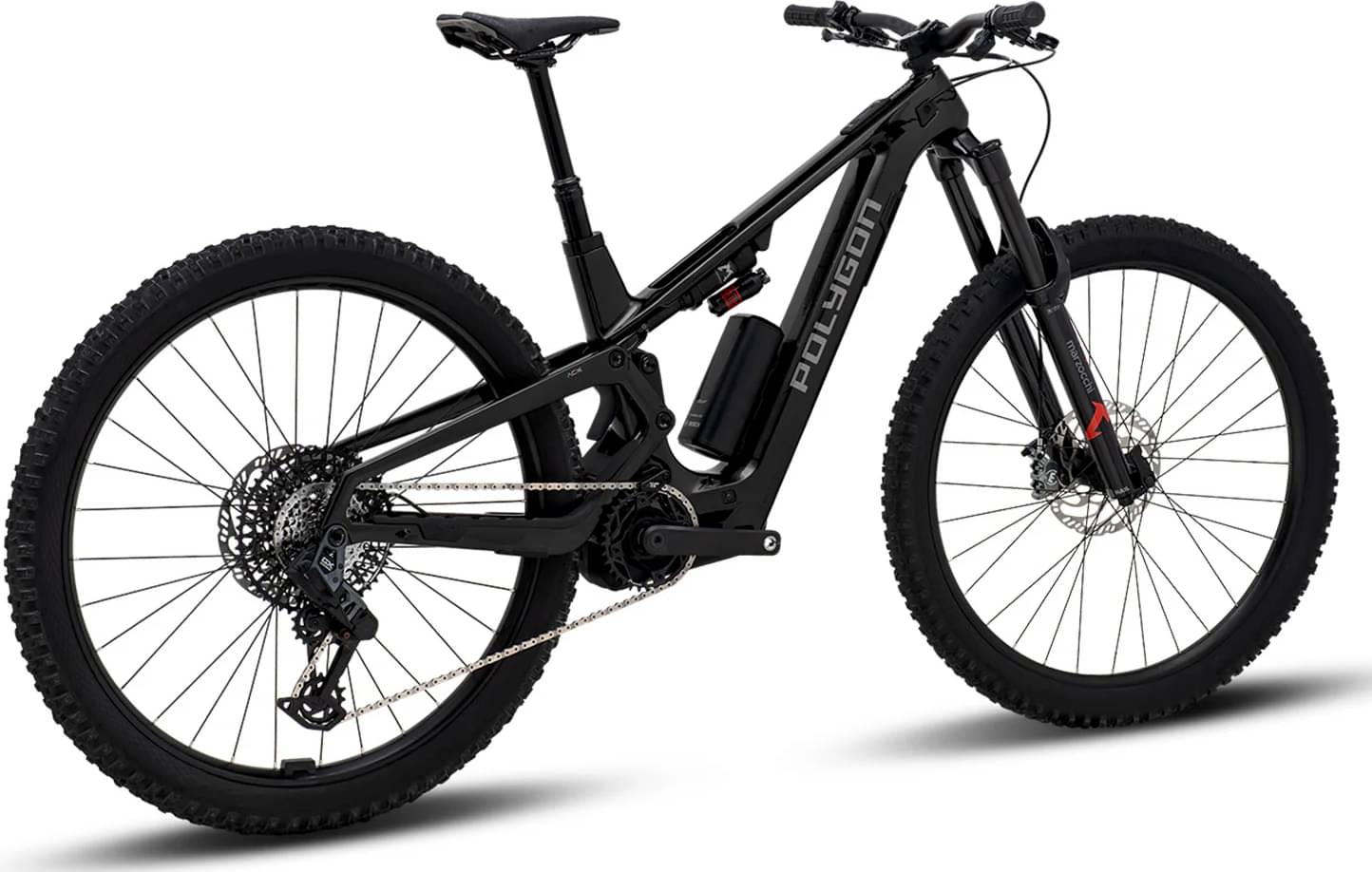

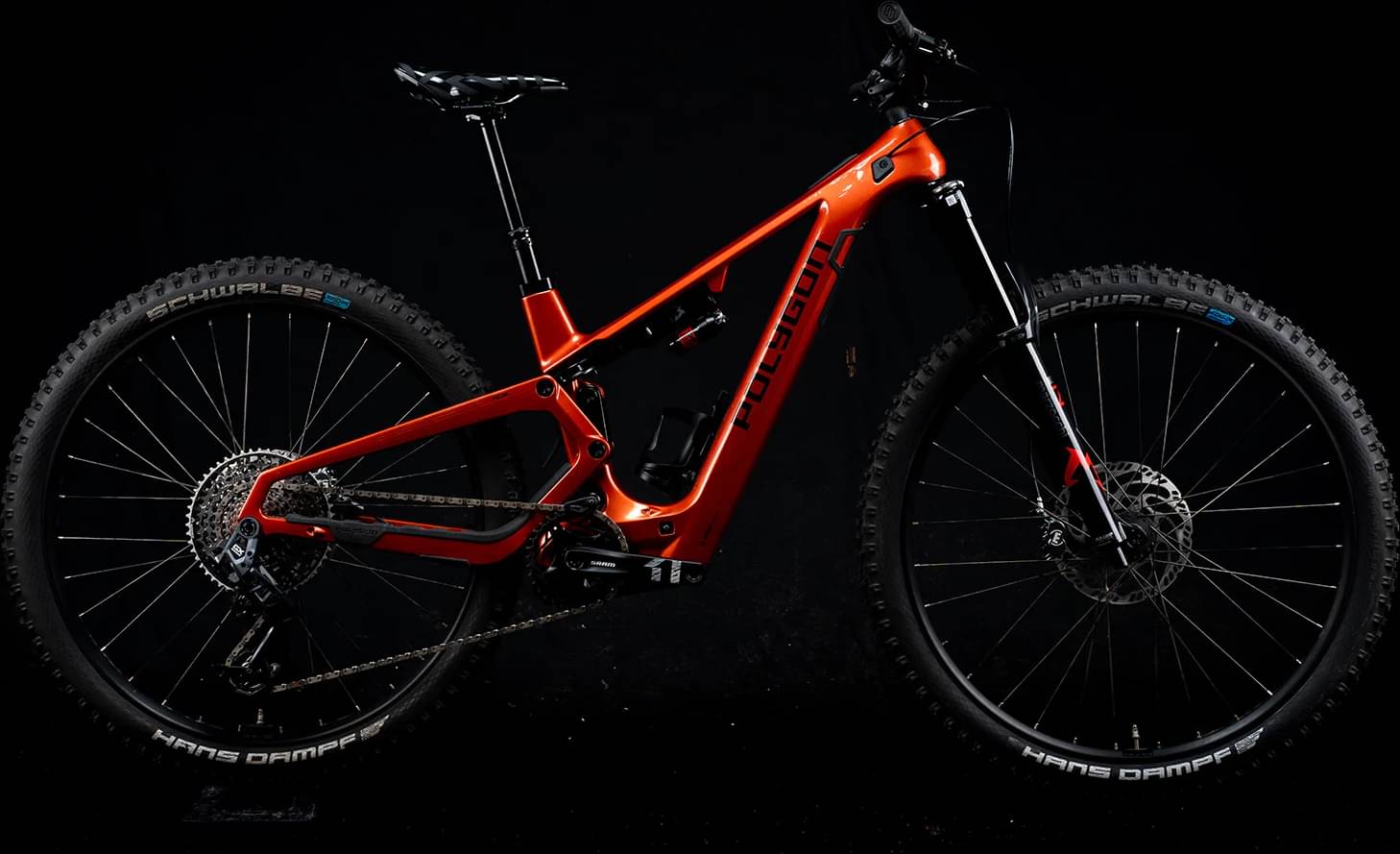

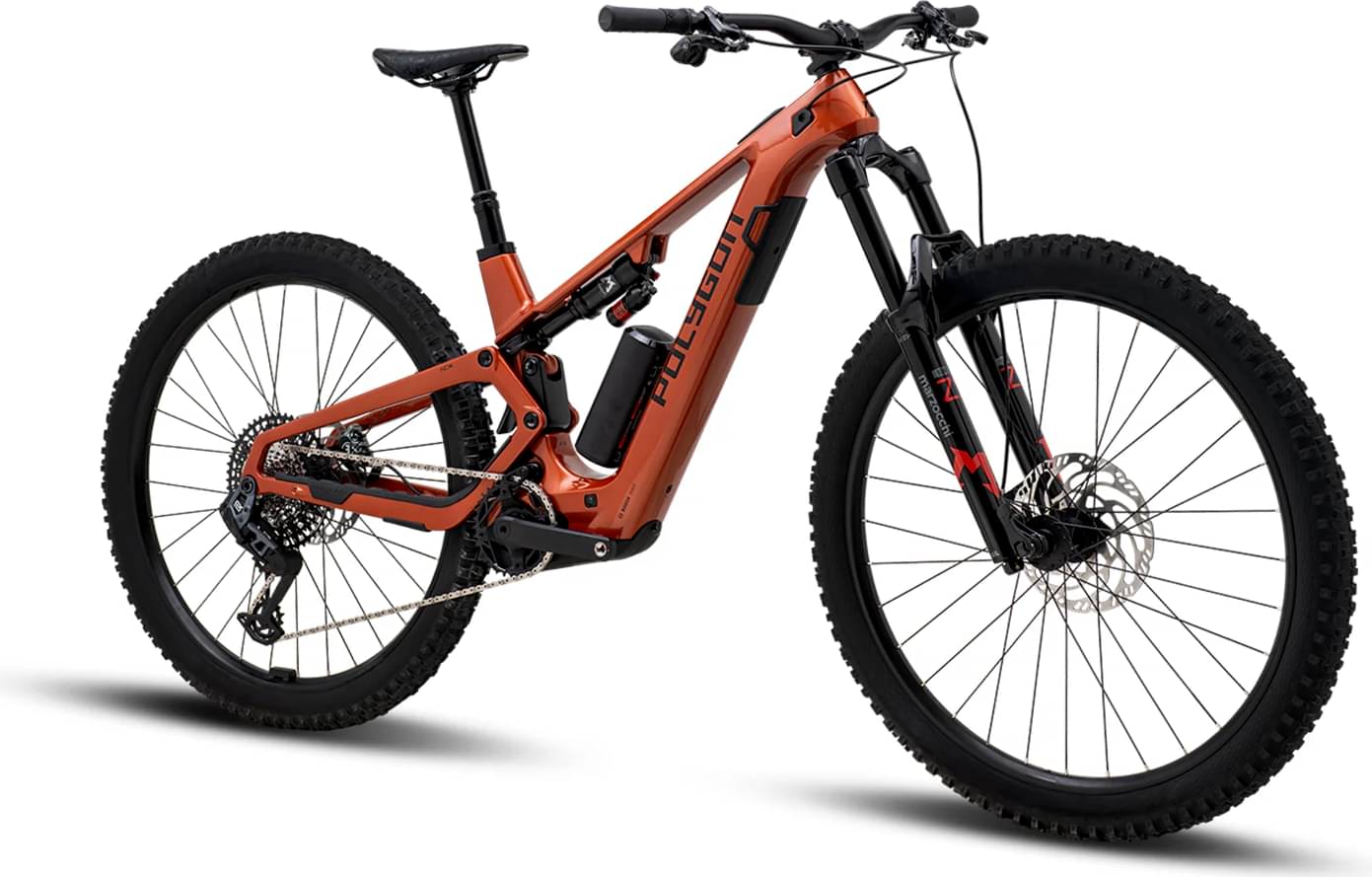

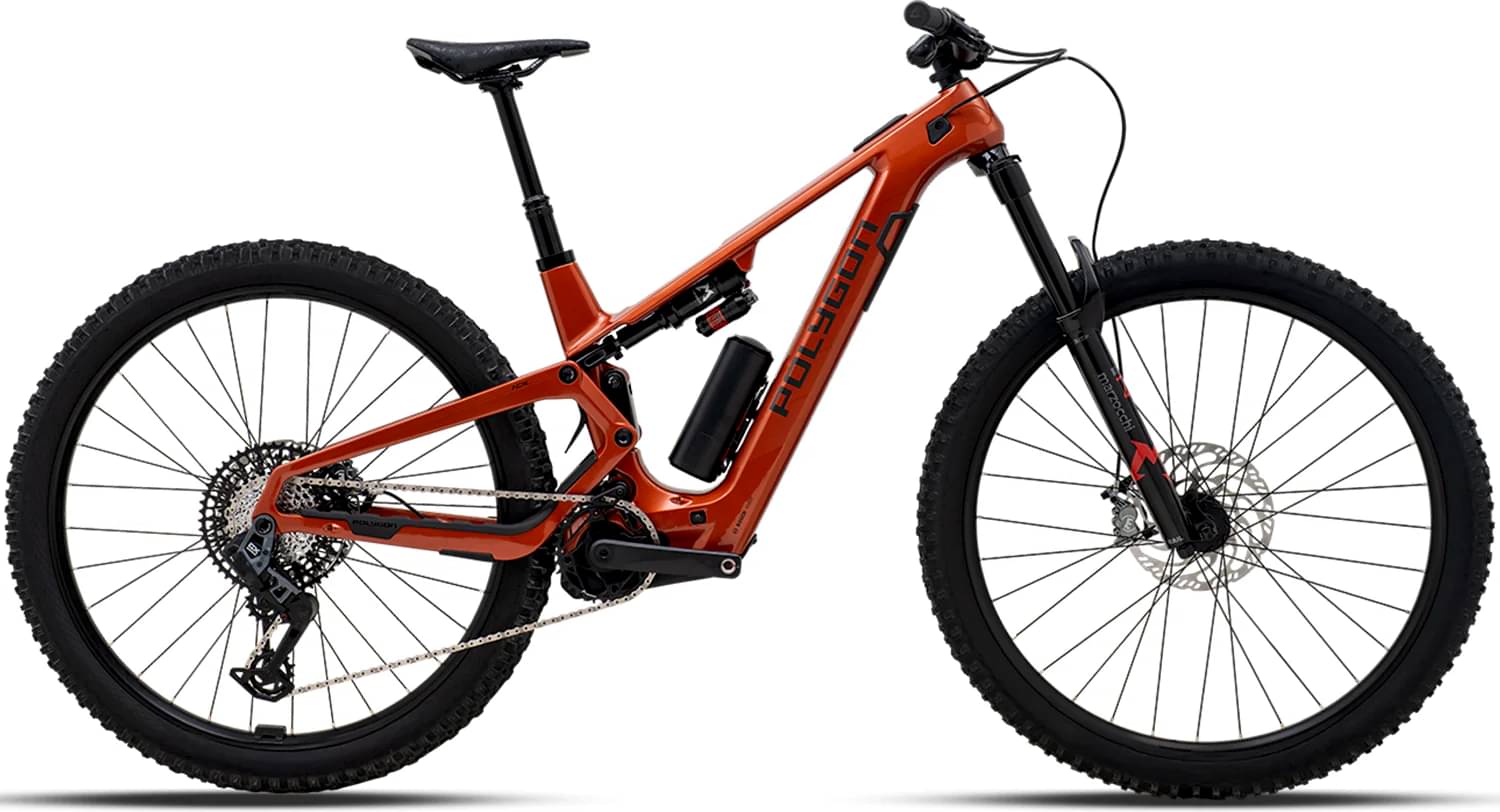

Polygon Collosus TLE 8 2024
2024 E-bike
Estimate price |
6,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Fork Marzocchi Bomber Z1
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch Compact Tube 400wh, 36V, Lithium-ion, With Bosch PowerMore 250Wh Range Extender -
Drivetrain 1 × 12 Electronic -
Brakes Magura MT7 Pro Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ACX E-trail Full carbon frame with single-piece rear triangle, T-Type compatible (UDH hanger), 34.9mm seat tube diameter
Suspension Fork
Marzocchi Bomber Z1 Air, 160mm travel, 44mm offset, Air spring, Rail damper with pressure balancing, Rebound adjust, 15x110mm
Rear Shock
Marzocchi Bomber Air, EVOL, Rebound Adjust, Compression adjust, 210x55mm, Air spring, Adjustable LSC/LSR
Drivetrain

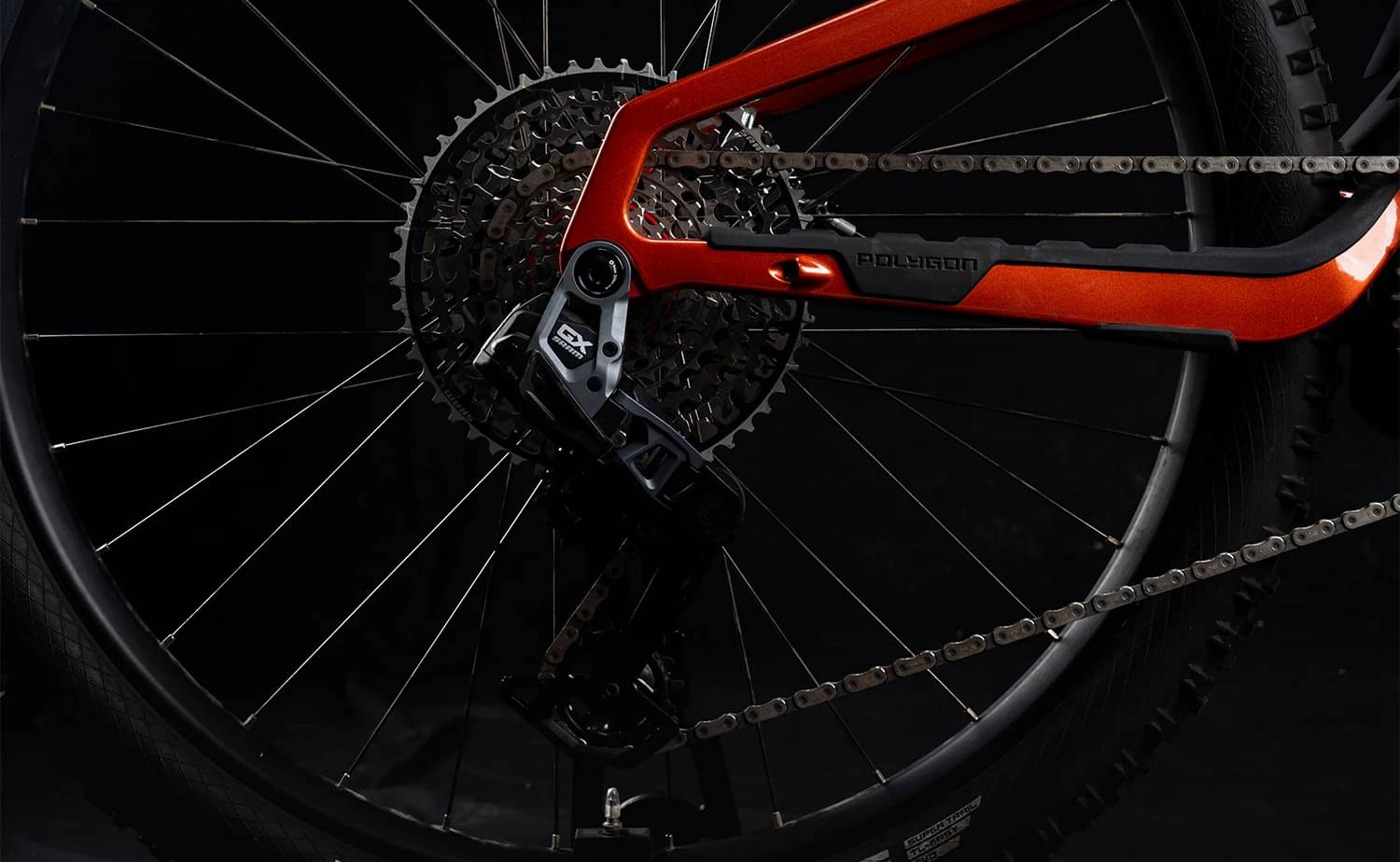

Rear Derailleur
SRAM GX AXS Eagle T-Type, 12-Speed
Shift Levers
SRAM EC AXS Pod Controller
Cassette
SRAM 1275 Eagle T-Type, XD, 10-52T, 12-Speed
Crank
34T
Chain
SRAM GX Eagle T-Type 12-Speed
Wheels
Front Hub
DT Swiss 370 Hybrid Classic front hub, 15x110mm, 32H, 6B
Rear Hub
DT Swiss 370 Hybrid Classic rear hub, 12x148mm, 32H, 6B, XD driver.
Rims
Polygon MT6 Alloy Double Wall front rim, 32H, Internal Width: 30mm, Tubeless Ready **
Tires
Schwalbe Hans Dampf Evo 29"x2.60", Super Trail, TLE, Addix SpeedGrip, Tubeless Ready **
Brakes
Brakes
Front: Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers, Rear: Magura MT7 4-piston Hydraulic Brakes with Magura HC3 levers
Cockpit
Stem
Race Face Aeffect R 35, Length: 40mm, Bar Bore: 35mm, Rise/Drop: 0Deg
Handlebar
Race Face Chester 35, Width: 780mm, Bar Bore: 35mm
Headset
FSA NO42/47/ACB, IS 42/28.6
Seat
Saddle
XTENT, CR-MO ø 7mm
Seatpost
Tranz X JD-YSP39KL Dropper Seatpost, 150mm (S, M) / 200mm (L, XL) travel, 0mm offset
Motor & Battery
Motor
Bosch Performance Line SX, 250W, 36V up to 340% of assistance, 55 Nm Torque
Battery
Bosch Compact Tube 400wh, 36V, Lithium-ion, With Bosch PowerMore 250Wh Range Extender
Charger
Bosch Standard Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.411 mm | 1.343 mm | 1.306 mm | 1.281 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 767 mm | 794 mm | 818 mm | 845 mm |
| Rake | 44 mm | 43 mm | 42 mm | 43 mm |
| Trail | 134 mm | 135 mm | 136 mm | 135 mm |
| Stack | 614 mm | 619 mm | 628 mm | 642 mm |
| Reach | 435 mm | 461 mm | 481 mm | 501 mm |
| Top Tube Length | 586 mm | 607 mm | 627 mm | 648 mm |
| Seat Tube Angle | 72 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 400 mm | 415 mm | 430 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1215 mm | 1242 mm | 1266 mm | 1293 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 748 mm | 757 mm | 764 mm | 770 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
