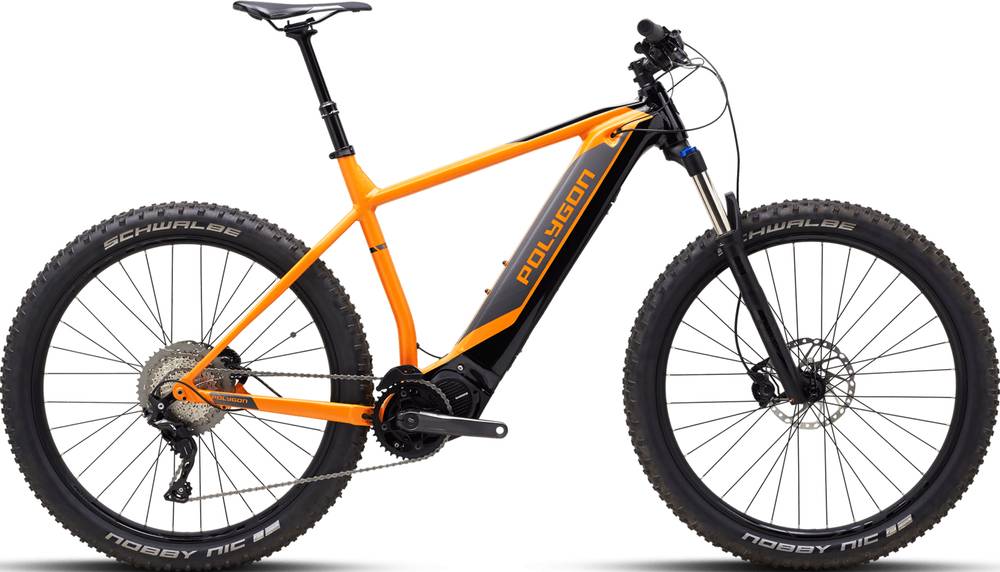

Polygon ENTIAT-E 2018
2018 E-bike
Estimate price |
2,799$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX ALLOY TRAIL GEOMETRY
Suspension Fork
ROCKSHOX RECON SILVER RL TRAVEL 120MM, BOOST
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8000
Shift Levers
SHIMANO XT SL-M8000-IR
Cassette
SHIMANO CS-M8000 DEORE XT
Crank
SHIMANO FC-E8050
Bottom Bracket
(MID MOTOR) SHIMANO DU-E8000
Chain
SHIMANO CN-HG601-114 L
Wheels
Rims
ALLOY DOUBLE WALL RIMS
Tires
SCHWALBE NOBBY NIC PERFORMANCE 27.5X3.00
Brakes
Brakes
SHIMANO BRM6000KITM6000
Cockpit
Stem
ENTITY EXPERT ALLOY STEM
Handlebar
ENTITY EXPERT ALLOY HANDLEBAR
Seat
Saddle
ENTITY EXPERT SADDLE
Seatpost
ADJUSTABLE HEIGHT SEATPOST 30.9 X 420MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 703 mm | 725 mm | 740 mm | 762 mm |
| Rake | 50 mm | 51 mm | 46 mm | 51 mm |
| Trail | 93 mm | 92 mm | 97 mm | 92 mm |
| Stack | 624.5 mm | 624.5 mm | 624.5 mm | 629.2 mm |
| Reach | 404.6 mm | 425 mm | 445 mm | 460 mm |
| Top Tube Length | 590 mm | 611.5 mm | 631.5 mm | 647.8 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1132 mm | 1154 mm | 1169 mm | 1191 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 687 mm | 696 mm | 728 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
About this model
ENTIAT-E is part of the Polygon E Entiat E model. 3 e-bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2799$. Doing a quick comparison, we notice that ENTIAT-E price is 20.22% smaller than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
ENTIAT-E weighs 20.9 kg (46.08 lbs) and is considerably lighter than the average. To sum up, it’s 13.4% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the ENTIAT-E e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ENTIAT-E comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the ENTIAT-E. Therefore, climbing or descending will be a breeze.
