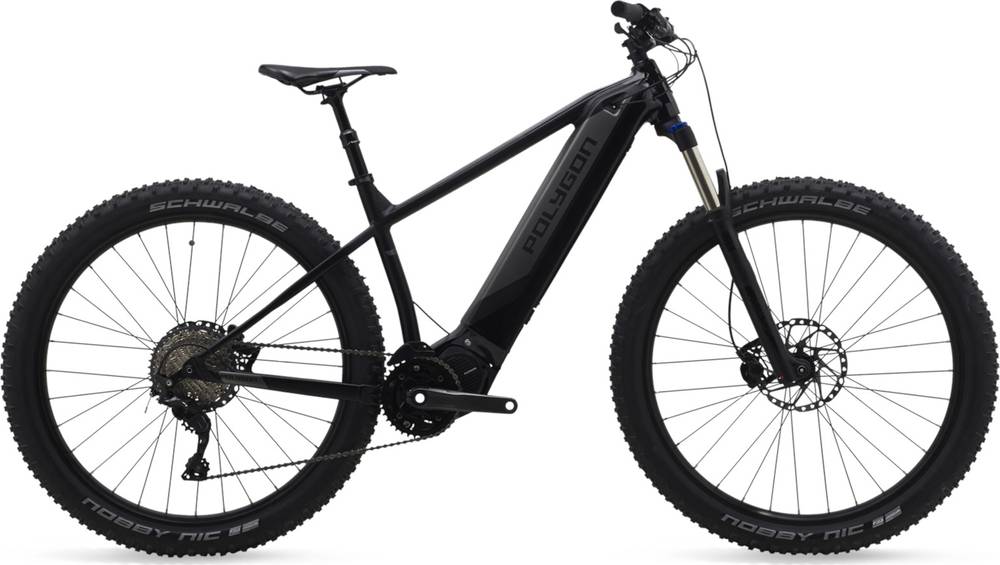

Polygon Entiat-E 2019
2019 E-bike
Estimate price |
3,599$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8020 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon Silver RL, Boost
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT, RD-M8000
Front Derailleur
None
Shift Levers
Shimano XT, SL-M8000-IR
Cassette
Shimano XT, CS-M8000
Crank
Shimano FC-E8050
Chain
Shimano CN-HG601, 114 link
Chain Guide
None
Pedals
Alloy
Wheels
Front Hub
Alloy Boost
Rear Hub
Alloy Boost
Rims
Alloy double wall
Spokes
Black stainless steel
Tires
Schwalbe Nobby Nic, performance, 27.5"x3.00"
Brakes
Brakes
Shimano BR-M6000
Brake Levers
Shimano BL-M6000
Cockpit
Stem
Entity Expert, alloy
Handlebar
Entity Expert, alloy
Headset
Internal caged bearing
Seat
Saddle
Entity Expert
Seatpost
Entity Expert, alloy, 420mm
Motor & Battery
Motor
Shimano DU-E8000
Battery
Shimano BT-E8020
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Stack | 624.5 mm | 624.5 mm | 624.9 mm | 629.2 mm |
| Reach | 404.6 mm | 425 mm | 445 mm | 460 mm |
| Top Tube Length | 590 mm | 611.5 mm | 631.5 mm | 647.8 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1132 mm | 1154 mm | 1169 mm | 1191 mm |
| Bottom Bracket Drop | 42 mm | 42 mm | 42 mm | 42 mm |
| Standover Height | 687 mm | 696 mm | 728 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Entiat-E is part of the Polygon E Entiat E model. Polygon launched 3 e-bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 3599$. Doing a quick comparison, we notice that Entiat-E price is 6.95% higher than the average cost of a Trail e-bike.
Average weight for Trail e-bikes
If we make a quick analysis of the average weight of a Trail e-bike, we get 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 20.9 kg (46.08 lbs), Polygon e-bike is considerably lighter than average. In conclusion, the average Trail e-bike weighs 13.4% more than Entiat-E.
Overview of components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Entiat-E model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
