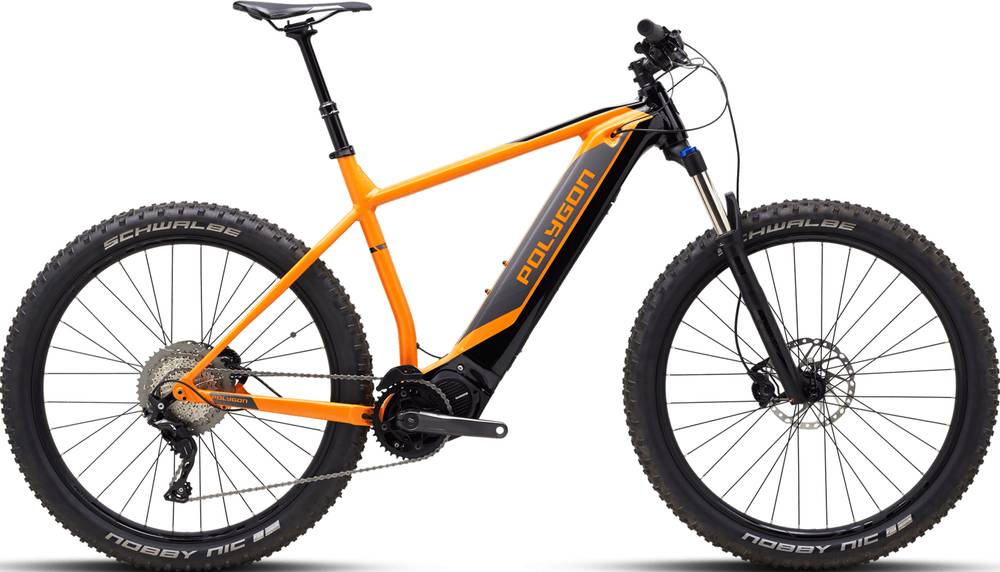

Polygon ENTIAT-E 2020
2020 E-bike
Estimate price |
2,799$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX ALLOY TRAIL GEOMETRY
Suspension Fork
ROCKSHOX RECON SILVER RL TRAVEL 120MM, BOOST
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8000
Shift Levers
SHIMANO XT SL-M8000-IR
Cassette
SHIMANO CS-M8000 DEORE XT
Crank
SHIMANO FC-E8050
Bottom Bracket
(MID MOTOR) SHIMANO DU-E8000
Chain
SHIMANO CN-HG601-114 L
Wheels
Rims
ALLOY DOUBLE WALL RIMS
Tires
SCHWALBE NOBBY NIC PERFORMANCE 27.5X3.00
Brakes
Brakes
SHIMANO BRM6000KITM6000
Cockpit
Stem
ENTITY EXPERT ALLOY STEM
Handlebar
ENTITY EXPERT ALLOY HANDLEBAR
Seat
Saddle
ENTITY EXPERT SADDLE
Seatpost
ADJUSTABLE HEIGHT SEATPOST 30.9 X 420MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.47 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 703 mm | 725 mm | 740 mm | 762 mm |
| Rake | 50 mm | 51 mm | 46 mm | 51 mm |
| Trail | 93 mm | 92 mm | 97 mm | 92 mm |
| Stack | 624.5 mm | 624.5 mm | 624.5 mm | 629.2 mm |
| Reach | 404.6 mm | 425 mm | 445 mm | 460 mm |
| Top Tube Length | 590 mm | 611.5 mm | 631.5 mm | 647.8 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm | 533 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1132 mm | 1154 mm | 1169 mm | 1191 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 687 mm | 696 mm | 728 mm | 835 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
Model Overview
ENTIAT-E completes the Polygon E Entiat E model. Polygon released 3 e-bikes variations of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Polygon ENTIAT-E price was 2799$. Comparing this to the average Trail e-bike price, we see that the price is 20.22% lower.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Polygon ENTIAT-E it’s weighing 20.9 kg (46.08 lbs). At this weight, is considerably lighter than average. In other words, this model is 13.4% lighter than the average Trail e-bike.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The ENTIAT-E 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon ENTIAT-E is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Polygon ENTIAT-E comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
