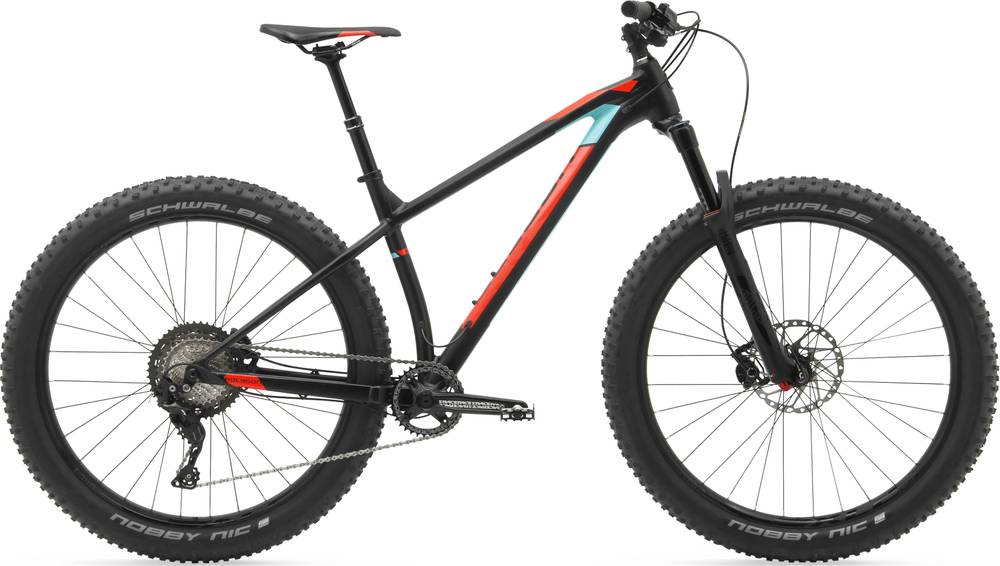

Polygon ENTIAT TR8 2017
2017 Mountain
Estimate price |
1,699$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX TRAIL, BOOST 12X148MM O.L.D. POST MOUNT, INTERNAL SHIFTING ROUTE
Suspension Fork
ROCKSHOX REVELATION, TRAVEL 120MM, TAPERED STEERER, BOOST 15X110MM O.LD.
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8000-GS
Shift Levers
SHIMANO DEORE SLX SL-M7000
Cassette
SUNRACE CSMX8.EAZ, 11-SPEED 11-46T
Crank
RACE FACE RIDE SINGLE 34T, 170MM (S-M), 175MM (L)
Bottom Bracket
RACE FACE BB BSA
Chain
KMC X-11
Wheels
Rims
ENTITY BOOST FRONT & REAR WITH SEALED BEARING HUBS
Tires
SCHWALBE NOBBY NIC, 27.5”X3.00”, CLINCHER
Brakes
Brakes
SHIMANO BR-M615
Cockpit
Stem
ENTITY XPERT, ALLOY, 60MM
Handlebar
ENTITY XPERT, ALLOY, 740MM
Seat
Saddle
ENTITY ASSAULT, CR-MO RAIL
Seatpost
ADJUSTABLE HEIGHT W/ ALLOY, 30.9X400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.47 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 670 mm | 699 mm | 721 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 617.8 mm | 622.4 mm | 627.1 mm |
| Reach | 378.5 mm | 405.1 mm | 425.8 mm |
| Top Tube Length | 560 mm | 591 mm | 616 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1094 mm | 1122 mm | 1145 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 688 mm | 697 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm |
Model Overview
ENTIAT TR8 is part of the Polygon Entiat model. 6 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Polygon ENTIAT TR8 price was 1699$. Comparing the average cost of a Trail bike to this one, you will see that ENTIAT TR8 price is 62.57% lower.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, ENTIAT TR8 has a weight of 14.8 kg (32.63 lbs). To sum up, it’s 14.02% heavier than the average weight of Trail bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
ENTIAT TR8 components
Fork
Polygon ENTIAT TR8 2017 bike is equipped with the RockShox Revelation RC fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on ENTIAT TR8 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Polygon ENTIAT TR8 bike has 3 sizes, in the range of 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Polygon ENTIAT TR8 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
