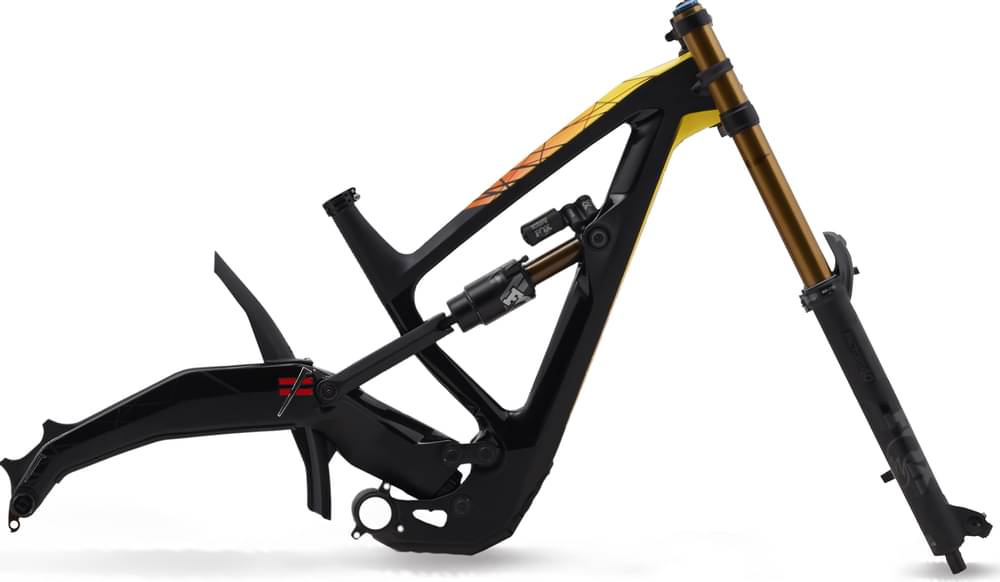

Polygon FORK SET XQUARONE DH Frameset 2018
2018 Mountain
Estimate price |
3,999$
Weight | 6.8 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 218mm -
Fork Fox Factory Float 40 -
Suspension Full
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218mm TRAVEL, FOR THRU AXLE SUPER BOOST 12x157mm O.L.D.
Suspension Fork
FOX FACTORY 40 FLOAT, 200mm TRAVEL, FOR 20x110mm O.L.D.
Rear Shock
FOX FACTORY FLOAT X2 (225x75mm, Trunnion & W/O Hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
FOR SUPER BOOST 55mm CHAINLINE (NOT INCLUDED)
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.4 mm | 1.344 mm | 1.274 mm |
| Bottom Bracket Height | 350.75 mm | 350.75 mm | 350.75 mm | 350.75 mm |
| Front Center | 758 mm | 783 mm | 813 mm | 838 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 595 mm | 595 mm | 605 mm | 605 mm |
| Reach | 400 mm | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 577.38 mm | 602.38 mm | 633.51 mm | 658.51 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 97.52 mm | 97.52 mm | 108.75 mm | 108.75 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1223 mm | 1253 mm | 1278 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 703 mm | 703 mm | 703 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
About this model
FORK SET XQUARONE DH Frameset is part of the Polygon Fork model. There are 4 frames that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill frames average price
If you want an acceptable Downhill frame you should know that the average price is 1923$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Polygon FORK SET XQUARONE DH Frameset price was 3999$. Comparing the average cost of a Downhill frame to this one, you will see that FORK SET XQUARONE DH Frameset price is 107.96% more expensive.
Downhill frames average weight
On a deeper look, we notice that the average weight of a Downhill frame is 4.28 kg (9.44 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
FORK SET XQUARONE DH Frameset weighs 6.8 kg (14.99 lbs) and is much heavier than the average. In other words, this model is 58.88% heavier than the average Downhill frame.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 40 model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this frame has the FOX FACTORY FLOAT X2 (225x75mm model, with a travel of 218mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Polygon FORK SET XQUARONE DH Frameset frame has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
