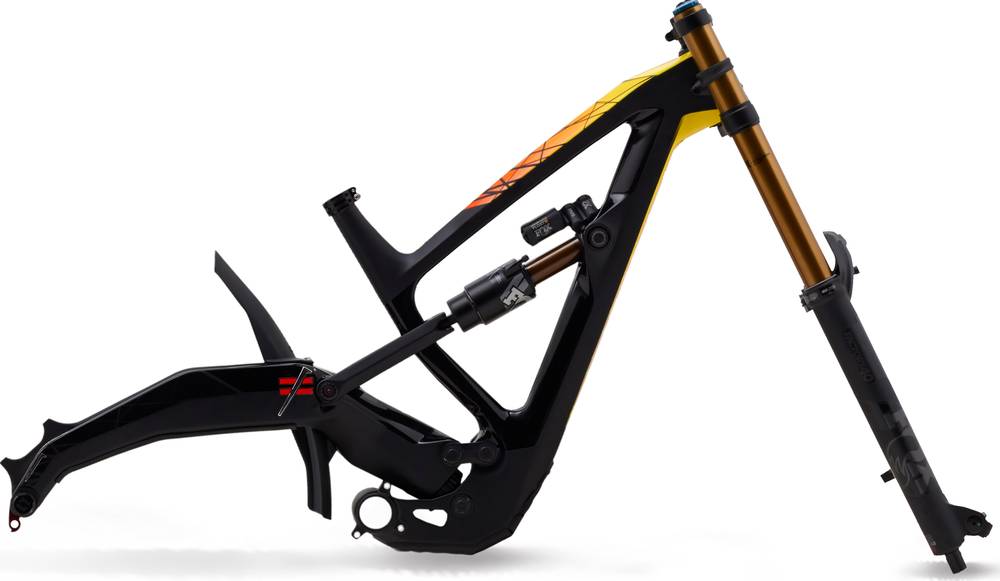

Polygon FORK SET XQUARONE DH Frameset 2020
2020 Mountain
Estimate price |
3,999$
Weight | 6.8 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 218mm -
Fork Fox Factory Float 40 -
Suspension Full
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218mm TRAVEL, FOR THRU AXLE SUPER BOOST 12x157mm O.L.D.
Suspension Fork
FOX FACTORY 40 FLOAT, 200mm TRAVEL, FOR 20x110mm O.L.D.
Rear Shock
FOX FACTORY FLOAT X2 (225x75mm, Trunnion & W/O Hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
FOR SUPER BOOST 55mm CHAINLINE (NOT INCLUDED)
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.4 mm | 1.344 mm | 1.274 mm |
| Bottom Bracket Height | 350.75 mm | 350.75 mm | 350.75 mm | 350.75 mm |
| Front Center | 758 mm | 783 mm | 813 mm | 838 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 595 mm | 595 mm | 605 mm | 605 mm |
| Reach | 400 mm | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 577.38 mm | 602.38 mm | 633.51 mm | 658.51 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 97.52 mm | 97.52 mm | 108.75 mm | 108.75 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1223 mm | 1253 mm | 1278 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 703 mm | 703 mm | 703 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
About this model
FORK SET XQUARONE DH Frameset belongs to the Polygon Fork model. Polygon launched 4 frames of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Downhill frames
According to our calculations, the average cost of a Downhill frame that is reliable is 1923$. However, even though the average price of a Downhill frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Polygon FORK SET XQUARONE DH Frameset price was 3999$. Comparing the average cost of a Downhill frame to this one, you will see that FORK SET XQUARONE DH Frameset price is 107.96% more expensive.
Downhill frames average weight
If we make a quick analysis of the average weight of a Downhill frame, we get 4.28 kg (9.44 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 6.8 kg (14.99 lbs), the FORK SET XQUARONE DH Frameset model is much heavier than average. In conclusion, the average Downhill frame weighs 58.88% less than FORK SET XQUARONE DH Frameset.
FORK SET XQUARONE DH Frameset components
Fork
The FORK SET XQUARONE DH Frameset comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FACTORY FLOAT X2 (225x75mm rear shock model, which has a travel of 218mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
This frame is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, you can easily find one that suits you.
