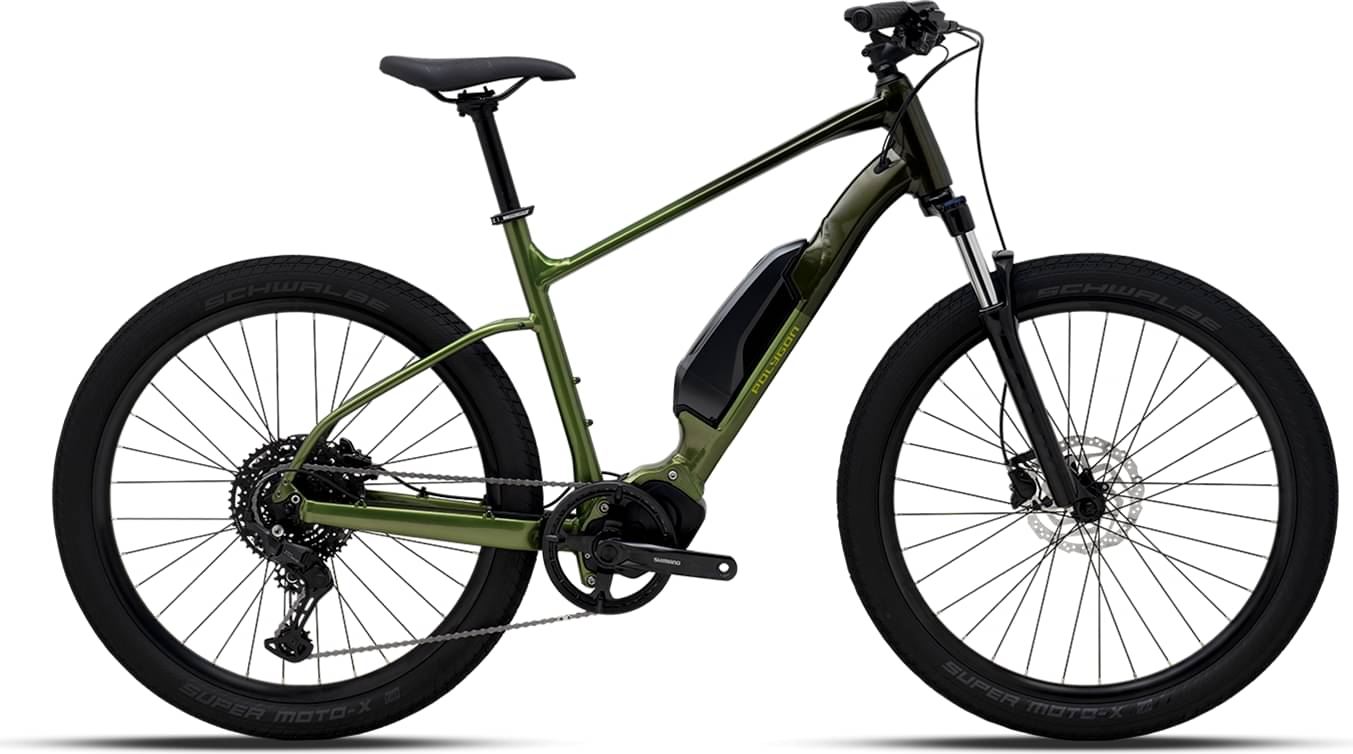

Polygon KALOSI LANES EVO HIGH STEP 2025
2025 E-bike
Estimate price |
1,549$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8010 FOR DOWN TUBE - 504Wh (36V, 14Ah) -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 161cm
MD
159cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SUNTOUR XCM32 HLO 100mm TRAVEL
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U6000-GS DIRECT ATTACH
Shift Levers
SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER
Cassette
SHIMANO CS-LG300-10 11-48T
Crank
SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG
Bottom Bracket
SHIMANO DU-E5000 DRIVE UNIT
Chain
SHIMANO CN-LG500
Pedals
PP PEDALS W/ REFLECTOR
Wheels
Front Hub
F: JOYTECH D761DSE QRx100mm 32H CENTERLOCK / R: JOYTECH D762DSE QRx135mm 32H CENTERLOCK
Rear Hub
F: JOYTECH D761DSE QRx100mm 32H CENTERLOCK / R: JOYTECH D762DSE QRx135mm 32H CENTERLOCK
Rims
ALLOY DOUBLE WALL 584x30C DEPTH:23mm 32H FOR TYRE 584-54/76
Spokes
F: STAINLESS J-BEND 14G NDS:270mm DS:270mm / R: STAINLESS J-BEND 14G NDS:270mm DS:270mm
Tires
SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62)
Brakes
Brakes
SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Brake Levers
SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Cockpit
Handlebar
POLYGON EXPERT ALLOY, W: 700mm, BB: 31.8mm, R/D: 25mm, B: 18degree
Headset
ZERO STACK (ZS) SEMI INTEGRATED SEALED BEARING FOR TAPER H/T, ZS 44/28.6 | ZS 56/30
Seat
Saddle
LINC EASE, STEEL ø7mm
Seatpost
POLYGON EXPERT ALLOY, DxL: 30.9 x 300mm
Motor & Battery
Motor
SHIMANO DU-E5000 MID MOTOR, CONTINUOUS RATED POWER 250Watt, MAXIMUM TORQUE 40Nm
Battery
SHIMANO BT-E8010 FOR DOWN TUBE - 504Wh (36V, 14Ah)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.48 mm | 1.512 mm |
| Bottom Bracket Height | 287 mm | 287 mm | 287 mm |
| Front Center | 616 mm | 631 mm | 650 |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 61 mm | 58 mm | 58 mm |
| Stack | 561 mm | 592 mm | 620 mm |
| Reach | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 546 mm | 570 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 139 mm | 170 mm | 200 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1067 mm | 1082 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 704 mm | 736 mm | 766 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 150 cm | 159 cm | 169 cm |
| Rider Max Height | 161 cm | 171 cm | 180 cm |
