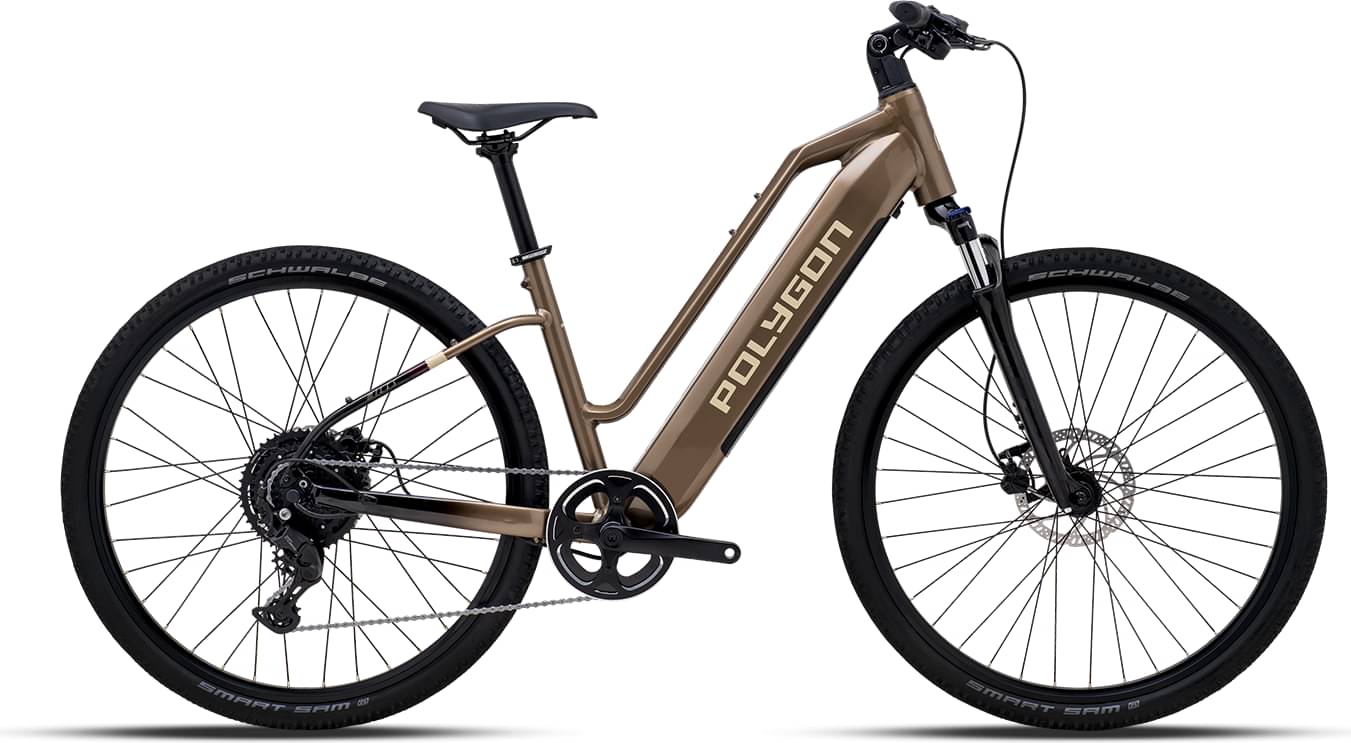

Polygon KALOSI MILES LOW STEP 2025
2025 E-bike
Estimate price |
1,199$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery GREENWAY ZZ618 520Wh LG21700 3PIN M6.6 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
160cm - 171cm
LG
169cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SR SUNTOUR SF20-NEX 63mm TRAVEL
Drivetrain
Rear Derailleur
SHIMANO CUES RD-U4000 9-SPEED
Shift Levers
SHIMANO CUES SL-U4010-R, 1x9-SPEED TRIGGER
Cassette
SHIMANO CUES CS-LG300-9 9-SPEED 11-46T CASSETTE
Crank
PROWHEEL EB01-PRO44A-S3 BK 44TX170MM
Bottom Bracket
BAFANG SR PA21.32.ST FOR BB SHELL 68MM (TORQUE SENSOR)
Chain
KMC EGLIDE 9/10/11-SPEED
Pedals
ONE PIECE PP FLAT
Wheels
Front Hub
F: ALLOY 9x100mm 36H 6B / R: BAFANG DC MOTOR 36V 250W 6B
Rear Hub
F: ALLOY 9x100mm 36H 6B / R: BAFANG DC MOTOR 36V 250W 6B
Rims
ALLOY DOUBLE WALL H:18mm W: 21mm 622-18 36H FOR TYRE 622-20/54
Spokes
F: 14G STAINLESS NDS:284mm DS:286mm W/ 12mm BRASS NIPPLE / R: 13G STAINLESS NDS:248mm DS:248mm W/ 13mm BRASS NIPPLE
Tires
URBAN EXPLORE TIRE 700X45C
Brakes
Brakes
HYDRAULIC DISC BRAKE
Brake Levers
HYDRAULIC DISC BRAKE
Cockpit
Handlebar
POLYGON SPORT, W: 680mm, BB: 31.8mm, B: 6degree
Headset
TOKEN TK-1566RZM, ZS 56/28.6 | ZS 56/30
Seat
Saddle
LINC EASE, STEEL ø7mm
Seatpost
POLYGON SPORT, DxL: 30.9 x 350mm
Motor & Battery
Motor
BAFANG REAR MOTOR DC MOTOR 36V 250W
Battery
GREENWAY ZZ618 520Wh LG21700 3PIN M6.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.433 mm |
| Bottom Bracket Height | 294.5 mm | 294.5 mm |
| Front Center | 655 mm | 683 mm |
| Rake | 65 mm | 65 mm |
| Trail | 39 mm | 39 mm |
| Stack | 621 mm | 630.5 mm |
| Reach | 415 mm | 440 mm |
| Top Tube Length | 593 mm | 621 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 431 mm | 470 mm |
| Head Tube Angle | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 129 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1091 mm | 1119 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 521 mm | 748 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 160 cm | 169 cm |
| Rider Max Height | 171 cm | 180 cm |
