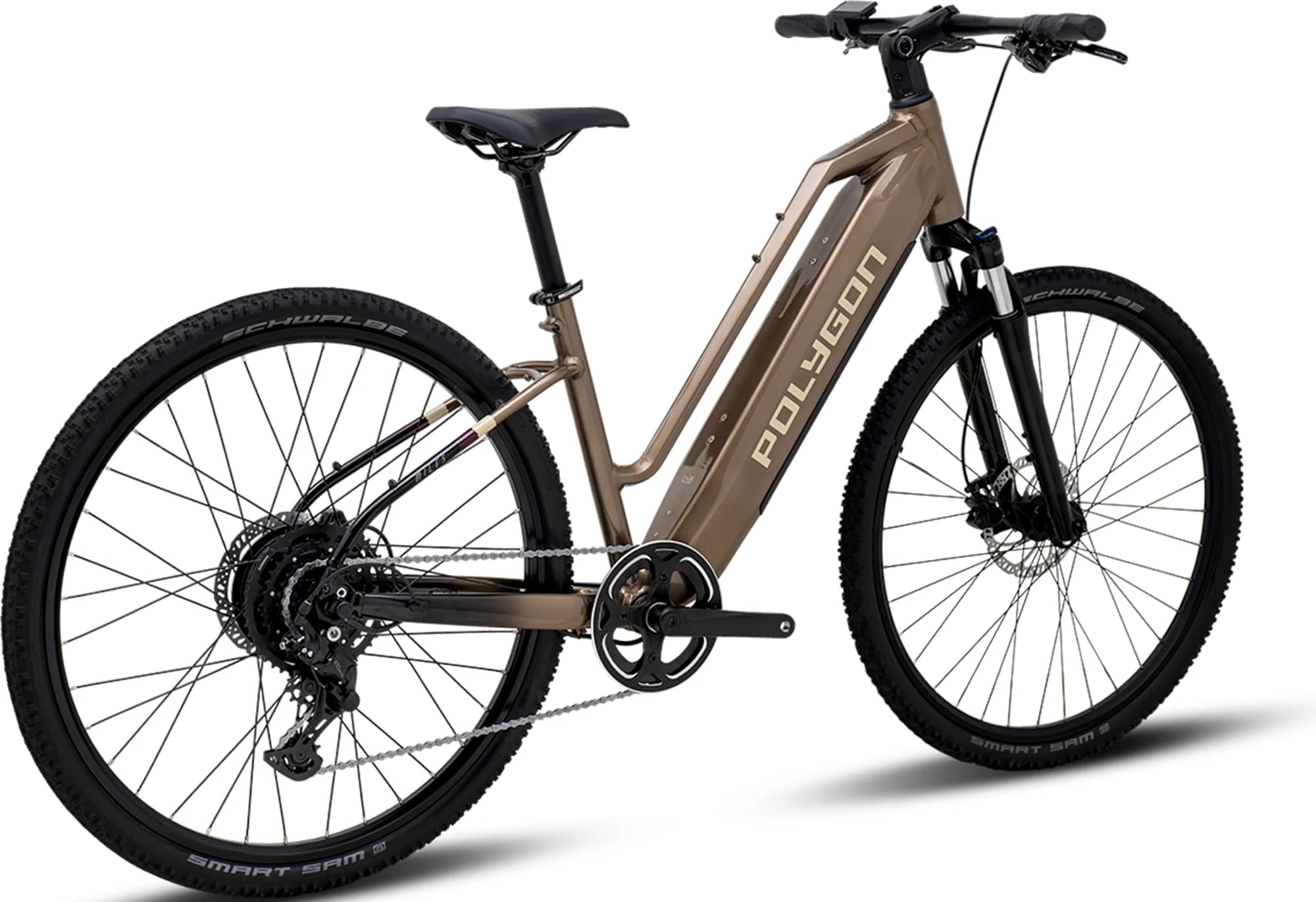

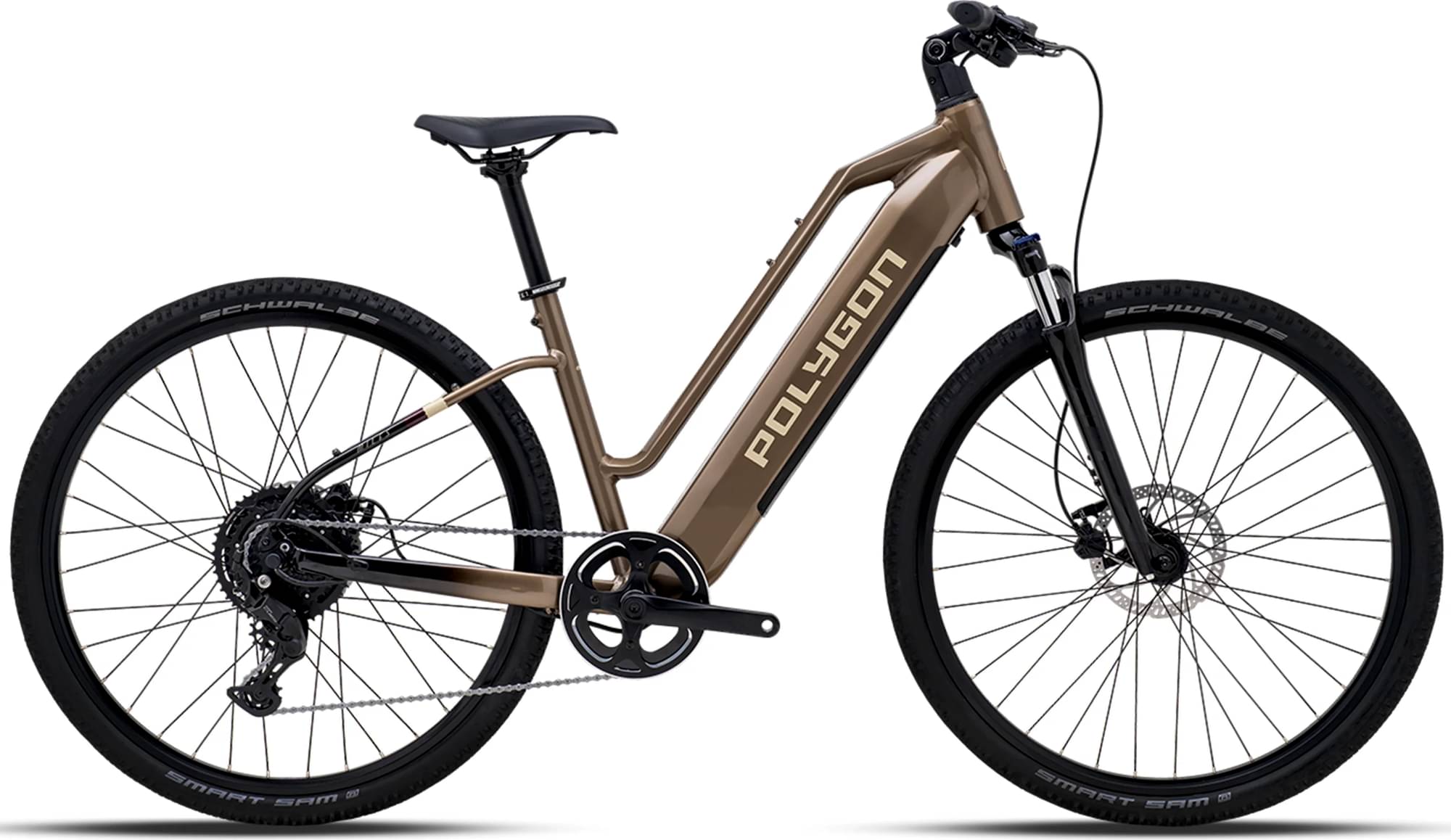

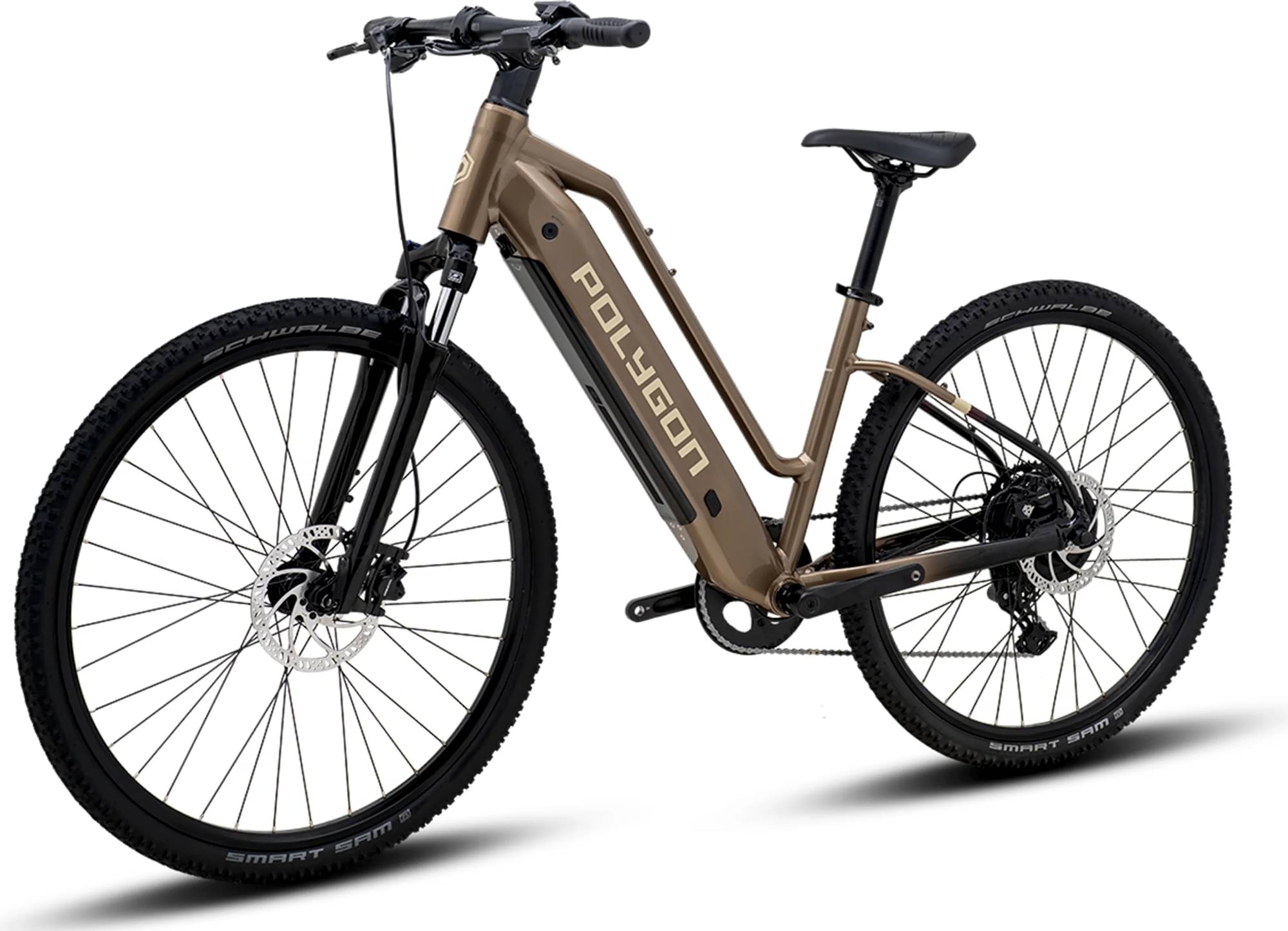

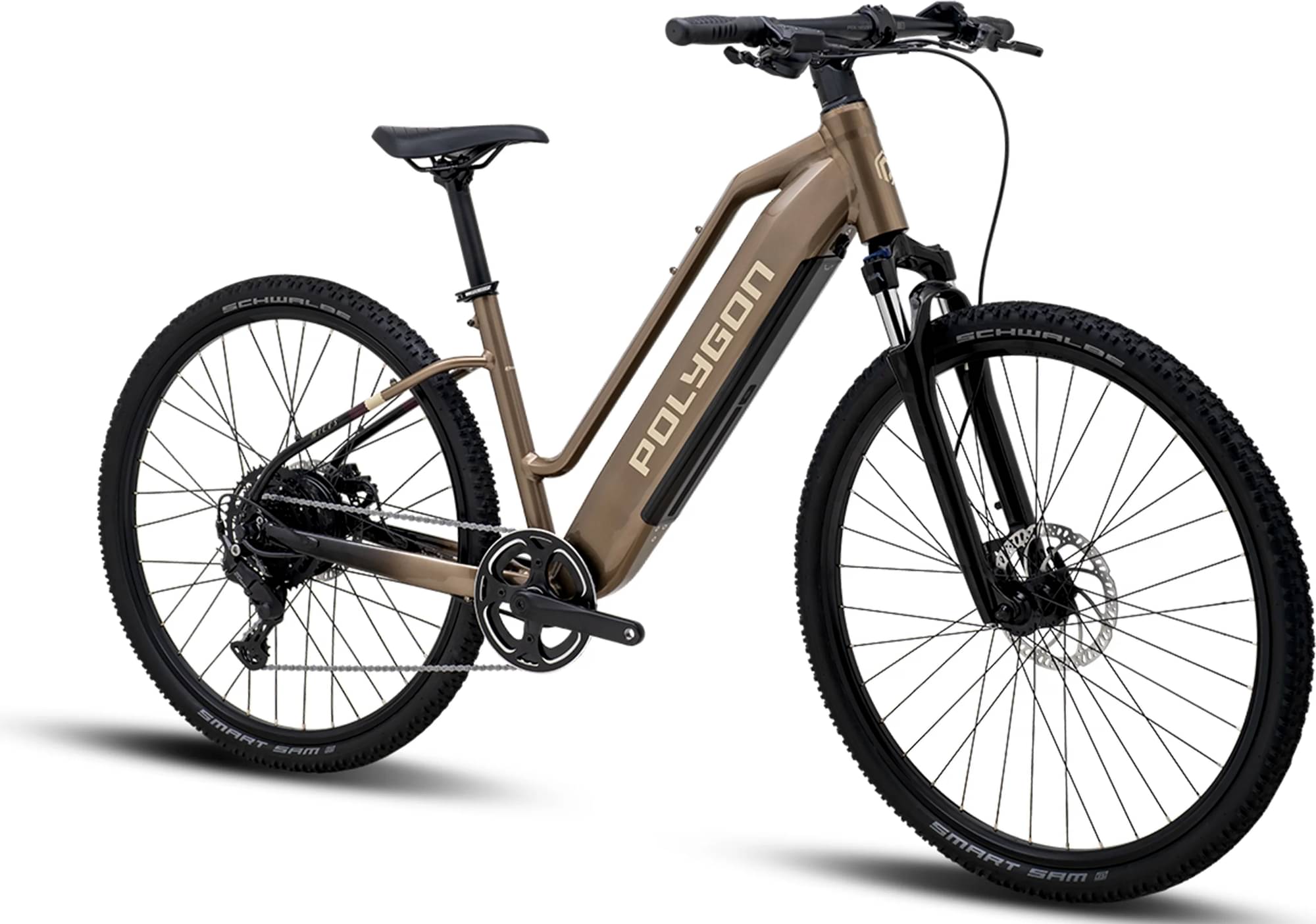

Polygon Kalosi Miles ST 2024
2024 E-bike
Estimate price |
1,443$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bafang 250W hub-drive -
Battery GreenWay ZZ618, 520Wh (36V, 14.5AH), LG 21700 Cells -
Drivetrain 1 × 9 -
Brakes Tektro Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

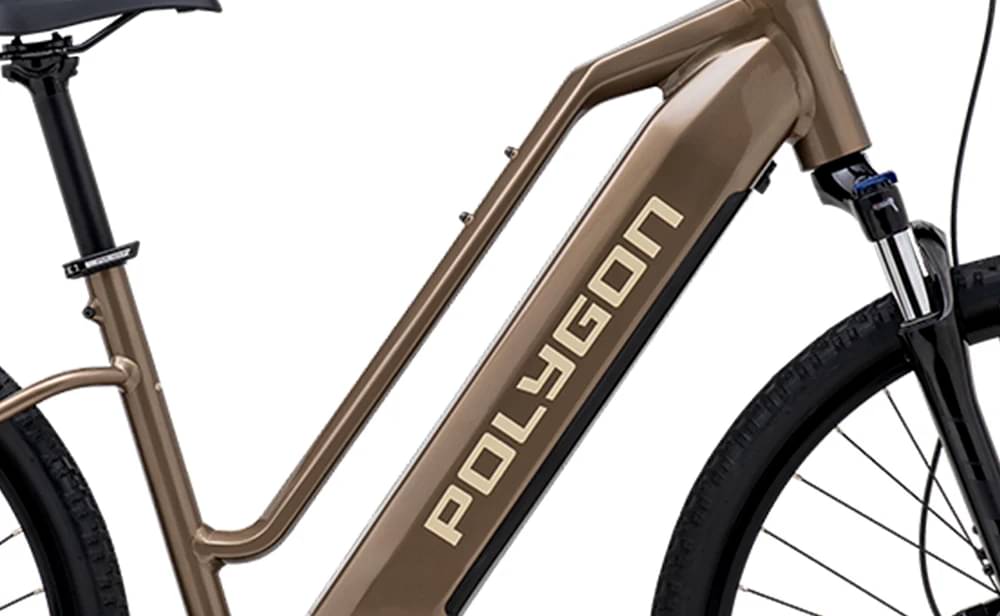

Frame
Frame
ALX Urban-Commuting Alloy, Internal Cable Routing, 10x141mm, Fender Eyelets
Suspension Fork
SR Suntour SF20-NEX, 63mm Travel

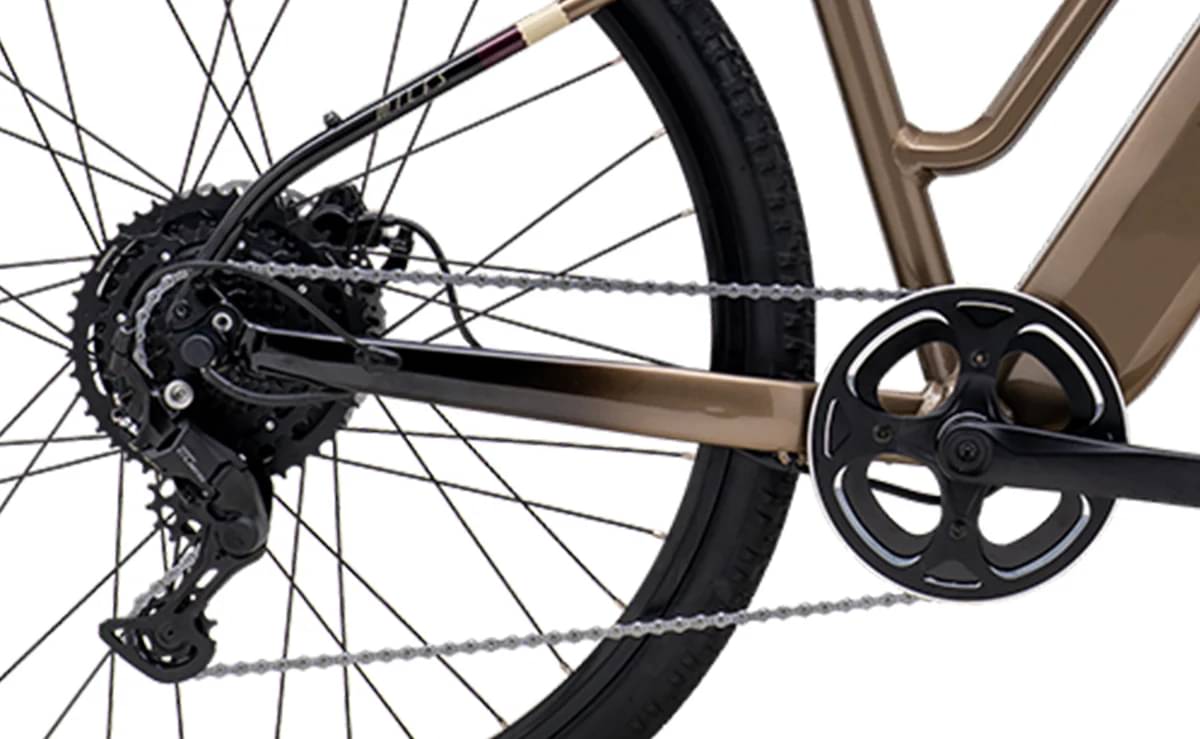

Drivetrain
Rear Derailleur
Shimano CUES RD-U4000 9-Speed
Shift Levers
Shimano CUES SL-U4010-R, 1x9-Speed Trigger
Cassette
Shimano CUES CS-LG300-9, 9-Speed, 11-46T
Crank
44T
Chain
KMC EGLIDE
Chain Guide
Single CG
Pedals
One Piece PP Flat
Wheels
Front Hub
Alloy 9x100mm, 36H, 6-Bolt

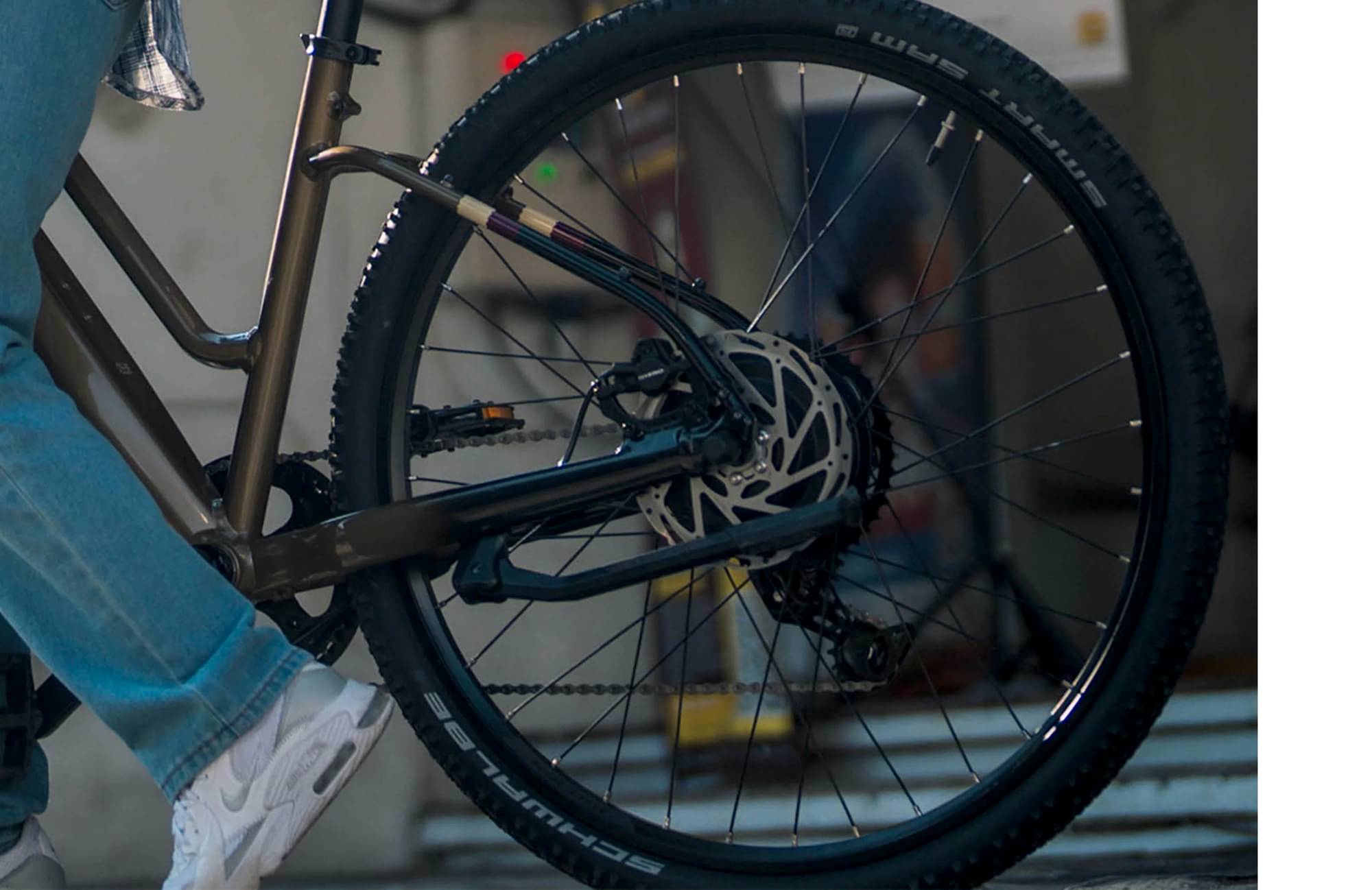

Rear Hub
Bafang Rear Hub Motor DC Motor 36V 250W, 6-Bolt
Rims
Polygon Alloy Double Wall, 21mm Internal Width, 36H

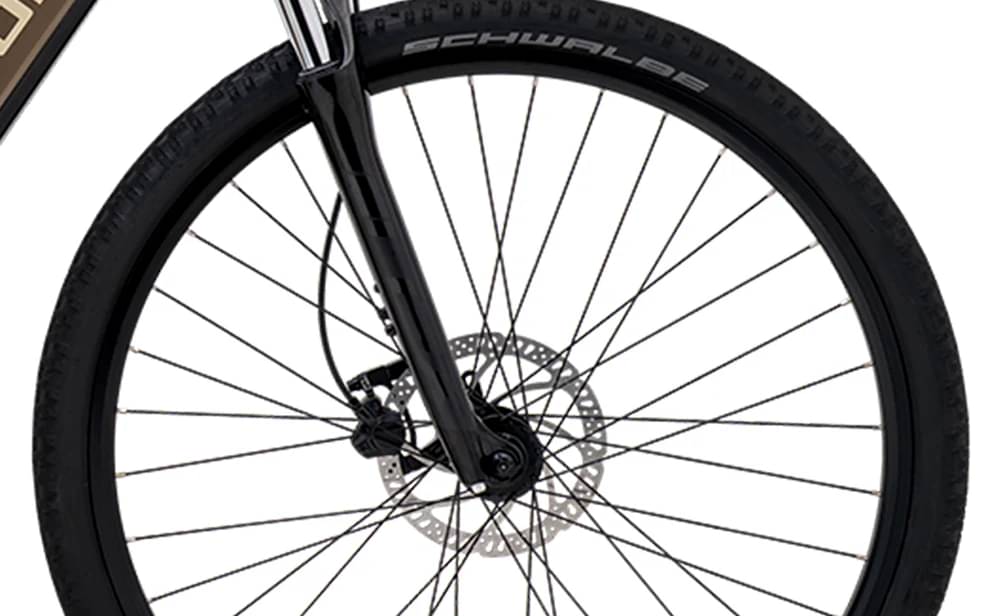

Tires
Schwalbe Smart Sam 29x1.75"
Brakes
Brakes
Front: Tektro HD-M275 Hydraulic Disc, 6-Bolt, Rear: Tektro HD-M275 Hydraulic Disc, 6-Bolt

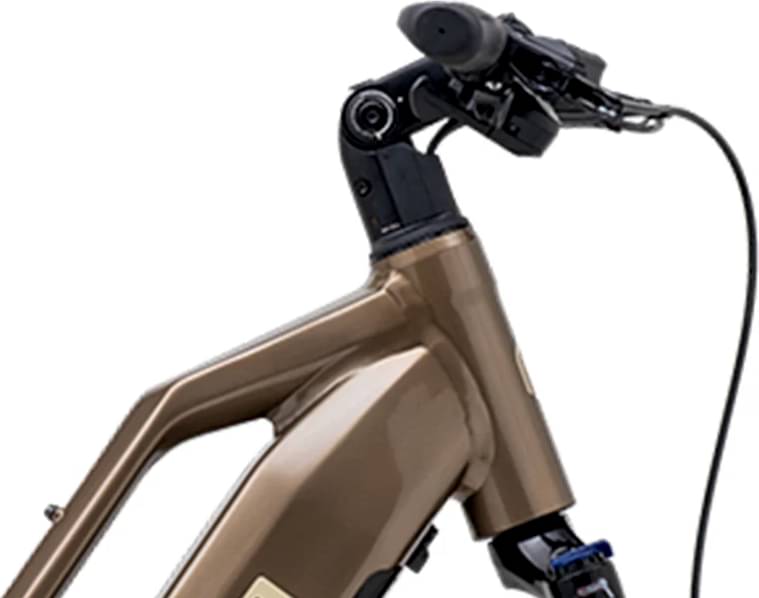

Cockpit
Stem
Polygon Sport (Adjustable), 75mm, 31.8mm Bar Bore
Handlebar
Polygon Sport, 680mm, 31.8mm Bar Bore
Grips
Polygon Sport Grips
Headset
Token TK-1566RZM

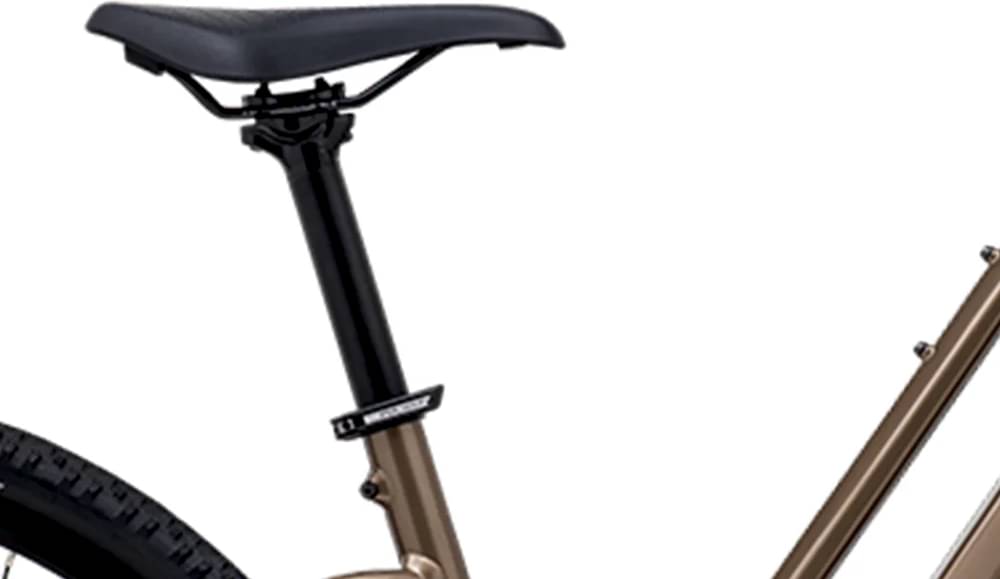

Seat
Saddle
Linc Ease E-Bike Saddle
Seatpost
Polygon Sport, 30.9 x 350mm
Motor & Battery
Motor
Bafang Rear Hub Motor DC 250W, 36V, 25km/h Speed Limit **
Battery
GreenWay ZZ618, 520Wh (36V, 14.5AH), LG 21700 Cells
Charger
Greenway Fast Charging 42V 4A, 3-Pin
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.433 mm |
| Bottom Bracket Height | 294.5 mm | 294.5 mm |
| Front Center | 655 mm | 683 mm |
| Rake | 65 mm | 65 mm |
| Trail | 39 mm | 39 mm |
| Stack | 621 mm | 630.5 mm |
| Reach | 415 mm | 440 mm |
| Top Tube Length | 593 mm | 621 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Seat Tube Length | 431 mm | 470 mm |
| Head Tube Angle | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 129 mm |
| Chainstay Length | 445 mm | 445 mm |
| Wheelbase | 1091 mm | 1119 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 521 mm | 748 mm |
| Wheels | 29" | 29" |
