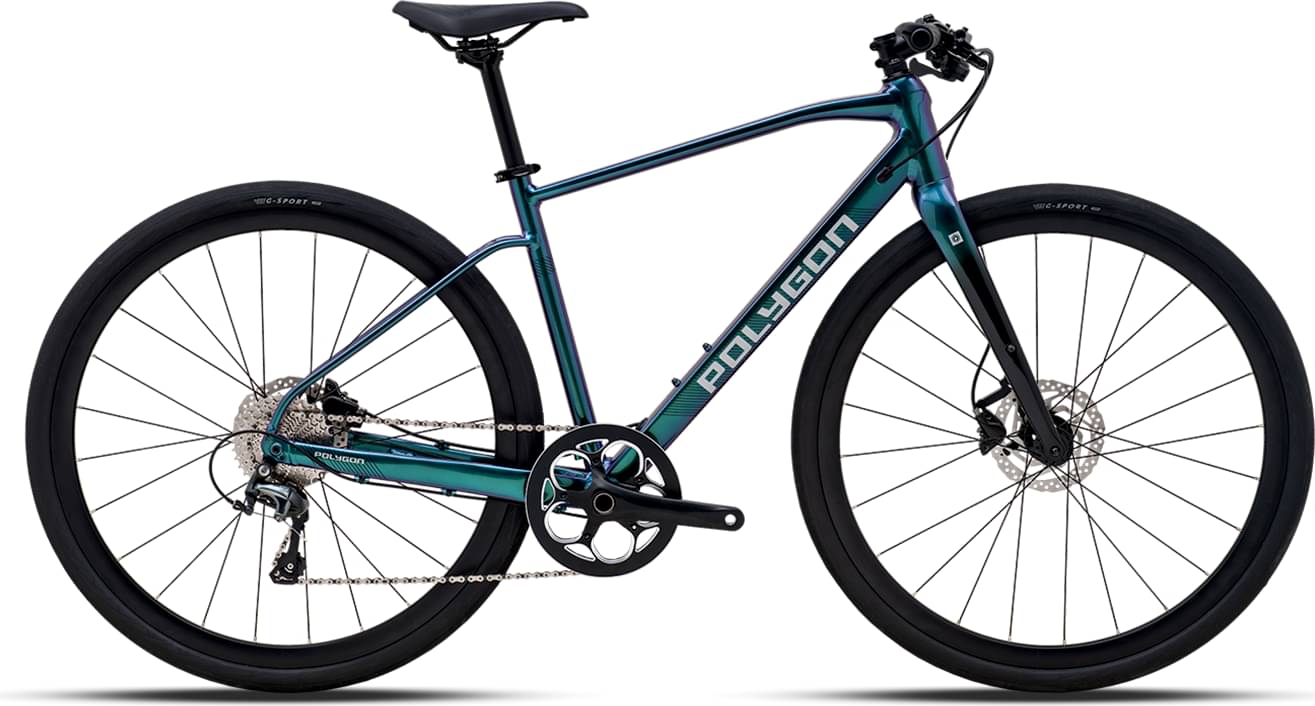

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 164cm
MD
162cm - 176cm
LG
174cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
CARBON RIGID
Drivetrain
Rear Derailleur
SHIMANO TIAGRA RD-4700
Shift Levers
SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE PLUS
Cassette
SHIMANO TIAGRA CS HG500-10
Crank
PROWHEEL OUNCE, 48T
Bottom Bracket
PROWHEEL 68mm
Chain
KMC X10
Pedals
ONE PIECE PP FLAT
Wheels
Front Hub
F: ALLOY DISC BRAKE 12x100mm 24H / R: ALLOY DISC BRAKE 12x142mm 24H CENTERLOCK FOR SPROCKET
Rear Hub
F: ALLOY DISC BRAKE 12x100mm 24H / R: ALLOY DISC BRAKE 12x142mm 24H CENTERLOCK FOR SPROCKET
Rims
ALLOY DOUBLE WALL FV H: 30 622X19 24H FOR TYRE 622-28/62 DISC
Spokes
F: STAINLESS 14G NDS:276 & DS:280 / R: STAINLESS 14G NDS:278 & DS:278
Tires
VEE GOODIE GOODIE 700x35C 622x35
Brakes
Brakes
SHIMANO BR-MT200 HYDRAULIC DISC
Brake Levers
SHIMANO BL-MT200
Cockpit
Handlebar
POLYGON EXPERT, W: 680mm, BB: 31,8mm, R/D: 0mm, B: 6 degree
Headset
FSA TH-881 W/ SEALED BEARING, IS 42/28.6 | IS 52/40
Seat
Saddle
SELLE ROYAL EASE
Seatpost
POLYGON EXPERT, DxL: 27,2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.424 mm | 1.462 mm | 1.5 mm | 1.532 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 603 mm | 623 mm | 639 mm | 658 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm |
| Stack | 541 mm | 570 mm | 600 mm | 628 mm |
| Reach | 380 mm | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 530 mm | 548 mm | 572 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 145 mm | 175 mm | 205 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1033 mm | 1053 mm | 1069 mm | 1088 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 703 mm | 735 mm | 763 mm | 793 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 162 cm | 174 cm | 187 cm |
| Rider Max Height | 164 cm | 176 cm | 189 cm | 195 cm |
